4-31 4059 Service Manual
4059-XXX
Fuser Envelope Conditioner Solenoid
The fuser solenoid is in all the models except 1250 and 1255.
1. Remove the fuser assembly.

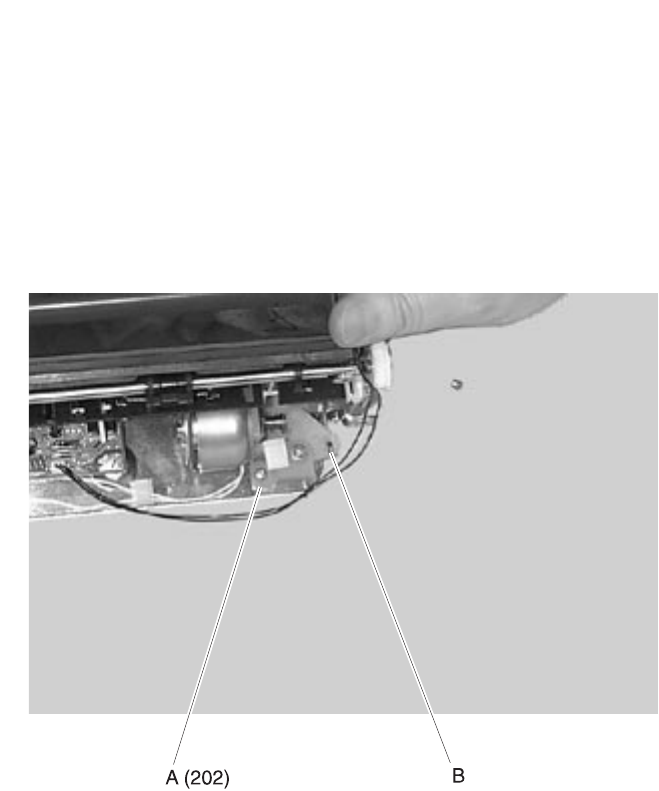

2. Remove the solenoid mounting screw (A).
3. Disconnect the solenoid link (B).
4. Remove the solenoid from the fuser assembly.
Note: Do the “Fuser Solenoid Adjustment” on page 4-3 whenever
you replace the fuser solenoid.
Fuser Exit Flag Assembly
1. Remove the fuser assembly.
2. Remove the fuser exit flag assembly.
