Repair Information 4-32
4059-XXX
Fuser Exit Roll Assembly

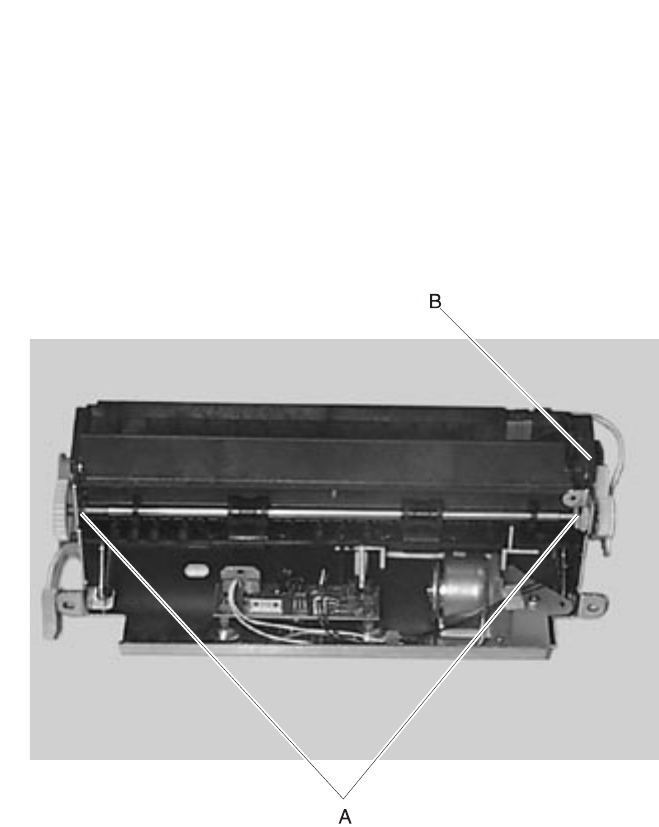

1. Remove the fuser assembly.
2. Press the exit shaft bushing retaining tabs and slide the left and
right bushings (A) toward the inside of the fuser assembly.
3. Remove the exit roll assembly from the slots in the side frame.
Note: Be sure the fuser idler gear (B) is in place and the bushing
alignment tab is rotated to the correct position in the side frame slot
as you snap each bushing in place when reinstalling the exit roll
assembly.
