4-9 4059 Service Manual
4059-XXX

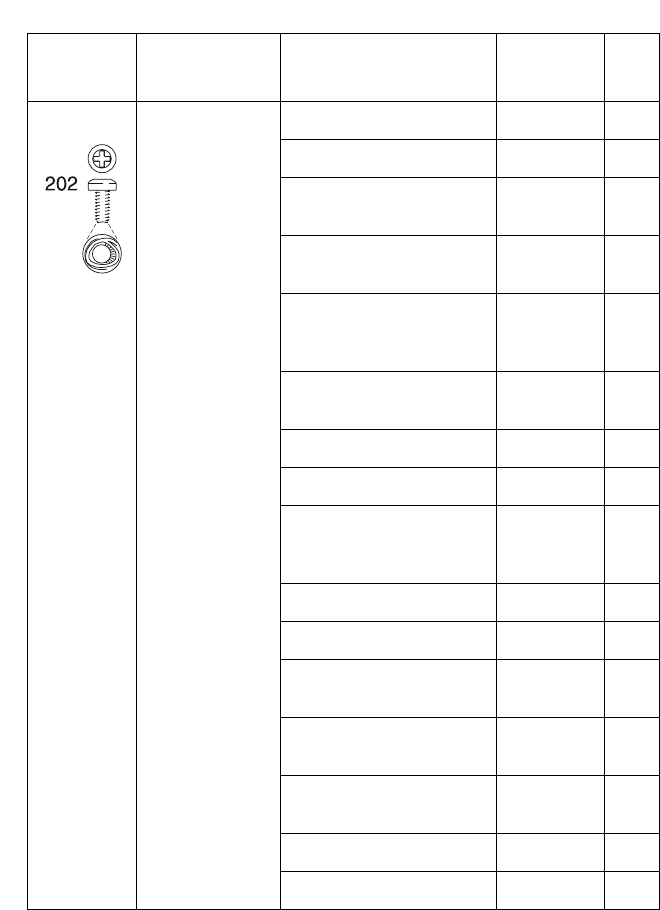

M3x6 mm
Tap ti te
outer shield mounting 6
inner redrive deflector mounting 2
interconnect board to
center pan
mounting 2
engine board
(bottom holes)
mounting 2
controller board to
interconnect board
ground
attach 2
controller board to inner
shield
mounting 2
fuser ground wire mounting 1
controller board (back) mounting 2
engine board to
interconnect shield
ground
attach 1
fuser ground wire mounting 1
lower stacker duct mounting 1
ground cables to ground
(center pan - front)
attach 1
cross brace to right
stacker duct
attach 1
cableclip(maindrive
gearbox, BTM)
mounting 2
fuser screw mounting 7
door restraint mounting 1
Reference
Number
Screw Type Location Purpose Qty
