Getting Started
Insert only the stripped portion.
Notes
• Keep the speaker cords away from the antennas to
prevent noise.
• The type of speakers supplied vary according to the
model you purchased (see “Specifications” on page
52).
2 (MHC-M500AV/M300AV only)
Connect the rear surround speakers.
Connect the speaker cords from the rear
surround speakers to the appropriate REAR
SPEAKER jacks as shown below.
R
L
+
–
Red/Solid
(3)
Black/Stripe (#)
Solid (3)
Stripe (#)
Notes
• Keep the speaker cords away from the antennas to
prevent noise.
• Do not place the rear surround speakers on top of a
TV. This may cause distortion of the colors in the
TV screen.
• Be sure to connect both left and right rear surround
speakers. Otherwise, the sound will not be heard.
3 (MHC-M500AV/M300AV only)
Connect the center surround speaker.
Connect the speaker cords from the center
surround speaker to the appropriate
CENTER SPEAKER jacks as shown below.
Insert only the stripped portion.
Solid (3)
Stripe (#)
continued
Insert only the stripped portion.

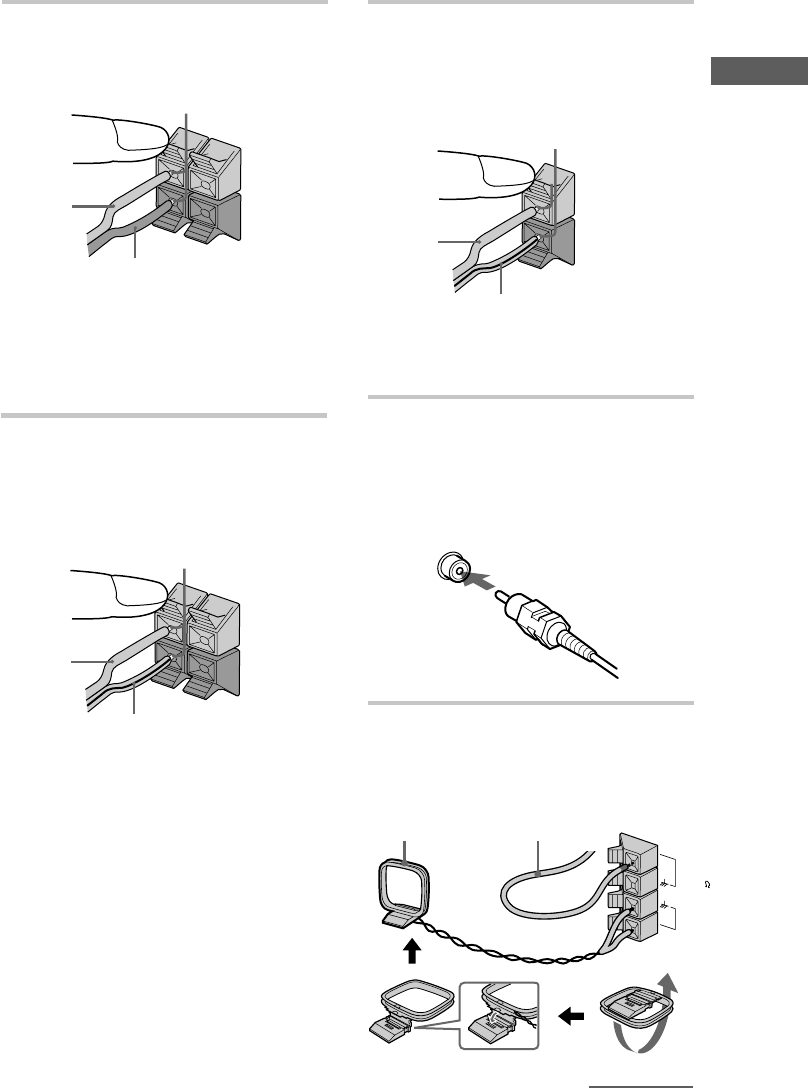

1 Connect the front speakers.
Connect the speaker cords to the SPEAKER
jacks as shown below.
R
L
+
–
Note
Keep the speaker cords away from the antennas to
prevent noise.
4 (MHC-M500AV only)
Connect the super woofer.
Connect the monaural connecting cord
extending from the super woofer to the
appropriate SUPER WOOFER jack as shown
below.
5 Connect the FM/AM antennas.
Set up the AM loop antenna, then
connect it.
FM
75
AM
AM loop antenna
Extend the
FM lead
antenna
horizontally.
