Hooking Up the Components
5.1CH/SAT Hookups
Required cords
Audio cords (not supplied)
Two for the 5.1CH/SAT FRONT and REAR jacks
Monaural audio cords (not supplied)
Two for the 5.1CH/SAT CENTER and WOOFER jacks
Black Black
Note
When using the connections described below, adjust the level of
your surround speakers, center speaker and subwoofer from the
DVD player or multichannel decoder.
Although this amplifier incorporates a multi channel
decoder, it is also equipped with 5.1CH/SAT jacks. These
connections allow you to enjoy multichannel software
encoded in formats other than Dolby Digital (AC-3) and
DTS. If your DVD player is equipped with 5.1CH
OUTPUT jacks, you can connect them directly to the
amplifier to enjoy the sound of the DVD player’s multi
channel decoder. Alternatively, the 5.1CH/SAT jacks can
be used to connect an external multi channel decoder.
To fully enjoy multi channel surround sound, you will
need five speakers (two front speakers, two rear speakers,
and a center speaker) and a subwoofer. Refer to the
instruction manual supplied with your DVD player, multi
channel decoder, etc., for details on the 5.1 channel input
hookups.

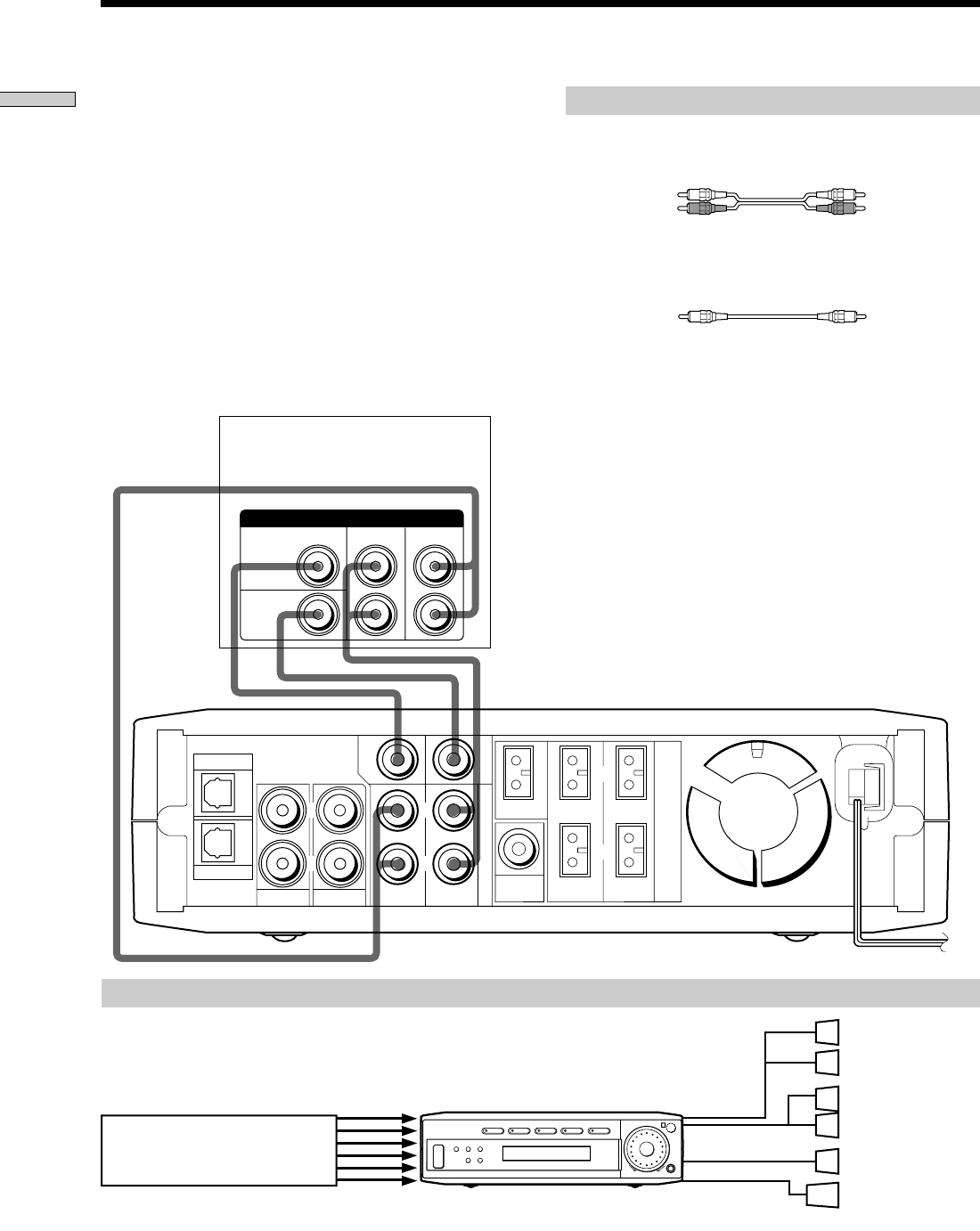

Example of a DVD player hookup using the 5.1 CH/SAT jacks
Note
See page 11 for details on speaker system hookup.
DVD player
Front Speaker (L)
Front Speaker (R)
Rear Speaker (L)
Rear Speaker (R)
Center Speaker
Active Woofer
DVD player,
Multichannel decoder, etc.
White (L) White (L)
Red (R) Red (R)
REAR
CENTER
WOOFER
FRONT
5.1CH OUTPUT
R
L
L
R
L
R
DVD
AUX
TV VIDEO FRONT
CENTER
WOOFER
REAR
CENTER
WOOFER
OUT
FRONT REAR
5.1CH/SAT
SPEAKERS
IMPEDANCE USE 8-16 Ω
R
?/1
5.1 CH/SAT
SUB WOOFER
SPEAKERS
REAR/CENTER
SPEAKERS
FRONT
VIDEO TV DVD AUX 5.1CH/SAT
SURR LEVEL SET UP
+–
SOUND FIELD MODE
MASTER VOLUME
–+
