Hooking Up and Setting Up the Speaker System
Front speaker (R)
Front speaker (L)
Center speaker
Active sub woofer
Rear speaker (R)
Rear speaker (L)
Terminals for connecting the speakers
Connect the To the
Front speakers (8 ohm) SPEAKERS FRONT terminals
Rear speakers (8 ohm) SPEAKERS REAR terminals
Center speaker (8 ohm) SPEAKERS CENTER terminals
Active sub woofer WOOFER OUT jack

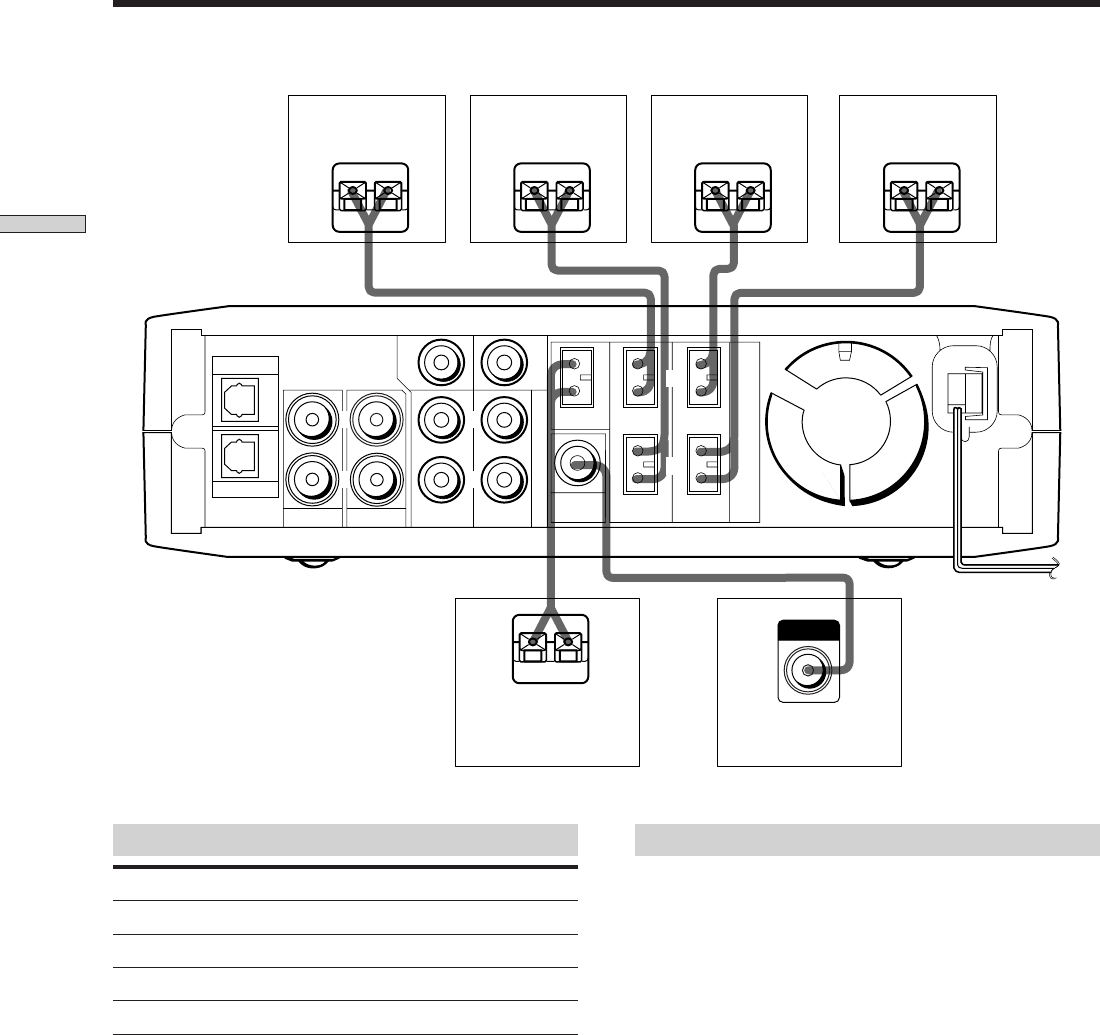

Speaker System Hookup
}
]
}
]
}
]
}
]
}
]
INPUT
R
L
L
R
L
R
DVD
AUX
TV VIDEO FRONT
CENTER
WOOFER
REAR
CENTER
WOOFER
OUT
FRONT REAR
5.1CH/SAT
SPEAKERS
IMPEDANCE USE 8-16 Ω
Notes on speaker system hookup
• Make sure the plus (+) and the minus (–) terminals on
the speakers are matched to the corresponding plus (+)
and minus (–) terminals on the speaker plugs.
• Make sure all connections are firm. Contact between
bare speaker wires at the speaker terminals may cause a
short-circuit.
Tip
All striped wires are plus (+) in polarity, and should be connected
to the plus (+) speaker terminals.
