18
GB

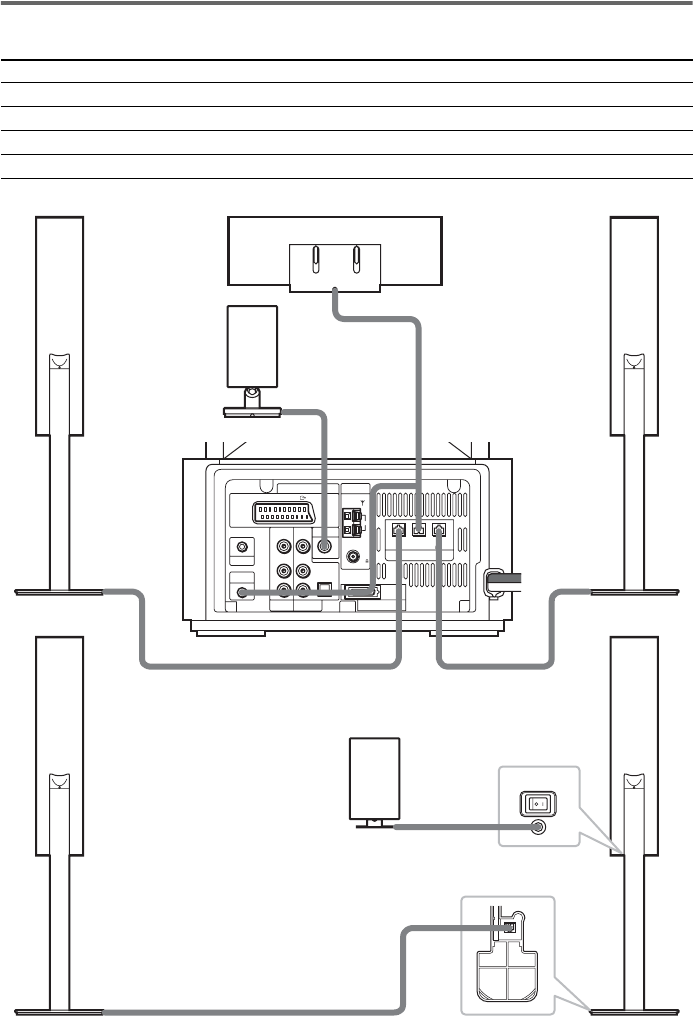

Terminals for connecting the speakers
Connect the To the
Front speakers SPEAKER FRONT L (white) and R (red) jacks of the system
Center speaker SPEAKER CENTER (green) jack and REMOTE CONTROL jack of the system
Surround speaker (R) SPEAKER SURR R (gray) jack of the surround speaker (L)
IR transmitter DIR-T1 (pink) jack of the system
POWER
DIR-R3
IN
VIDEO
OPTICAL
DIGITAL IN
IN
VIDEO DIR-T1
FM
75
COAXIAL
AM
IN
LL
AUDIO
R
R
IN
AUDIO
FRONT R
CENTER FRONT L
EURO AV ANTENNA
OUTPUT(TO TV)
IMPEDANCE USE 4
SPEAKER
SAT
SYSYTEM CONNECTOR
VIDEO
PHONES
REMOTE
CONTROL
Front speaker (R)
Center speaker
Front speaker (L)
Surround
speaker (R)
Subwoofer
Surround
speaker (L)
with IR receiver
IR transmitter
IR receiver
Use when you do not
use the IR receiver of
the surround speaker
(L) (page 32).
