Guide to Parts and Controls
For more information, see the pages indicated in parentheses.

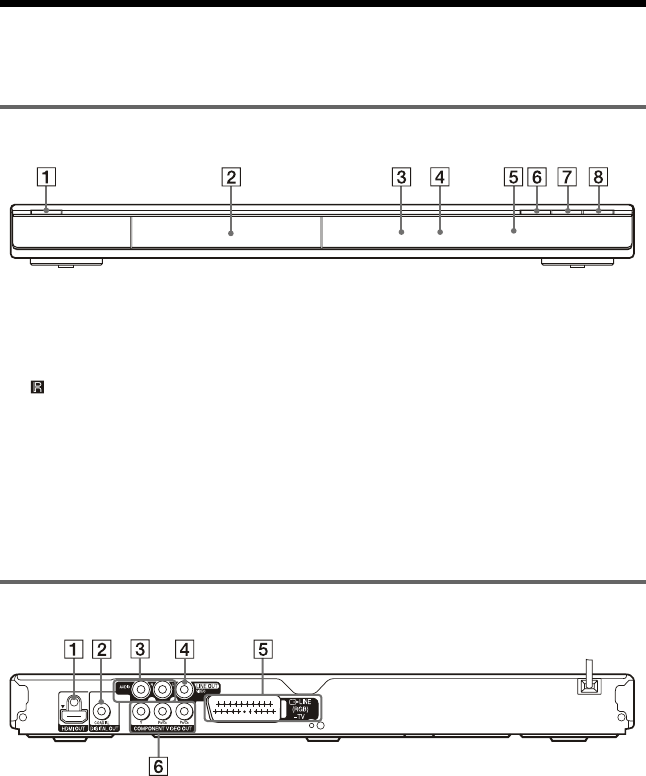

Front panel
A [/1 (on/standby) button (24)
B Disc tray (24)
C Front panel display (9)
D (remote sensor) (20)
E HDMI* (High-Definition Multimedia
Interface) indicator (16, 62, 63)
Lights up when the HDMI OUT jack is
correctly connected to a HDCP (High-
bandwidth Digital Content Protection)
compliant device with HDMI or DVI
(Digital Visual Interface) input.
F Z (open/close) button (24)
G N (play) button (24)
H x (stop) button (25)
* This DVD player incorporates High-Definition
Multimedia Interface (HDMI™) technology.
“HDMI, the HDMI logo and High-Definition
Multimedia Interface are trademarks or registered
trademarks of HDMI Licensing LLC.”
Rear panel
A HDMI OUT (High-Definition
Multimedia Interface out) jack (15)
B DIGITAL OUT (COAXIAL) jack (18)
C LINE OUT L/R (AUDIO) jacks (18)
D LINE OUT (VIDEO) jack (15)
E LINE (RGB) - TV jack (15)
F COMPONENT VIDEO OUT jacks
(15)
HDMI
L
CENTER
