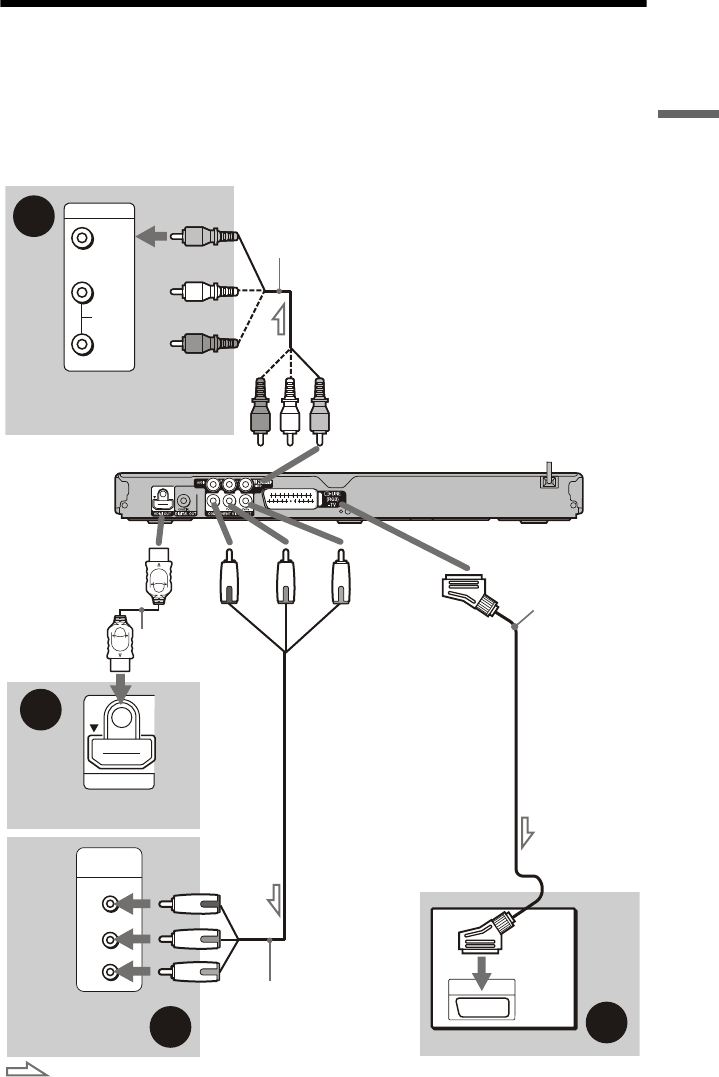

Step 2: Connecting the Video Cords/HDMI Cords
Connect this player to your TV monitor, projector, or audio component such as an AV amplifier
(receiver) using a video cord. Select one of the patterns A through D, according to the input
jack on your TV monitor, projector, or audio component.
In order to view progressive signal (525p or 625p) pictures with a compatible TV, projector, or
monitor, you must use pattern C. Select pattern B when connecting to a TV, projector, or audio
component equipped with HDMI input.
L
CENTER
A
VIDEO
AUDIO
INPUT
L
R
C
PR/CR
PB/CB
Y
COMPONENT
VIDEO IN
D
B
INPUT
HDMI IN
Audio/video cord
(supplied)
Component video
cord (not supplied)
(yellow)
TV, projector, or
audio component
(green)
TV, projector, or
audio component
(red)
(blue)
(green)
(blue)
(red)
to LINE OUT (VIDEO)
to LINE
(RGB)-TV
TV
CD/DVD player
to COMPONENT
VIDEO OUT
SCART cord
(not supplied)
(yellow)
to HDMI OUT
HDMI cord
(not supplied)
TV, projector, or
audio component
: Signal flow
,continued
