Getting Started
7: Calibrating the
appropriate settings
automatically
(AUTO CALIBRATION)
This receiver is equipped with D.C.A.C.
(Digital Cinema Auto Calibration)
Technology which allows you to perform
automatic calibration as follows:
• Check the connection between each speaker
and the receiver.
• Adjust the speaker level.
• Measure the distance of each speaker to your
listening position.
You can also adjust the speaker levels and
balance manually. For details, see
“8: Adjusting the speaker levels and balance
(TEST TONE)” (page 34).
1 Connect the supplied ECM-AC2
optimizer microphone to the
AUTO CAL MIC jack.
2 Place the optimizer
microphone at your listening
position.
3 Place the speakers so that the
speakers are facing the
optimizer microphone.
Tips
•You can also fix the optimizer microphone to a
tripod (not supplied) and place the tripod at your
listening position.
•Be sure to remove any obstacles in the path
between the optimizer microphone and the
speakers.
•When you face the speaker towards the optimizer
microphone, you will get a more accurate
measurement.

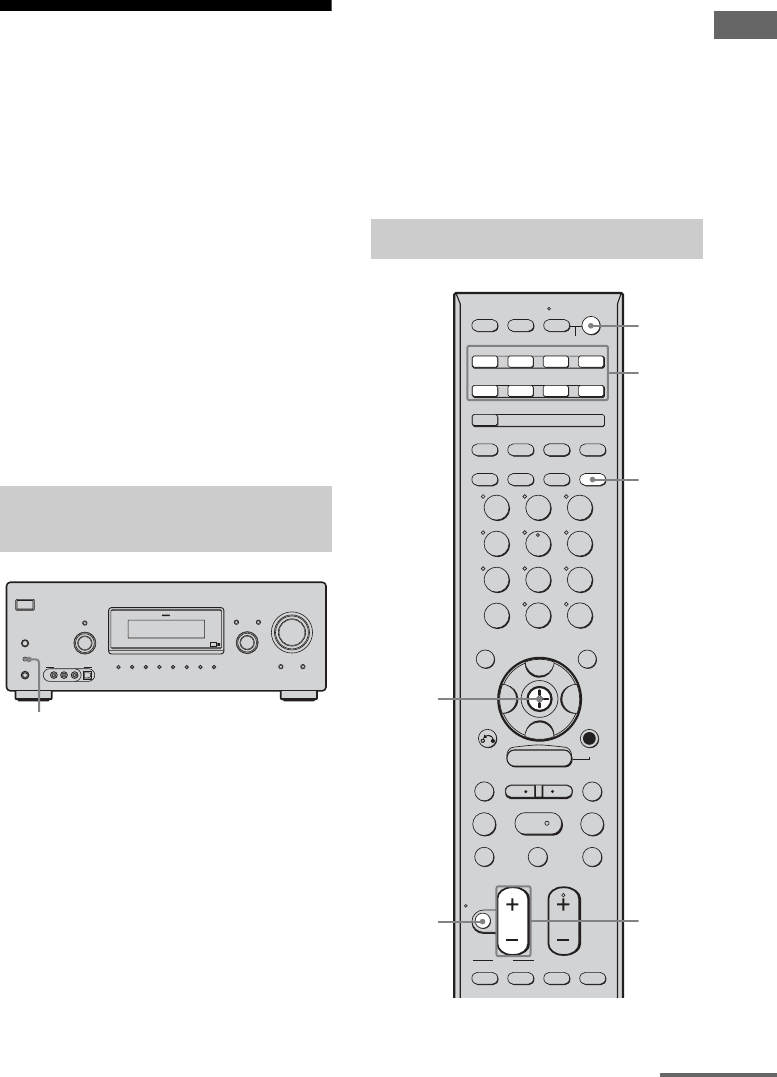

Before you perform Auto
Calibration
?/1
AUTO CAL MIC
SPEAKERS
(OFF/A/B/A+B)
PHONES
MEMORY/
ENTER
SUR BACK
DECODING
2CHSLEEPDIMMER A.F.D. MOVIE MUSIC
MULTI CHANNEL DECODING
TUNING MODE
DISPLAY INPUT MODE
INPUT SELECTOR
TUNING
–+
MULTI CH IN DIRECT
MASTER VOLUME
VIDEO 3 IN/PORTABLE AV IN
VIDEO L AUDIO R DIGITAL(OPT)
1
Performing Auto Calibration
SYSTEM STANDBY
TUNING –
DISC SKIP
MUTING
TOP MENU
MENU F1
TV/VIDEO WIDE
F2
TV VOL
MASTER VOL
TV CH
PRESET
TUNING +
DISPLAY TOOLS
RETURN/
EXIT
AMP
REPLAY ADVANCE
AV ?/1
TV
VIDEO 1 VIDEO 2 DVDVIDEO 3
MD/TAPE SA-CD/CD
AUX
MULTI CH
2CH A.F.D. MOVIE MUSIC
SLEEP
FM MODE D. TUNING AUTO CAL
TUNER
RM SET UP
?/1
MEMORY
.
>
m
M
xX
B
B
V
v
MENU
H
3
CLEAR
>10
–
/
–
–
<
<
DVD
12
45
78
6
9
ENTER
0/10
AUTO
CAL
Control
button
Input
buttons
?/1
switch
MUTING
MASTER
VOL +/–
