22
GB
C:\Documents and Settings\pc13\Desktop\Revision1_STR-
DG700\JC060000_2680065112DG700_GB\2680065111\GB03CON_STR-DG700-CEL.fm
masterpage: Left
STR-DG700
2-680-065-11 (2)
The image from a visual component connected
to this receiver can be displayed on a TV
screen.
It is not necessary to connect all the cables.
Connect video cords according to the jacks of
your components.
Notes
•Connect image display components such as a TV
monitor or a projector to the MONITOR OUT jack
on the receiver.
• Turn on the receiver when the video and audio of a
playback component are being output to a TV via
the receiver. If the power supply of the receiver is
not turned on, neither video nor audio is
transmitted.
Tip
You can watch the selected input image when you
connect the MONITOR OUT jack to a TV monitor.

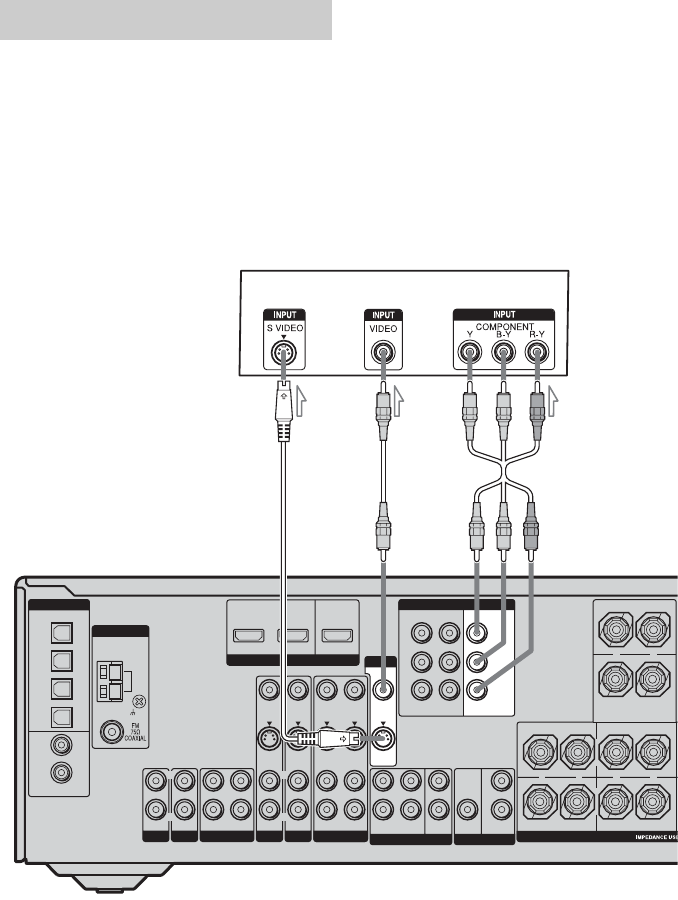

Hooking up a TV monitor
DIGITAL
VIDEO 1
IN
VIDEO 2
IN
MD/
TAPE
IN
MD/
TAPE
OUT
DVD
IN
SA-CD/
CD
IN
COAXIAL
OPTICAL
ANTENNA
AM
HDMI
DVD IN
ASSIGNABLE
VIDEO 2 IN
MONITOR OUT
L
R
AUDIO IN
VIDEO IN
DVD
AUDIO IN
S-VIDEO
IN
VIDEO IN
VIDEO 2
AUDIO IN
S-VIDEO
IN
VIDEO OUT
VIDEO 1
AUDIO OUT
S-VIDEO
OUT
VIDEO IN
S-VIDEO
IN
L
R
SA-CD
/
CD
MD/TAPE
OUT
L
R
IN
IN
AUX
IN
L
R
VIDEO OUT
S-VIDEO
OUT
SURROUND BACK
CENTER
+
–
SURROUND FRONT A
R
R
L
L
+
–
+
–
SPEAKERS
SUB
WOOFER
SURROUND
PRE OUT
L
R
SURROUND
SUB
WOOFER
CENTER
FRONT
L
R
MULTI CH IN
DVD
IN
VIDEO 2
IN
MONITOR
OUT
ASSIGNABLE
P
R
/C
R
/R–Y
MONITOR
COMPONENT VIDEO
Y
P
B
/C
B
/B–Y
TV monitor
BA
AS-video cord (not supplied)
BVideo cord (not supplied)
CComponent video cord (not supplied)
C
