Getting Started – BASIC –
This hookup is the basic connection of the system to the speakers and TV. For other TV connections,
see page 24. For other component connection, see page 28.
To accept progressive signals, see page 26.

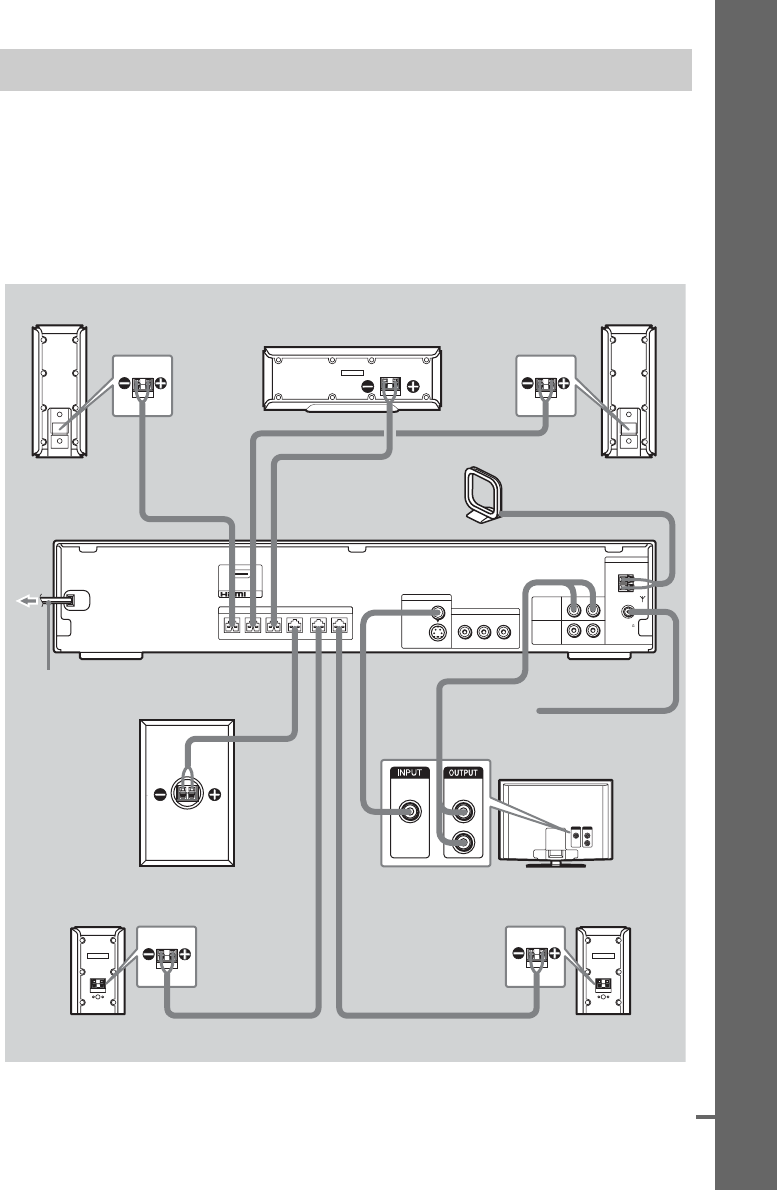

Refer to the connection diagram below, and read the additional information from 1 to 4 on the
following pages.
DAV-DX355
Step 2: Connecting the System and TV
R
AUDIO
OUT
L
VIDEO
IN
COAXIAL
AM
FM
75
SPEAKER
FRONT R FRONT L SUR R SUR LCENTER WOOFER
COMPONENT VIDEO OUT
TV
VCR
MONITOR OUT
ANTENNA
(DVD ONLY)
YP
B
/C
B
P
R
/C
R
RLAUDIO IN
RLAUDIO IN
VIDEO
(DVD ONLY)
S VIDEO
OUT
(DVD ONLY)
AM loop antenna (aerial)
Subwoofer
AC power cord (mains lead)
FM wire antenna
(aerial)
TV
Front speaker (R)
Center speaker
Front speaker (L)
Surround speaker (L)Surround speaker (R)
AB
