30
GB
You can enjoy other component by connecting the VIDEO/AUDIO OUT jacks of another component.
• If you connect a TV to the VIDEO jacks in Step 3 (page 26), you cannot connect other components to the system.
(you can connect other components with the coaxial cable (not supplied) to the COAXIAL DIGITAL IN jack
(page 31)).

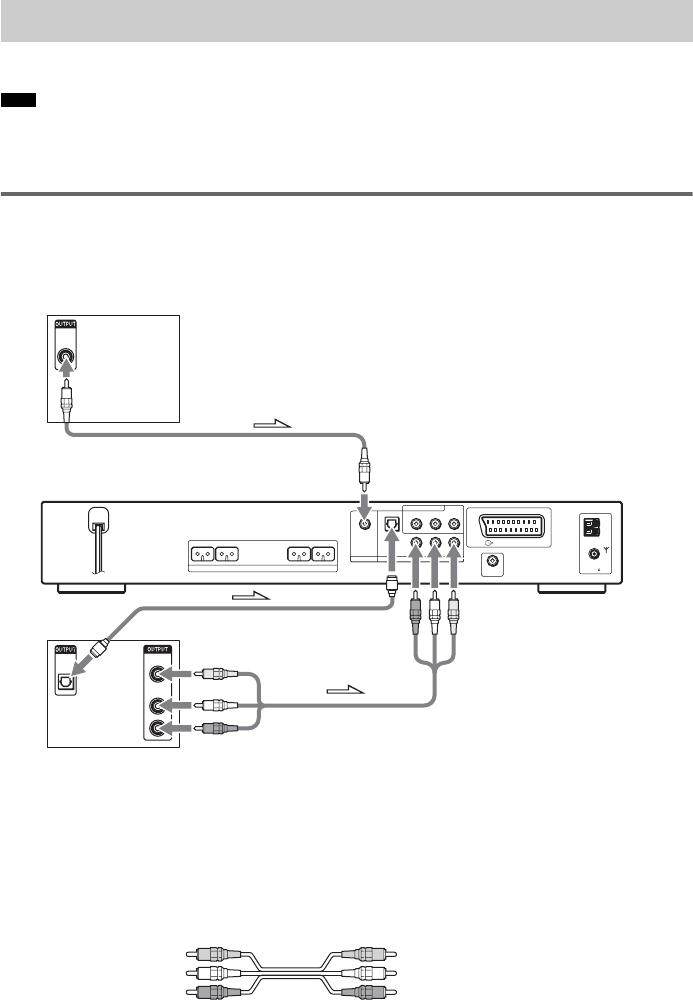

Connecting the system and the other component
Outputs the other component through the speakers of this system.
To connect the VIDEO/AUDIO OUT jacks of other component to the
VIDEO (VIDEO/AUDIO IN) jacks of this system
Connect the VCR or other components to the VIDEO (VIDEO/AUDIO IN) jacks using the video/audio
cord (not supplied). When connecting a cord, be sure to match the color-coded sleeves to the
appropriate jacks on the components.
Step 4: Other Component Hookup
Note
R
AUDIO
OUT
L
VIDEO
OUT
COAXIAL
DIGITAL
OUT
OPTICAL
DIGITAL
OUT
SPEAKER
COAXIAL
FM
75
Y
RAUDIO IN VIDEO INL
P
B
/C
B
P
R
/C
R
DVD ONLY
SAT VIDEO
DIR-T1
COMPONENT VIDEO OUT
EURO AV
OUTPUT(TO TV)
AM
FRONT R FRONT L CENTER WOOFER
DIGITAL IN
OPTICAL
DIGITAL IN
COAXIAL
Digital satellite receiver or
PlayStation 2, etc.
To SAT
(COAXIAL DIGITAL IN)
VCR, Digital satellite receiver
or PlayStation 2, etc.
To VIDEO
(VIDEO/AUDIO IN)
To VIDEO
(OPTICAL DIGITAL IN)
Yellow (Video)
White (L/audio)
Red (R/audio)
