51
First Time Setup—Continued
If you connect a component to a digital input jack, you
must assign that jack to an input selector. For example, if
you connect your CD player to the OPTICAL IN2 jack,
you should assign that jack to the CD input selector. By
default, the COAXIAL IN1 jack is assigned to the DVD
input selector, although this can be changed.
Here are the default assignments.
When HDMI IN 1, 2 or 3 is assigned to an input selector
in the “HDMI Input Setup” on page 48, the input selec-
tor assignment on this page is automatically set to HDMI
1, HDMI 2 or HDMI 3.
Notes:
• This procedure can also be performed on the AV
receiver/AV amplifier by using its [SETUP] button,
arrow buttons, and [ENTER] button.
• This procedure can also be performed on the AV
receiver/AV amplifier by using its input selector but-
ton and [DIGITAL INPUT] button. First Press the
input selector button for the source that you want to
assign. Press the [DIGITAL INPUT] button repeat-
edly to select COAX1, COAX2, COAX3, OPT1,
OPT2, or - - - (analog).

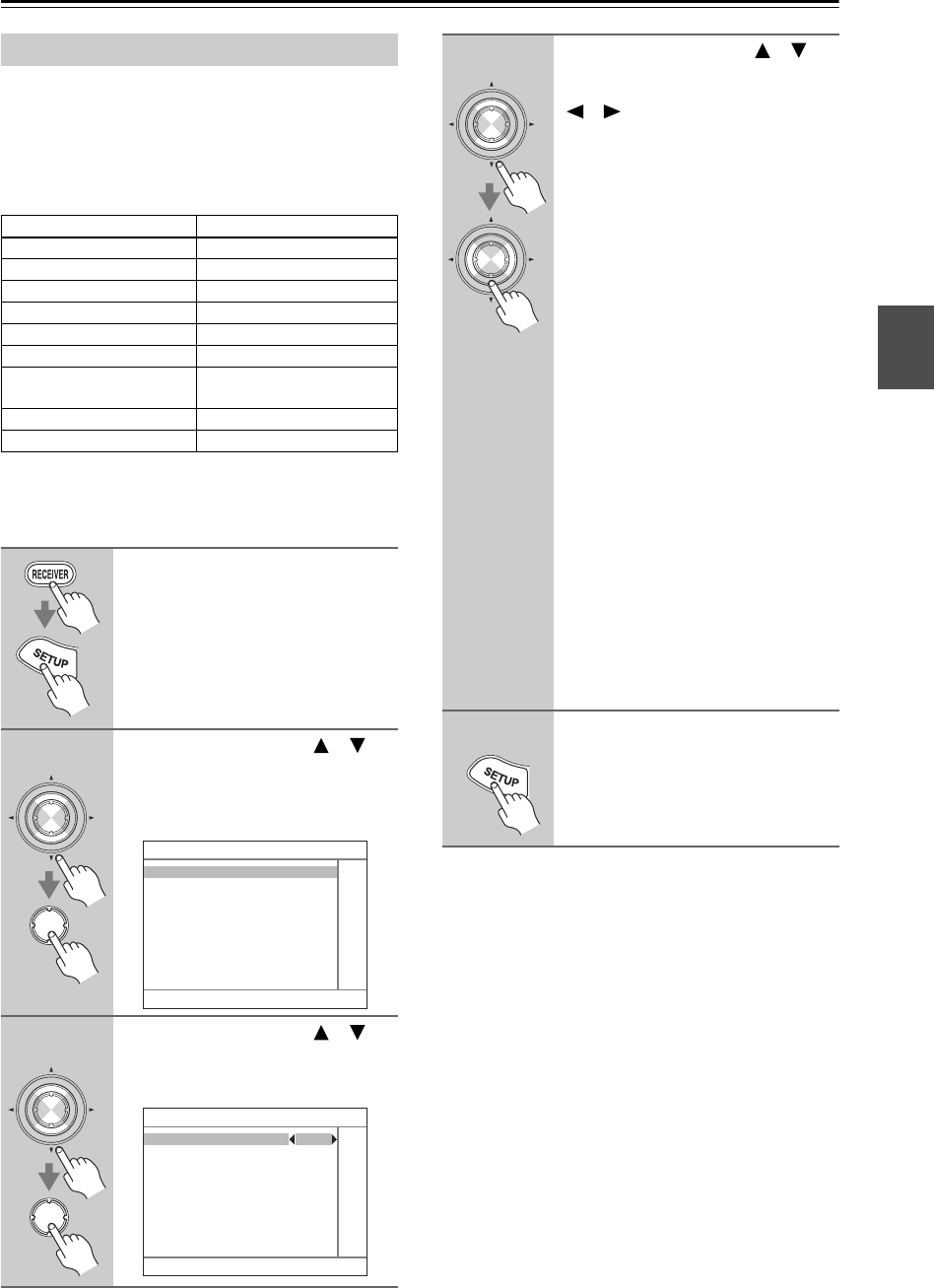

Digital Input Setup
Input selector Default assignment
DVD COAX 1
VCR/DVR COAX 2
CBL/SAT COAX 3
GAME/TV OPT 1
AUX FRONT
TAPE - - -
TUNER
(TX-SA705 only)
---
CD OPT 2
PHONO - - -
1
Press the [RECEIVER] button fol-
lowed by the [SETUP] button.
The main menu appears onscreen.
2
Use the Up and Down [ ]/[ ]
buttons to select “1. Input/Out-
put Assign,” and then press
[ENTER].
The Input/Output Assign menu appears.
3
Use the Up and Down [ ]/[ ]
buttons to select “4. Digital
Input,” and then press [ENTER].
The Digital Input menu appears.
ENTER
ENTER
1. Input/Output Assign
1. Monitor Out
2. HDMI Input
3. Component Video Input
4. Digital Input
ENTER
ENTER
1–4. Digital Input
DVD COAX 1
VCR/DVR COAX 2
CBL/SAT COAX 3
GAME/TV OPT 1
AUX FRONT
TAPE - - -
TUNER - - -
CD OPT 2
PHONO - - -
4
Use the Up and Down [ ]/[ ]
buttons to select an input selec-
tor, and use the Left and Right
[ ]/[ ] buttons to select
COAX 1, COAX 2, COAX 3,
OPT 1, OPT 2, or - - - (analog).
• An input selector that has been
assigned to IN 1, IN 2 or IN 3 in the
“HDMI Input Setup” (see page 48)
can be set to HDMI here.
• AUX is used only for digital input
from the front panel terminals. When
HDMI IN 1, 2 or 3 is assigned to
AUX in the “HDMI Input Setup” on
page 48, IN 1, IN 2 or IN 3 can be
selected.
Examples:
If you connect your DVD player to the
OPTICAL IN 1 jack, set “DVD” to
“OPT 1.”
If you want to listen to audio from the
component connected to the OPTICAL
IN 2 jack when the VCR/DVR input
selector is selected, set “VCR/DVR” to
“OPT 2.”
If you want to listen to audio from the
component connected to the COAX-
IAL IN 1 jack when the CBL/SAT
input selector is selected, set “CBL/
SAT” to “COAX 1.”
For input selectors that you don’t want
to assign a digital input jack, set to
“- - - (analog).”
5
Press the [SETUP] button.
The Setup menu closes.
ENTER
ENTER
