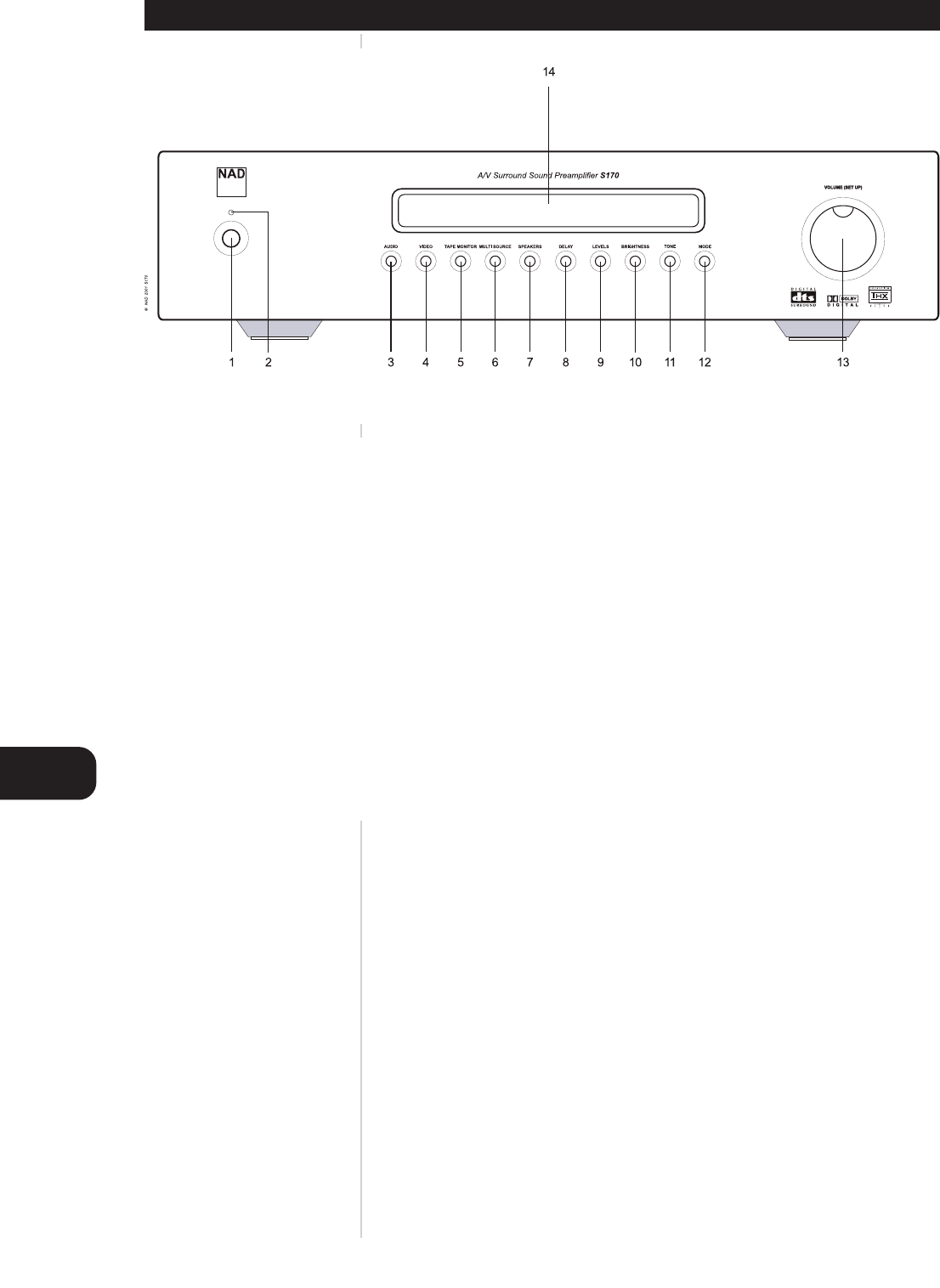

FRONT PANEL
1 POWER: Switch off to disconnect the S170 from all AC power and
exit the Standby mode. Switching POWER on both reconnects the AC
and actively power-up the preamp.
2STANDBY: Illuminates when the S170 is in the Standby mode (dark
when preamp is on, or powered-off).
3 AUDIO: Press to select audio inputs sequentially using the VOLUME
(SETUP) knob (see "Front Panel Operations," below).
4 VIDEO: Press to select audio inputs sequentially using the VOLUME
(SETUP) knob (see "Front Panel Operations," below).
5TAPE MONITOR: Press to engage the Tape Monitor loop. The signal
present at the rear-panel TAPE MONITOR IN jacks will be heard (see
"Front Panel Operations," below).
6 MULTISOURCE: Press to select the signal output by the rear-panel
MULTISOURCE OUT jacks using the VOLUME (SETUP) knob (see
"Listening in a Remote Zone," below).
7 SPEAKERS: Press to access the <Speaker setup> menu on the front-
panel readout, and to select parameters using the using the VOLUME
(SETUP) knob and subsequent presses of the SPEAKERS key (see
"Configuring Your S170," and "Front Panel Operations," below).
8 DELAY: Press to access the <Delay setup> menu on the front-panel
readout, and to select parameters using the using the VOLUME
(SETUP) knob and subsequent presses of the DELAY key (see
"Configuring Your S170," and "Front Panel Operations," below).
9 LEVELS : Press to access the <Levels setup> menu on the front-panel
readout, and to select parameters using the using the VOLUME
(SETUP) knob and subsequent presses of the LEVELS key (see
"Configuring Your S170," and "Front Panel Operations," below).
10 BRIGHTNESS: Press to dim the S170's front-panel readout; press
again to restore full brightness.
11 TONE: Press to adjust treble using the VOLUME (SETUP) knob; press
again to adjust bass, and a third time to exit tone-control adjustment.
12 MODE: Press to select listening modes sequentially using the
VOLUME (SETUP) knob (see "Setting Listening Modes," and "Front
Panel Operations," below).
