7. SYSTEM EXAMPLES

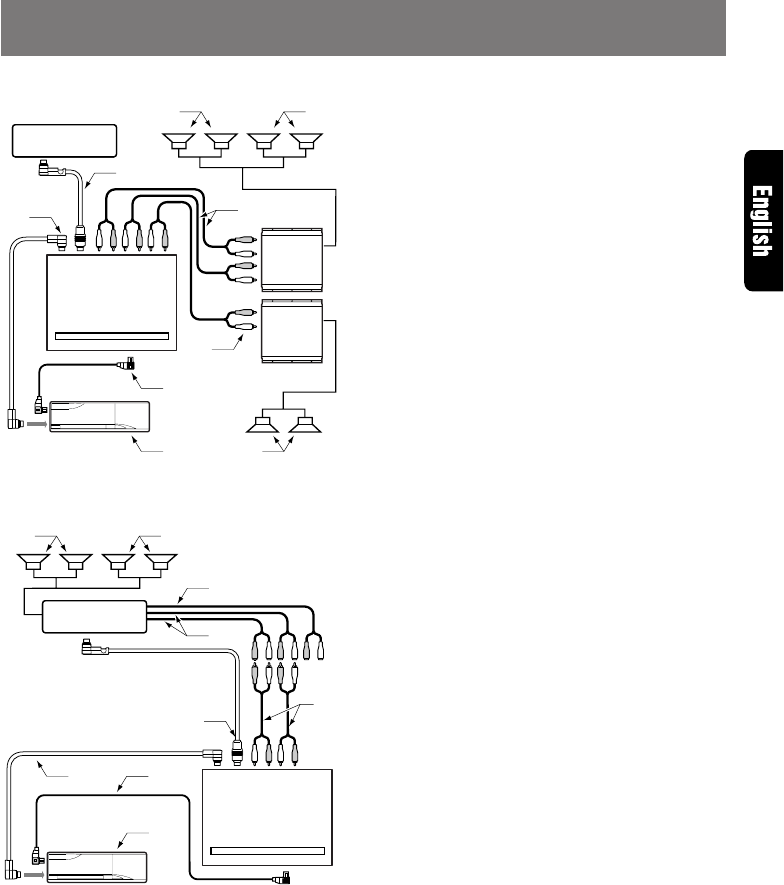

System with external power amplifier and DSP
DPH910
0!1
6
8
5
9
@
7
2
3
4
System with internal power amplifier and DSP
DPH910
0!
6
$
8
#
2
7
5
1 Source unit compatible with CeNET connec-
tion
2 CD changer compatible with CeNET connec-
tion
3 4-channel power amplifier
For connection with the front/rear speakers.
4 2-channel power amplifier
For connection with the subwoofer speakers.
5 CeNET cable (provided with the CD changer)
Using this cable, connect the DPH910 to the
CD changer.
6 CeNET cable (provided with the DPH910)
Using this cable, connect the DPH910 to the
source unit.
7 Digital optical fiber cable
Using this cable, connect the DPH910 to the
CD changer.
8 RCA cable (provided with the DPH910)
Using this cable, connect the DPH910 to the
4-channel power amplifier for the front/rear
speakers, or connect the DPH910 to the front
/rear line out terminal of the source unit.
9 RCA cable
Using this cable, connect the DPH910 to the
2-channel power amplifier for the subwoofer
speaker.
0 Front speakers
! Rear speakers
@ Subwoofer speakers
# RCA cable for front/rear line in
Connect this cable to the DPH910.
$ RCA cable for non-fader line out
This is not used for this system.
Note:
• The longest wiring length of the CeNET cable is
less than 65.62ft (20m). When you connect the
CeNET cable, be careful not to exceed the wiring
length of 65.62ft (20m).
