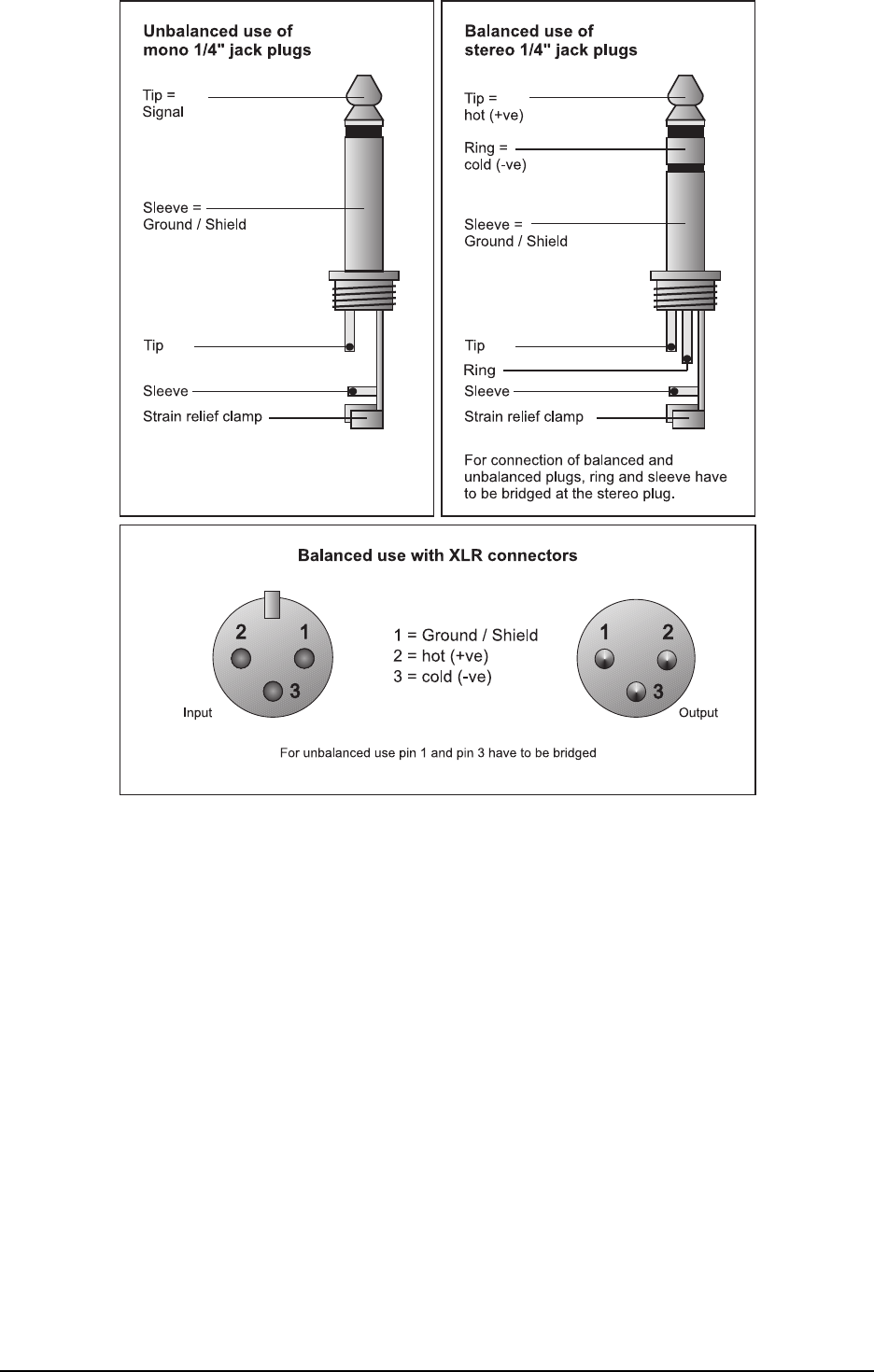

Fig. 8.3: Different plug types
5. SPECIFICATIONS
INPUT
Connectors XLR
Type Electronically servo-balanced, RF filtered
Impedance Balanced >50k Ohms, unbalanced >25k Ohms
Max. Input level +22 dBu typical, balanced or unbalanced
CMRR >40 dB, typically >55 dB at 1 kHz
OUTPUT
Connectors XLR
Type Electronically servo-balanced, RF filtered
Impedance Balanced 60 Ohms, unbalanced 30 Ohms
Max. Output Level +20 dBm balanced/unbalanced
4. INSTALLATION
