Barco PGWU-62L-K Home Theater System User Manual



18
PGWX-62L/PGWU-62L/PGWX-62L-K/PGWU-62L-K - - 2015/07/27
3. Installation
3.3 Connecting the Projector
Projection Lens P/N R9832755 R9832753 R9832754 R9832756 R9832778
Lens Type Wide Zoom
Standard
WXGA/
WUXGA
Standard
WUXGA
Long Zoom
Ultra Long
Zoom
Throw Ratio (WXGA) 1.00-1.28 1.28-1.61 --- 1.60-3.07 3.04-5.78
Throw Ratio (WUXGA) 0.95-1.22 1.22-1.53 1.22-1.53 1.52-2.92 2.90-5.50
Zoom Ratio 1.28X 1.25X 1.25X 1.9X 1.9X
Lens Specication
VGA-OUT VGA-IN
LAN RS-232 12V
OUT
5V
OUT
CVBS
HDMI
DVI
Enter
Menu
1
3
2
4
5
6
+12V Relay Output
Network Port
7
1
Network Cable
2
Power Cord
3
12V DC Jack
4
RS232 Cable
5
HDMI Cable
6
VGA in Cable
7
VGA out Cable

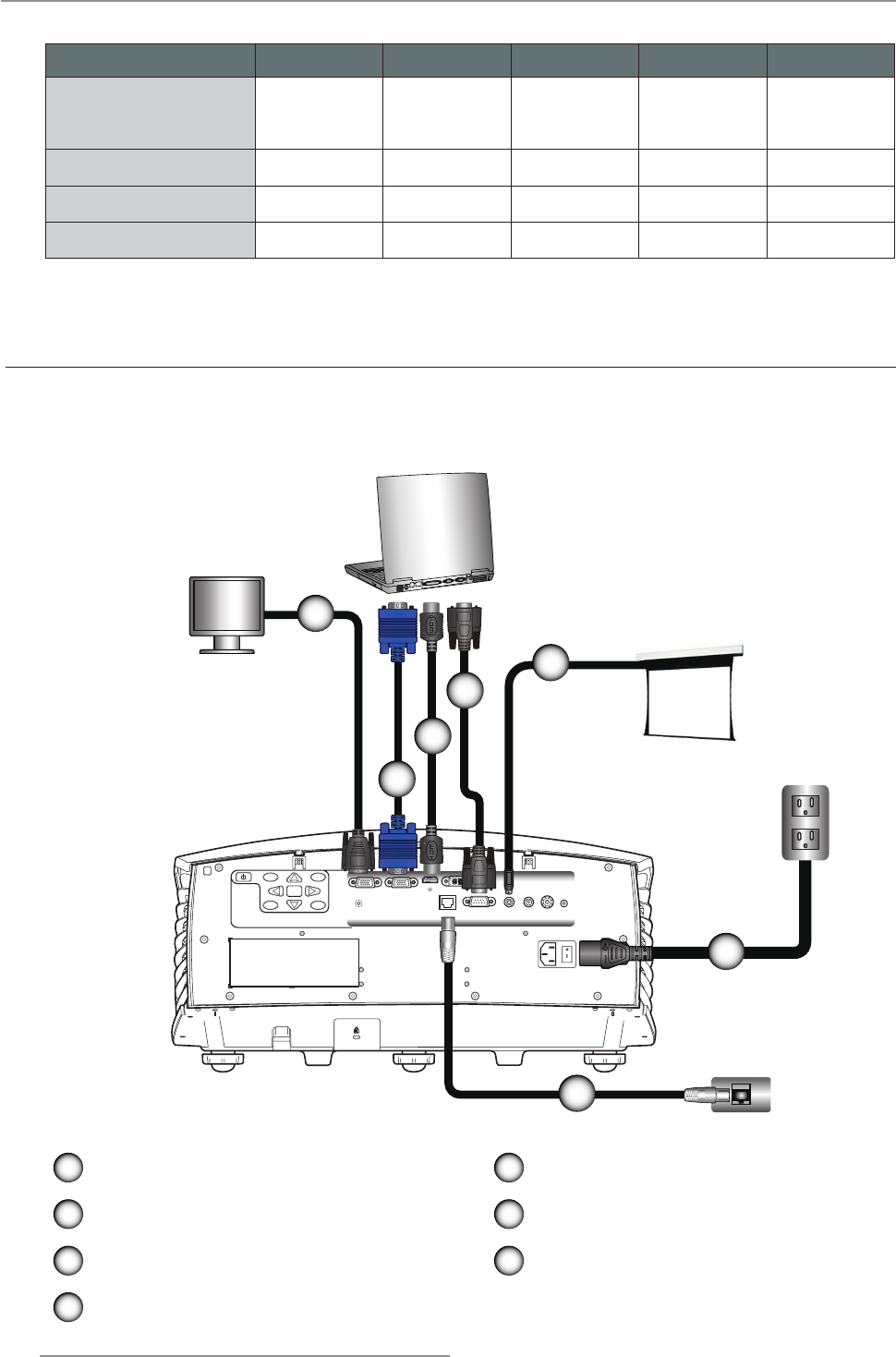

3.3.1 Connecting to a Computer or Laptop
Wiring Diagram
