ENGLISH
7
En
AUDIO VIDEO 1 and VIDEO VIDEO 1 jacks
These jacks output and accept video and analog audio signals
to and from the connected equipment.
Connect audio-visual equipment such as a video recorder to
these jacks, using two optional audio-visual connecting cables
with RCA plugs.
• Connect the line output jacks of the equipment to the VIDEO 1
input jacks ( AUDIO VIDEO 1 IN L, AUDIO VIDEO 1 IN R, and
VIDEO VIDEO 1 IN) of this unit.
• Connect the line input jacks of the equipment to the VIDEO 1
output jacks ( AUDIO VIDEO 1 OUT L, AUDIO VIDEO 1 OUT
R, and VIDEO VIDEO 1 OUT) of this unit.
• Be sure to connect properly according to the color-coding;
AUDIO L: white plugs and jacks
AUDIO R: red plugs and jacks
VIDEO: yellow plugs and jacks
NOTE
•When playing/recording the source through the equipment
connected to the AUDIO VIDEO 1 OUT jacks, set the surround
playback mode to STEREO (page 24).
• The sound selected on this unit’ s function is output from VIDEO
1 OUT jacks.
• The video is output from the VIDEO 1 OUT jack only when the
function is VIDEO 2.
• When recording Dolby Digital source through the equipment
connected to the AUDIO VIDEO 1 OUT jacks, dynamic range
can be adjusted (page 29).

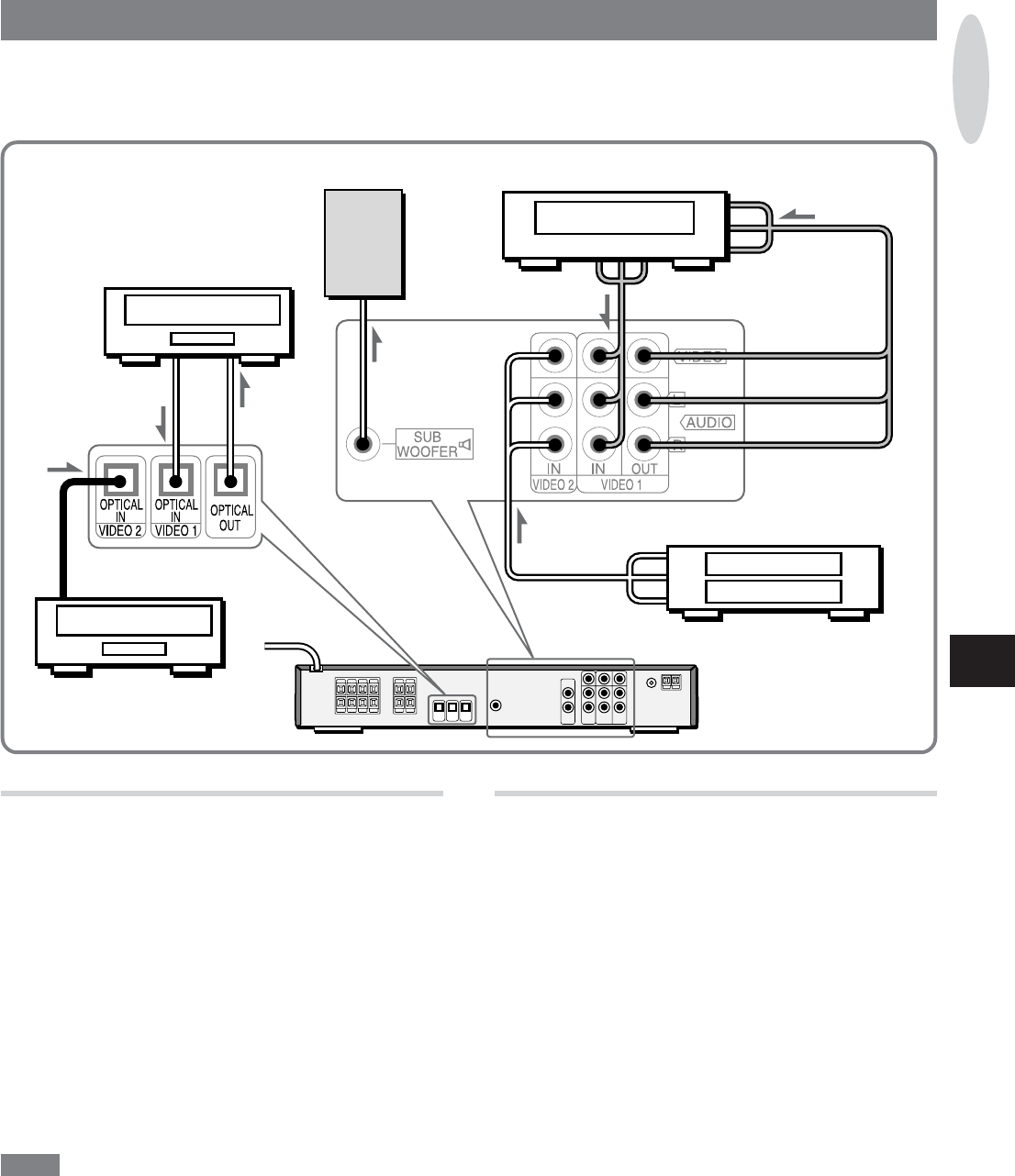

CONNECTING OTHER EQUIPMENT
Besides the basic connections described earlier , other equipment can be connected to this unit as needed.
Before making additional connections, be sure to turn of f the power and disconnect power supply for this unit and other equipment.
Wall mounting of the speakers is also described here.
AUDIO VIDEO 2 and VIDEO VIDEO 2 jacks
These jacks accept video and analog audio input signals from
the connected equipment.
Connect audio-visual playback equipment, such as a video player
to these jacks, using an optional audio-visual connecting cable
with RCA plugs.
• Connect the line output jacks of the equipment to the VIDEO 2
jacks ( AUDIO VIDEO 2 IN L, AUDIO VIDEO 2 IN R, and VIDEO
VIDEO 2 IN) of this unit.
• Be sure to connect properly according to the color-coding;
AUDIO L: white plugs and jacks
AUDIO R: red plugs and jacks
VIDEO: yellow plugs and jacks
to OPTICAL
IN jack
Video player/recorder, etc.
MD recorder, etc.
MD player, etc.
to OPTICAL OUT jack
to OPTICAL OUT jack
to LINE OUT jack
to LINE IN jack
to LINE OUT jack
Video player, etc.
Active
subwoofer
PREPARATIONS
