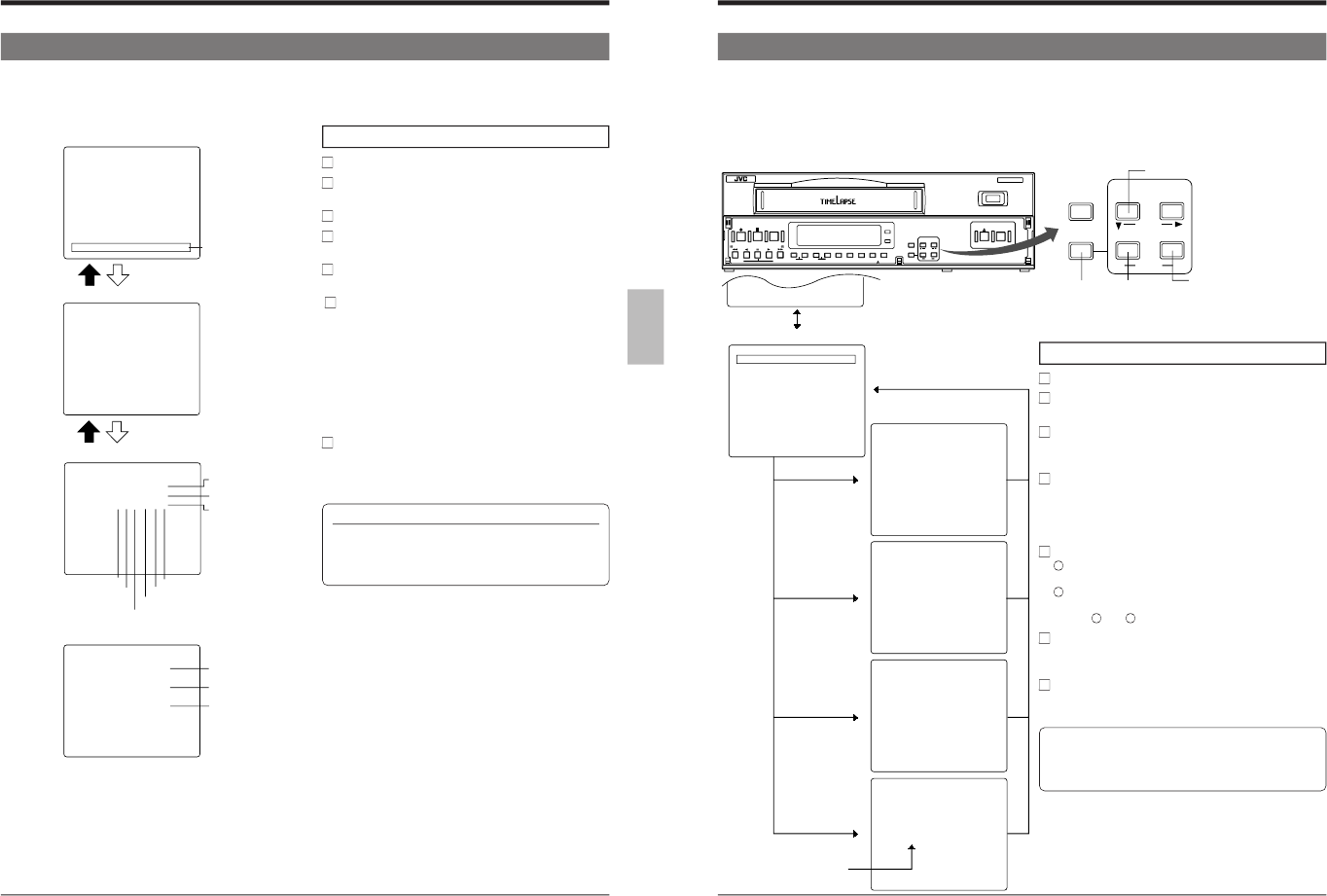

4 ON-SCREEN/MENU SWITCHES
4-5 Alarm Input/Power Loss Data Display
Cursor indication
[SET +/–] button
Alarm/power loss list screen
[SET +/–] button
Alarm list screen
First alarm
Hour
Minute
[MENU] button
[MENU] button
The dates and times of up to 8 alarm inputs or 4 power losses
(failures) can be displayed.
Operation
Turn on the VCR and monitor.
Press the [MENU] button to display the main menu on the
monitor.
Press the [SHIFT 7] button to set the cursor on <OTHER>.
Press the [SET +/
–] button to display the <OTHER>
screen.
Press the [SHIFT 7] button to set the cursor on the item
you want to display (ALARM LIST or POWER LOSS LIST).
Press the [SET +/–] button to display the alarm or power loss
list.
• Alarm list: Up to 8 alarms are shown. When 9 or more
alarms are input, the most recent data will
replace the earliest data (beginning with the
second item).
• Power loss list: Up to 4 power losses are shown. When 5 or
more power losses are input, the most recent
data will replace the earliest data (beginning
with the second item).
Press the [MENU] button three times to restore the normal
screen.
• Press the [MENU] button once to restore the <OTHER>
screen and press once more to restore the main menu.
Resetting alarm input/power loss (failure) data
Press the [RESET/CANCEL] button on the alarm list
screen to reset the alarm input data stored in memory.
Press the [RESET/CANCEL] button on the power loss list
screen to reset the power loss data stored in memory.
Power loss list screen
Second
Last power loss
First power loss
Last alarm
Second alarm
Second power loss
Year
Month
Day
4-6 Menu Switch Setting
4 ON-SCREEN/MENU SWITCHES
You can customize the VCR
’s functions to suit the requirements of your application using the four menu switch setting screens
accessible from the main menu screen.
• ON SCREEN/F. DISPLAY MODE
• VIDEO/VTR MODE
• SRI/EXT, ALARM/SENSOR MODE
• BUZZER/IN OUT
Each menu switch setting screen can be accessed independently from the main menu.
[MENU] button
[SHIFT 7] button
[SET +] button
[SET –] button
Main menu screen
[MENU] button
ON SCREEN/F. DISPLAY MODE
screen
[SET +/–]
button
SRI/EXT,
ALARM/SENSOR
MODE screen
BUZZER/IN OUT
screen
VIDEO/VTR MODE
screen
[MENU] button
Operation
Turn on the VCR and monitor.
Press the [MENU] button to display the main menu on the
monitor.
Press the [SHIFT 7] button to select the menu switch
setting screen you want to set or check.
• Set the cursor on the desired menu switch setting screen.
Press the [SET +/
–] button.
[ The selected menu switch setting screen is shown on
the monitor.
• The menu switch setting screen consists of several menu
switch items.
To change the menu switch setting
Press the [SHIFT 7] button to set the cursor on the
menu switch item setting you want to change.
Press the [SET +/
–] button to specify the set value.
Ⅲ To set more than one menu switch, repeat the above
steps and .
To check or set the other menu switch setting screens
Press the [MENU] button to restore the main menu screen and
repeat steps 3 to 5.
End menu switch setting.
To restore the normal screen from the menu switch setting
screen, press the [MENU] button twice.
• The specified setting value is stored in the VCR
’s
memory and retained even if the operating power is
turned off.
• For details on menu switch items, refer to pages 23 to 26.
Normal screen
Only shown when the SA-
K97 is installed.
U model only
