Cleaner Drive Removal
Removal/Replacement Procedures 7-55
Cleaner Drive Removal
To remove the cleaner drive:
1 Open the back cover.
2 Remove the fuser drive cover (three screws).
3 Remove the main drive cover (one screw).
4 Remove the cleaner drive belt. (See page 7-54.)
5 Remove the two high voltage leads.
6 Remove the cleaner drive (three screws).

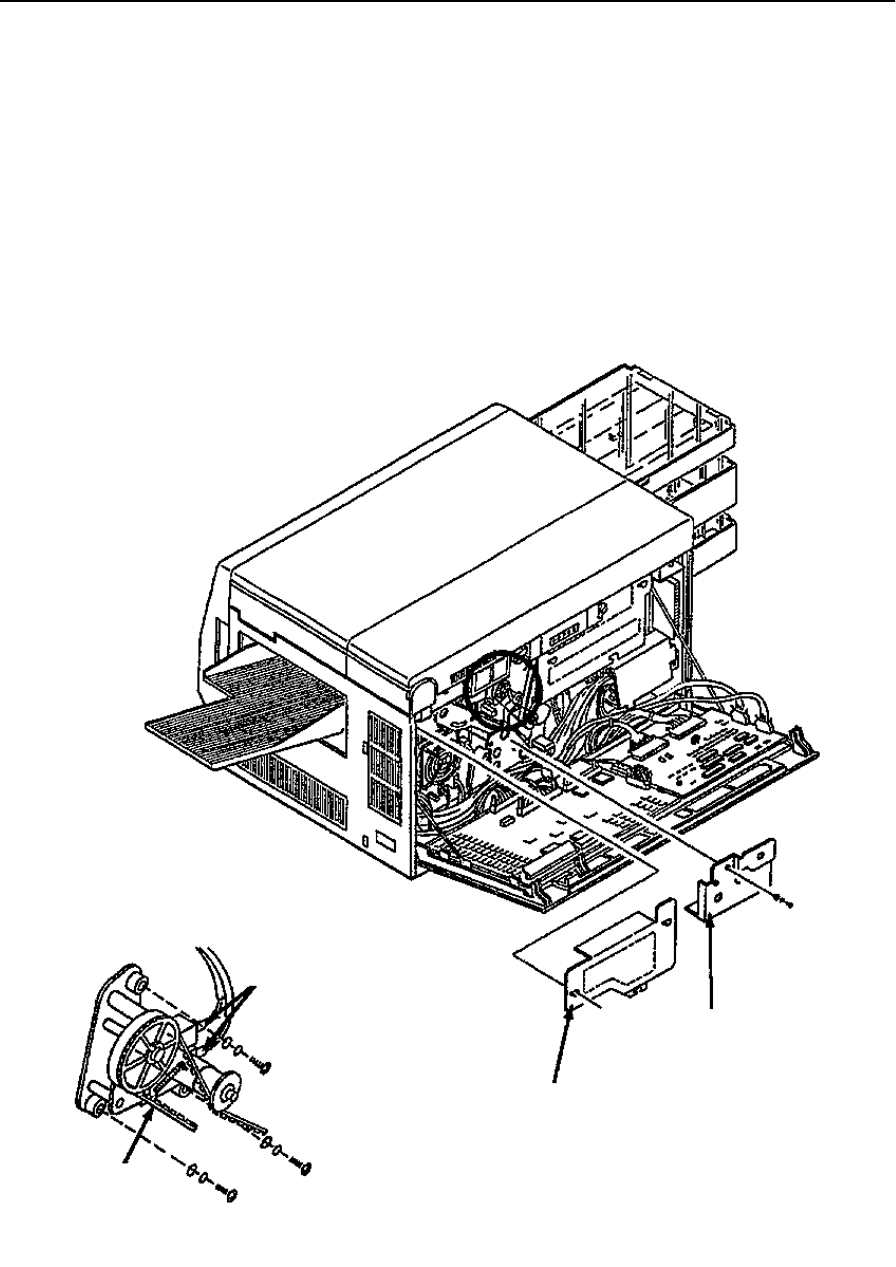

Fuser Drive
Cover
Main Drive
Cover
High Voltage Leads
Drive Belt
Cleaner Drive Detail
