Q1860-90918 6 Removing and replacing parts 179
500-sheet feeder pickup roller
1 Place the feeder upside down on the work surface.
2 With one hand, rotate the pickup roller shaft (callout 1) 90 degrees.
3 With the other hand, press the locking tab on each of the rollers (callout 2) and push the
rollers back slightly from their secured positions.

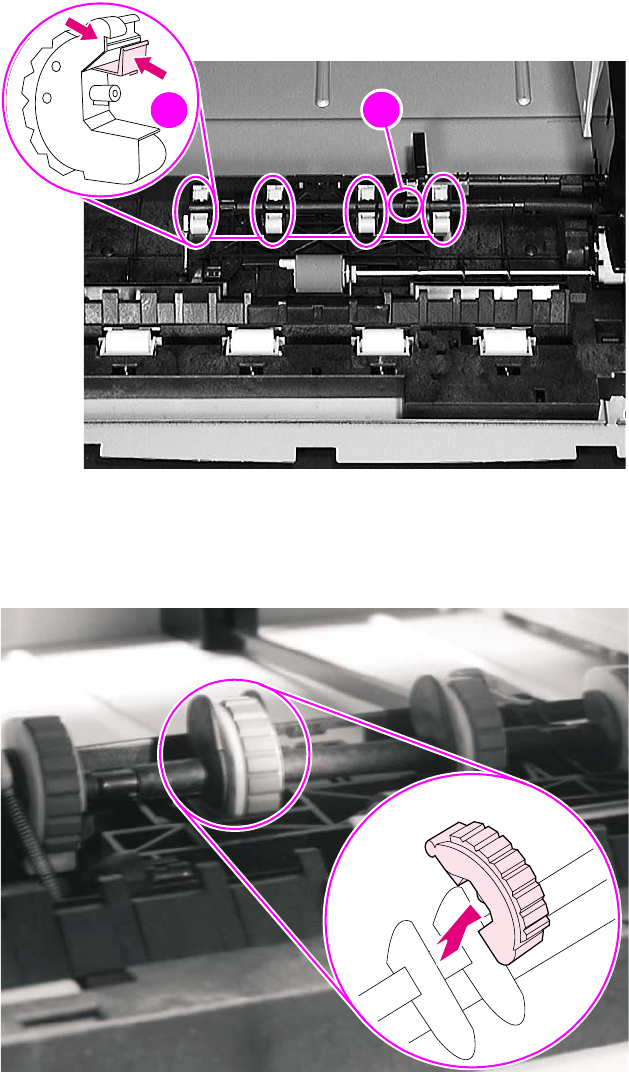

Figure 117. 500-sheet feeder pickup roller removal (1 of 2)
Rotate the pickup roller shaft another 90 degrees to remove the rollers completely from the shaft.
Figure 118. 500-sheet feeder pickup roller removal (2 of 2)
2
2
2
1
