128 Removing and replacing parts Q1860-90918
Transfer-roller assembly
CAUTION Never touch the transfer roller with your fingers. Wear unpowdered latex gloves when you remove
and replace the transfer roller. Roll the transfer roller into a clean sheet of paper to protect it after
removal.
1 Face the front of the printer, open the top cover, and lift the small green handle on the right
side of the registration assembly to expose the transfer guide (callout 1—the metal plate that
rests against the transfer roller).
2 While holding the plate, remove the two self-tapping screws (callout 2) and then carefully lift
out the transfer guide.

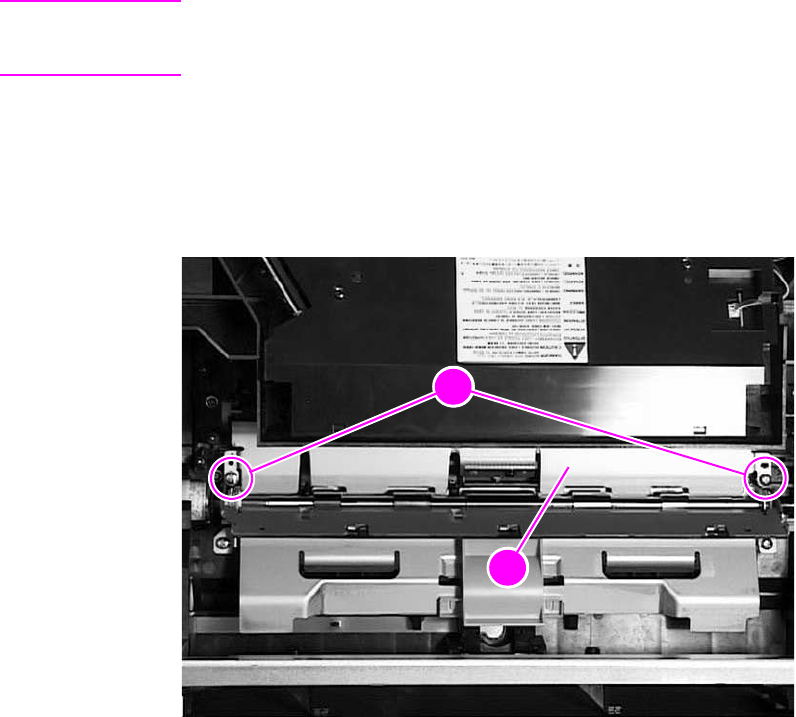

Figure 56. Transfer-roller assembly removal (1 of 3)
2
2
2
1
