CONTROLS AND FUNCTIONS

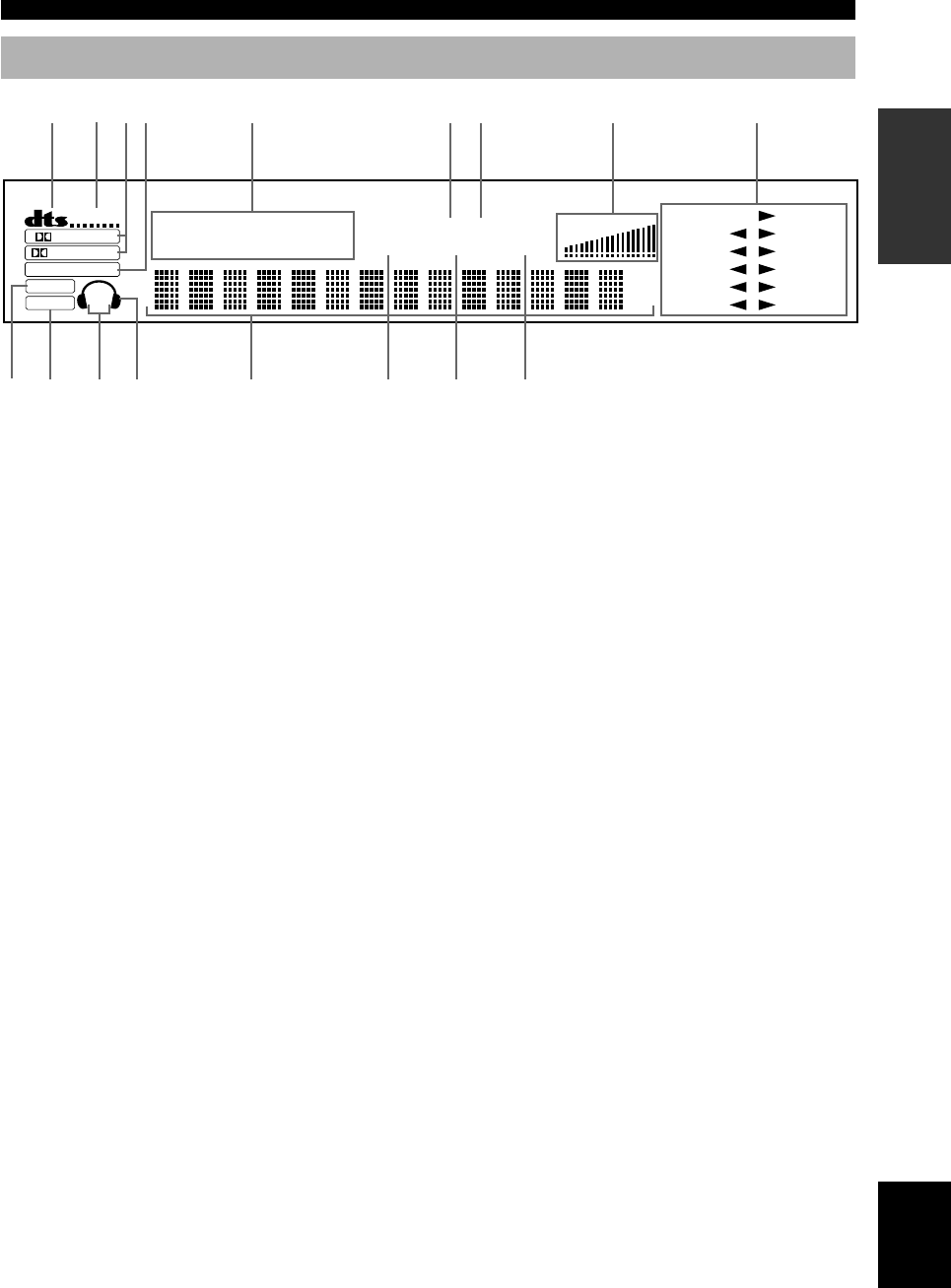

Front Panel Display
1 t indicator
Lights up when the built-in DTS decoder is on.
2 VIRTUAL indicator
Lights up when using Virtual CINEMA DSP (see
page 29).
3 g and o indicators
Light up according to the type of Dolby signals this unit
is reproducing. “ g ” lights up when the built-
in Dolby Digital decoder is on. “ o ” lights up
when the built-in Dolby Pro Logic decoder is on.
4 x indicator
Lights up when you select a DSP program.
5 DSP program indicators
The name of the selected DSP program lights up when
the ENTERTAINMENT, MOVIE THEATER 1, MOVIE
THEATER 2 or V/DTS SURROUND DSP program is
selected.
6 STEREO indicator
Lights up when the unit is receiving a strong signal for an
FM stereo broadcast while the “AUTO” indicator is lit.
7 AUTO indicator
Shows that this unit is in the automatic tuning mode.
8 VOLUME level indicator
Indicates the volume level.
9 Input source indicator
Shows the current input source with the arrow-shaped
cursor.
0 c indicator
Lights up when the built-in Dolby Digital Matrix 6.1 or
DTS ES decoder is on.
q v indicator
Lights up when this unit is reproducing PCM (pulse code
modulation) digital audio signals.
w SP A/B indicator
Lights up according to which set of main speakers is
selected. Both indicators light up when both sets of
speakers are selected.
e Headphones indicator
Lights up when headphones are connected.
r Multi-information display
Shows the current DSP program name and other
information when adjusting or changing settings.
t MEMORY indicator
Flashes to show a station can be stored.
y TUNED indicator
Lights up when this unit tunes in to a station.
u SLEEP indicator
Lights up while the sleep timer is on.
