TASCAM US-2x2/US-4x4

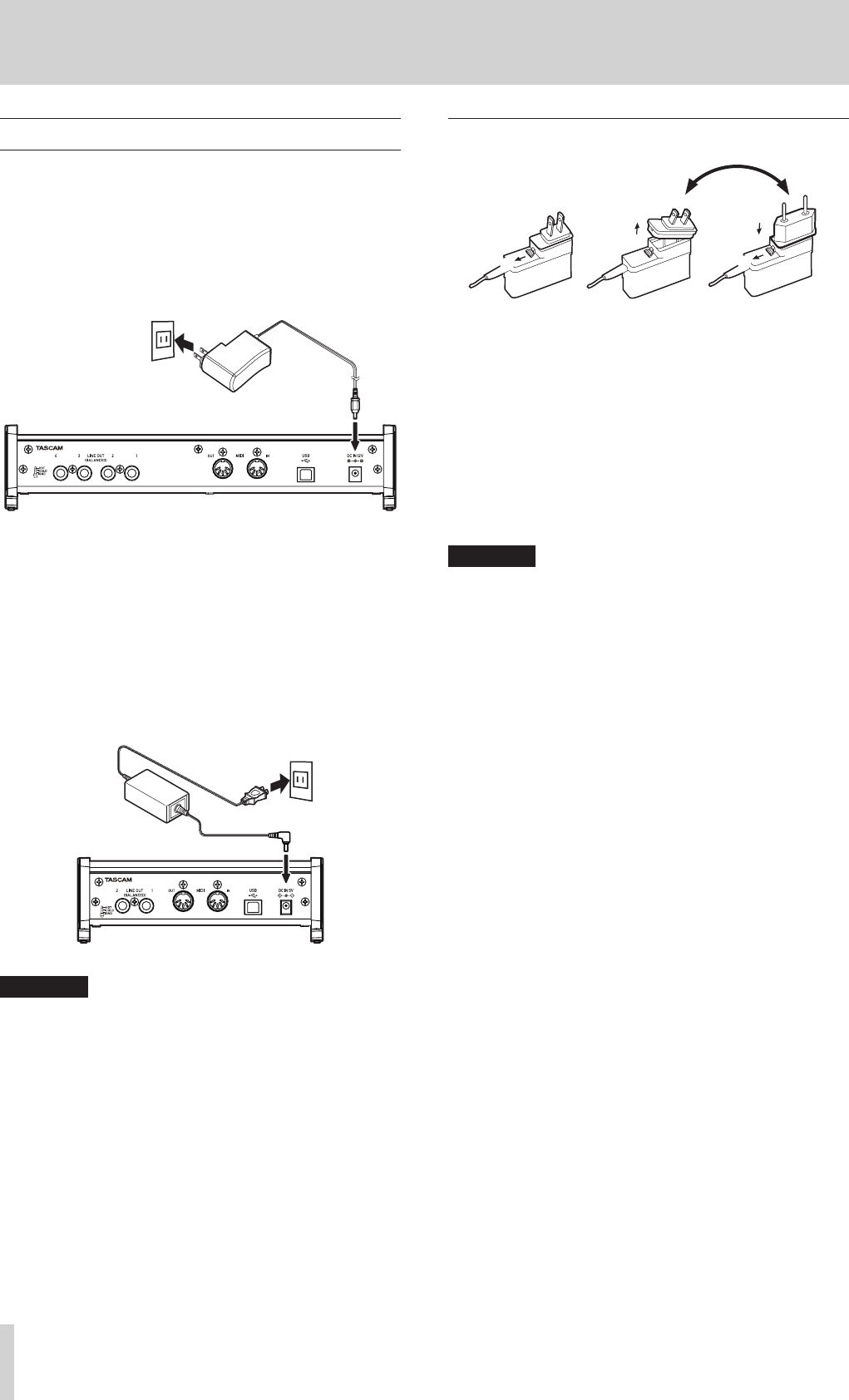

Connecting the power
8
US-4x4
Connect the power to the US-4x4 as shown below.
* The AC adapter for the US-4x4 includes two types of outlet
plugs. Attach the type of plug that matches the power
outlet that you are using.
Power outlet
GPE248-120200-Z (included)
DC plug
8
US-2x2
Normally, when a US-2x2 is connected to a computer, it will
operate using USB bus power, so a separate power supply is
not necessary. However, when using the unit connected to
an iOS device or when not using USB bus power, a separate
AC adapter designed for use with this unit (TASCAM
PS-P520, DC5V) is necessary. In this case, connect the power
source to the unit as shown below.
DC plug
Power outlet
TASCAM PS-P520
(sold separately)
CAUTION
Always use the AC adapter designed for use with the unit:
GPE248-120200-Z for the US-4x4 or TASCAM PS-P520 for the
US-2x2.
Using a different AC adapter could cause malfunction,
overheating, fire or other problems.
Changing the outlet plug (US-4x4 only)
$%
2
1
5
3
4
1 Move the latch on the AC adapter in the direction of the
arrow.
2 Pull off the outlet plug.
3 Replace it with the other outlet plug (A or B).
4 Move the latch on the AC adapter in the direction of the
arrow again.
5 Attach the outlet plug to the AC adapter.
This completes changing the outlet plug.
After changing the outlet plug, confirm that is not loose or
crooked and that everything is normal before plugging it
into an outlet
CAUTION
Do not use the adapter if there is anything abnormal about
the plug after changing it. Use when the plug is abnormal
could cause fire or electric shock. Contact the retailer where
you purchased the unit or a TEAC service center (on the back
cover) to request repair.
4 – Preparation
