Getting Started – ADVANCED –
25
US
To connect to a TV with DVI (digital visual interface) input
Use an HDMI (high-definition multimedia interface)-DVI (digital visual interface) converter cord (not
supplied) with an HDMI (high-definition multimedia interface)-DVI (digital visual interface) adaptor
(not supplied). The DVI (digital visual interface) jack will not accept any audio signals. Furthermore,
you cannot connect the HDMI OUT (high-definition multimedia interface out) jack to DVI (digital
visual interface) jacks that are not HDCP (high-bandwidth digital content protection) compliant (e.g.,
DVI (digital visual interface) jacks on PC displays).
E To connect a TV using the audio cords
Connect the system and the TV using the audio cords.
You can enjoy the TV sound from all speakers in this system.

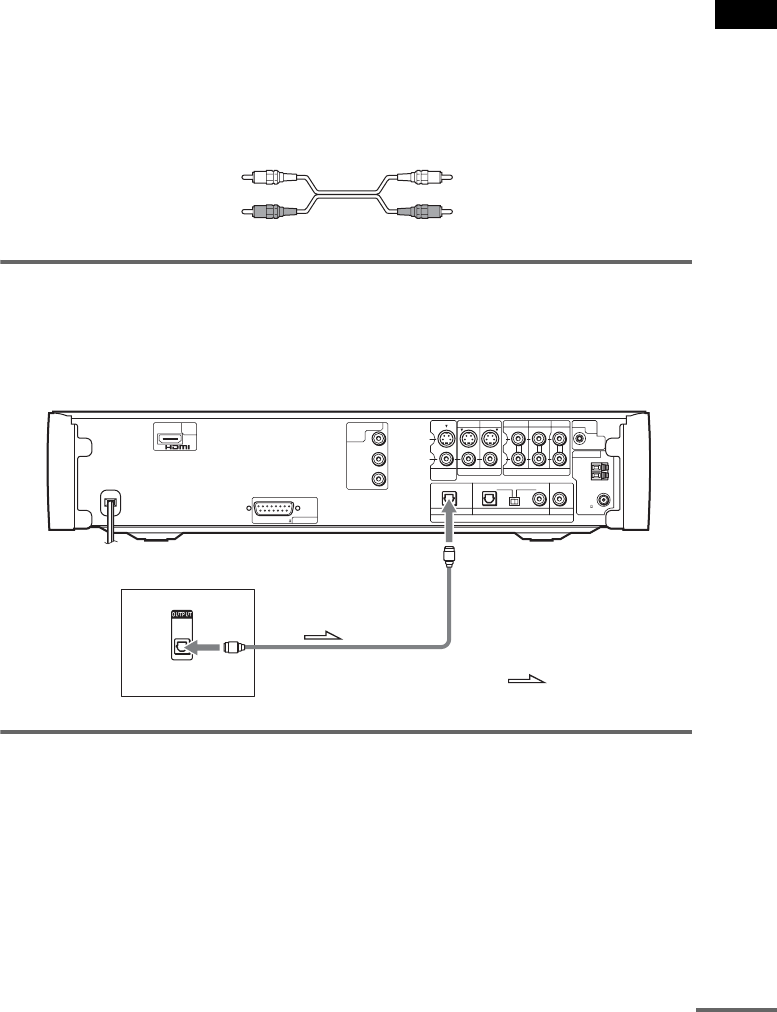

Connecting the TV with the digital optical cord
The TV with the digital optical out jack (such as the TV that has digital satellite tuner, etc.) can be
connected to the TV (DIGITAL IN OPTICAL) jack instead of the TV (AUDIO IN) jacks.
The system can accept both the digital and analog signals. Digital signals have priority over analog
signals. If the digital signal ceases, the analog signal will be processed after 2 seconds.
When connecting to a standard 4:3 screen TV
Depending on the disc, the image may not fit your TV screen.
To change the aspect ratio, see page 78.
White (L/audio)
Red (R/audio)
OPTICAL
DIGITAL
OUT
VIDEO1
VIDEO1
COAXIAL COAXIAL
ECM-AC1
75
COAXIAL
OPTICALOPTICAL
VIDEO1
S VIDEOY
P
B/CB
PR/CR
L
R
VIDEO
AUDIO IN
A.CAL
MIC
DIGITAL IN
ANTENNA
HDMI
OUT
VIDEO INMONITOR
OUT
COMPONENT
VIDEO
OUT
VIDEO2
VIDEO2
AM
FM
VIDEO2
TV
TV
IMPEDANCE USE 4
SPEAKER
TV with the digital optical jack
To TV (DIGITAL IN OPTICAL)
: Signal flow
continued
