Getting Started – ADVANCED –
31
GB
You can enjoy sound using the speakers of this system by connecting the AUDIO OUT jacks of another
component. For video connection of other components, connect directly to the TV.

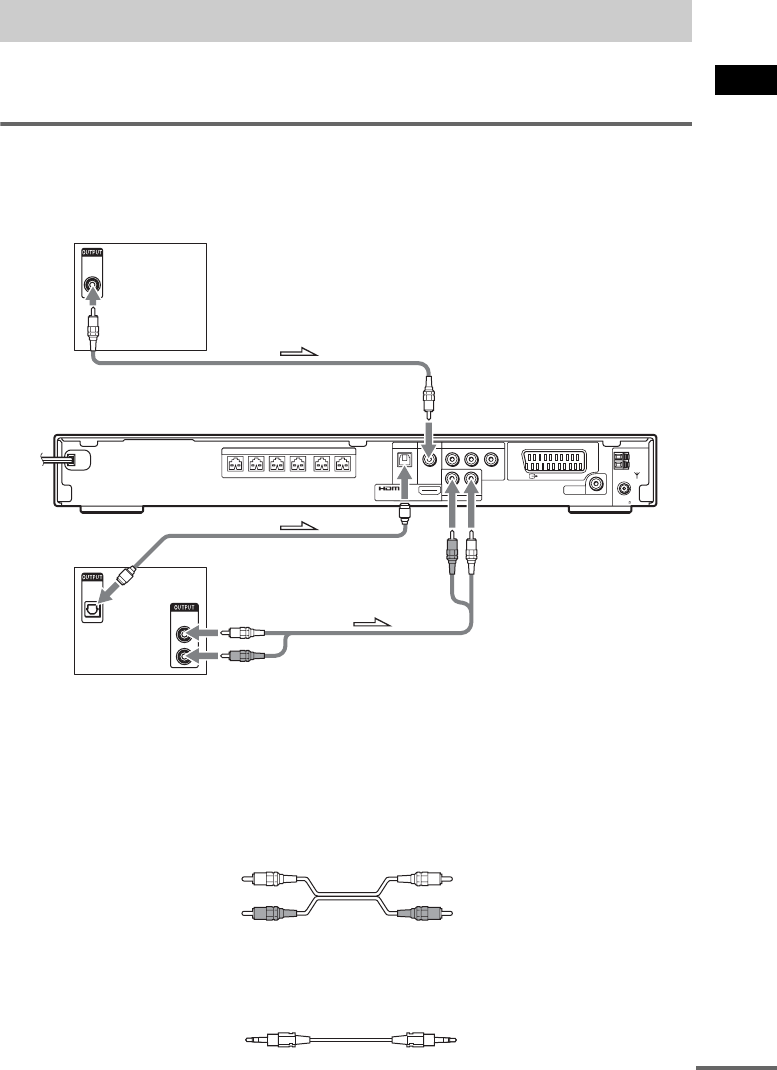

Connecting the system and the other component
Outputs the other component through the speakers of this system.
To connect the AUDIO OUT jacks of other component to the LINE1
(AUDIO IN) jacks of this system
Connect the VCR or other components to the LINE1 (AUDIO IN) jacks using the audio cord (not
supplied). When connecting a cord, be sure to match the color-coded sleeves to the appropriate jacks
on the components.
To listen to the portable audio source sound through the system
Connect the audio output jacks of the portable audio source to the AUDIO IN jack on the front panel
of the system with the stereo mini-plug cord (not supplied).
Other Component Hookup
OPTICAL
DIGITAL
OUT
COMPONENT VIDEO OUT
YP
B
/C
B
P
R
/C
R
(DVD ONLY)
COAXIAL
AM
FM
75
SPEAKER
FRONT R FRONT L SUR R SUR LCENTER WOOFER
DIR-T1
RLAUDIO IN
LINE1
LINE1 LINE2
DIGITAL IN
COAXIAL
DIGITAL IN
OPTICAL
(DVD ONLY)
OUT
EURO AV
OUTPUT(TO TV)
R
AUDIO
OUT
L
COAXIAL
DIGITAL
OUT
To LINE1 (AUDIO IN)
VCR, digital satellite receiver
or PlayStation 2, etc.
To LINE1 (DIGITAL IN
OPTICAL)
VCR, digital satellite receiver
or PlayStation 2, etc.
To LINE2 (DIGITAL IN
COAXIAL)
White (L/audio)
Red (R/audio)
continued
