Getting Started – ADVANCED –
27
GB
Select a hookup suitable for the jacks on your TV.
Connecting the video/HDMI* cords
Sends a played back DVD image to a TV.
Check the jacks of your TV, and choose connection method A, B, or C. Picture quality improves in
order from A (standard) to C (HDMI).
* HDMI (high-definition multimedia interface)
The system is based on version 1.1 of High-Definition Multimedia Interface Specifications.
The system incorporates High-Definition Multimedia Interface (HDMI
TM
) technology.
HDMI, the HDMI logo and High-Definition Multimedia Interface trademarks or registered trademarks of HDMI
Licensing LLC.

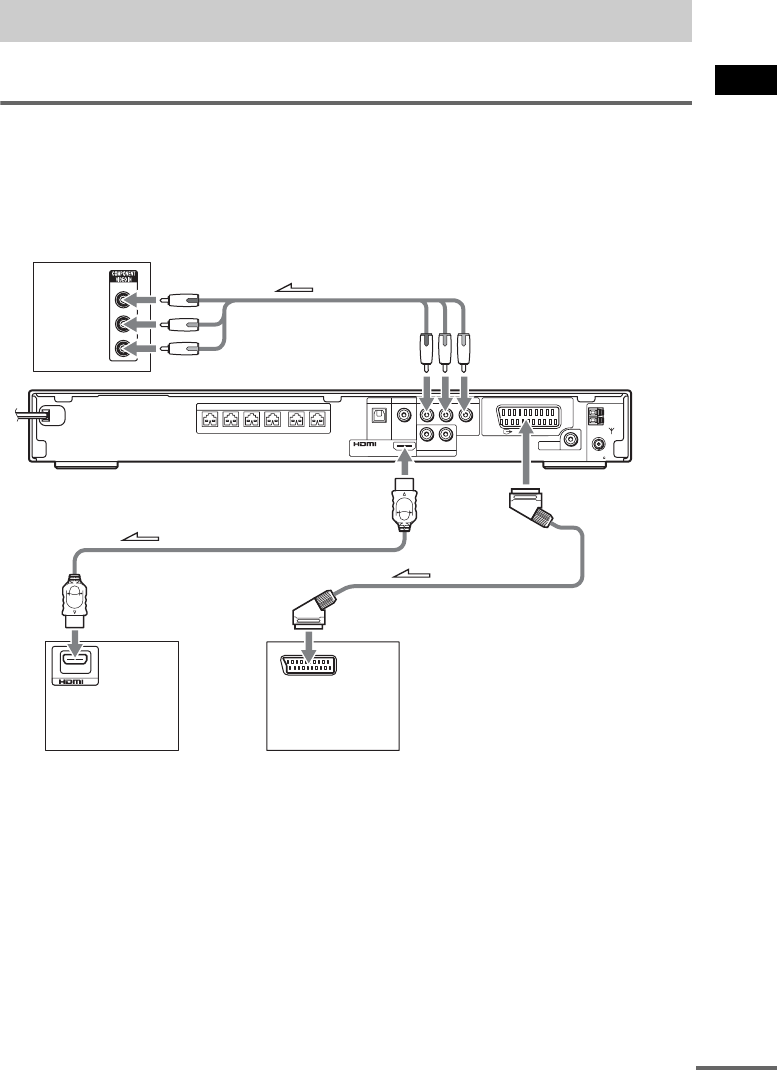

TV Hookup (Advanced)
Y
PB/CB
PR/CR
COMPONENT VIDEO OUT
YP
B
/C
B
P
R
/C
R
(DVD ONLY)
COAXIAL
AM
FM
75
SPEAKER
FRONT R FRONT L SUR R SUR LCENTER WOOFER
DIR-T1
RLAUDIO IN
LINE1
LINE1 LINE2
DIGITAL IN
COAXIAL
DIGITAL IN
OPTICAL
(DVD ONLY)
OUT
EURO AV
OUTPUT(TO TV)
IN
TV with COMPONENT
VIDEO IN jacks
To COMPONENT
VIDEO OUT
TV with HDMI* jack
B
To HDMI* OUT
A
To EURO AV
T OUTPUT
(TO TV)
To EURO AV INPUT
C
To HDMI* IN
continued
