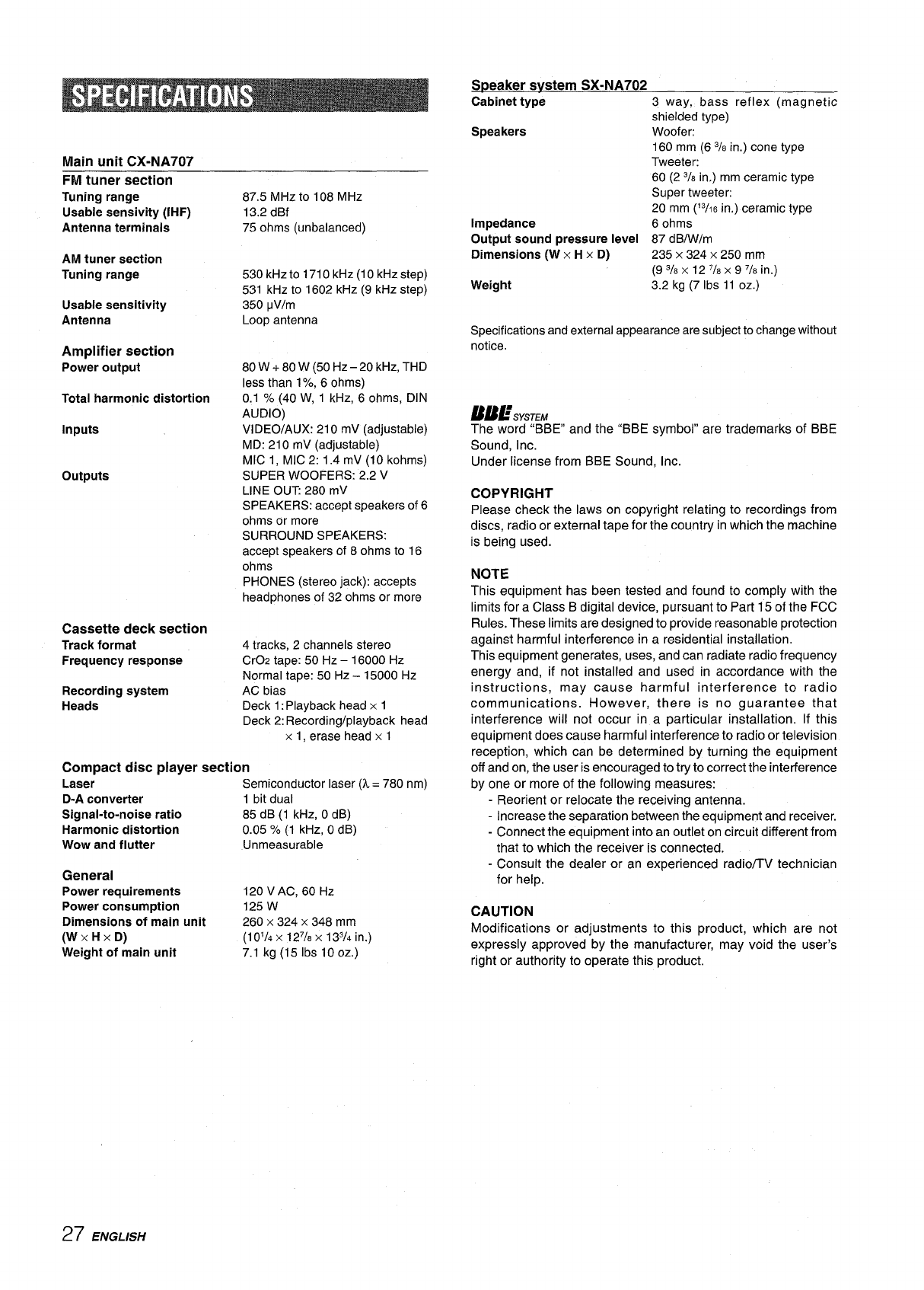

S~eaker svstem SX-NA702
Cabinet type
Speakers
3 way, bass reflex (magnetic
shielded type)
Woofer:
160
mm (6 3/8 in.) cone type
Tweeter:
60 (2
3/8 in.) mm ceramic type
Super tweeter
20 mm (i3/ISin.) ceramic type
6 ohms
87 dBiVV/m
235 x 324x 250 mm
(9
3/8X 12 7/8X 9 7/8 h.)
3.2 kg (7 Ibs 11 OZ.)
Main unit CX-NA707
FM tuner section
Tuning range
Usable sensivity (IHF)
Antenna terminals
87.5 MHz to 108 MHz
13.2 dBf
Impedance
Output sound preseure level
Dimensions (W x H x D)
Weight
75 ohms (unbalanced)
AM tuner section
Tuning range
530 kHz to 1710 kHz (10 kHz step)
531 kHz to 1602 kHz (9 kHz step)
350 pV/m
Loop antenna
Usable sensitivity
Antenna
Specifications and external appearance are subject to change without
notice.
Amplifier section
Power output
80 W+80W(50Hz–20 kHz,THD
less than 17., 6 ohms)
0.1 % (40 W, 1 kHz, 6 ohms, DIN
AUDIO)
VIDEO/AUX: 210 mV (adjustable)
MD: 210 mV (adjustable)
MIC 1, MIC 2: 1.4 mV (10 kohms)
SUPER WOOFERS: 2.2 V
LINE OUT 280 mV
SPEAKERS: accept speakers of 6
ohms or more
SURROUND SPEAKERS:
accept speakers of 8 ohms to 16
ohms
PHONES (stereo jack): accepts
headphones of 32 ohms or more
Total harmonic distortion
BBESYSTEM
The word “BBE and the “BBE symbol” are trademarks of BBE
Inputs
Sound, Inc,
Under license from BBE Sound, Inc.
outputs
COPYRIGHT
Please check the laws on copyright relating to recordings from
discs, radio or external tape for the country in which the machine
is being used.
NOTE
This equipment has been tested and found to comply with the
limitsfora Class Bdigital device, pursuant to Part 15 of the FCC
Rules,These limitsare designedto providereasonable protection
against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radiofrequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on circuit different from
that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician
for help.
Cassette deck section
Track format
Frequency response
4 tracks, 2 channels stereo
CrOz tape: 50 Hz – 16000 Hz
Normal tape: 50 Hz -15000 Hz
AC bias
Deck 1:Playback head x 1
Recording system
Heads
Deck 2:Recording/playback head
x 1, erase head x 1
Compact disc player section
Laser
Semiconductor laser (k= 780 nm)
D-A converter
1 bit dual
Signal-to-noise ratio
85 dB (1 kHz, OdB)
Harmonic distortion
0.057. (1 kHz, OdB)
Wow and flutter
Unmeasurable
General
Power requirements
120 V AC, 60
HZ
Power consumption
125W
Dimensions of main unit
260 x 324x 348 mm
(W XHXD)
(101/4 X 127/8X 13’/4 in.)
Weight of main unit
7.1 kg (15 Ibs 10
OZ.)
CAUTION
Modifications or adjustments to this product, which are not
expressly approved by the manufacturer, may void the user’s
right or authority to operate this product.
27 ENGLISH
