Preparation section Basic section Application section Knowledge sections
Before applying power
Malfunction of microcomputer
If operation is not possible or erro-
neous display appears even though
all connections have been made
properly, reset the microcomputer
referring to “In case of difficulty”.
h
FM indoor antenna
The accessory antenna is for temporary in-
door use only. For stable signal reception we
recommend using an outdoor antenna. Re-
move the indoor antenna if you connect one
outdoors.
1Locate the position providing
good reception condition.
2Fix the antenna.
−
+
33
11
To maintain proper ventilation, be sure to leave a space around the unit (from the
largest outer dimensions including projections) equal to, or greater than, shown
below.
Top panel : 50 cm, Rear panel : 10 cm, Left and right panel : 10 cm
1. Be sure to insert all connection cords
securely. If their connections are imper-
fect, the sound may not produced or
noise may interfere.
2. Before plugging or unplugging a con-
nection cord, be sure to unplug the
power cord from the wall AC outlet, if
connection cords are plugged or un-
plugged with the power cord left plugged
in, malfunction or damage may result.
3. Never short-circuit the + and – speaker
cords.
4. If the left and right speaker connec-
tions or the + and – polarity are in-
verted, the sound will be unnatural
with unclear positioning of musical in-
struments, etc. Be sure to connect
them without mistake.
Notes
Notes
Speaker (left)
Front View
Twist
3214

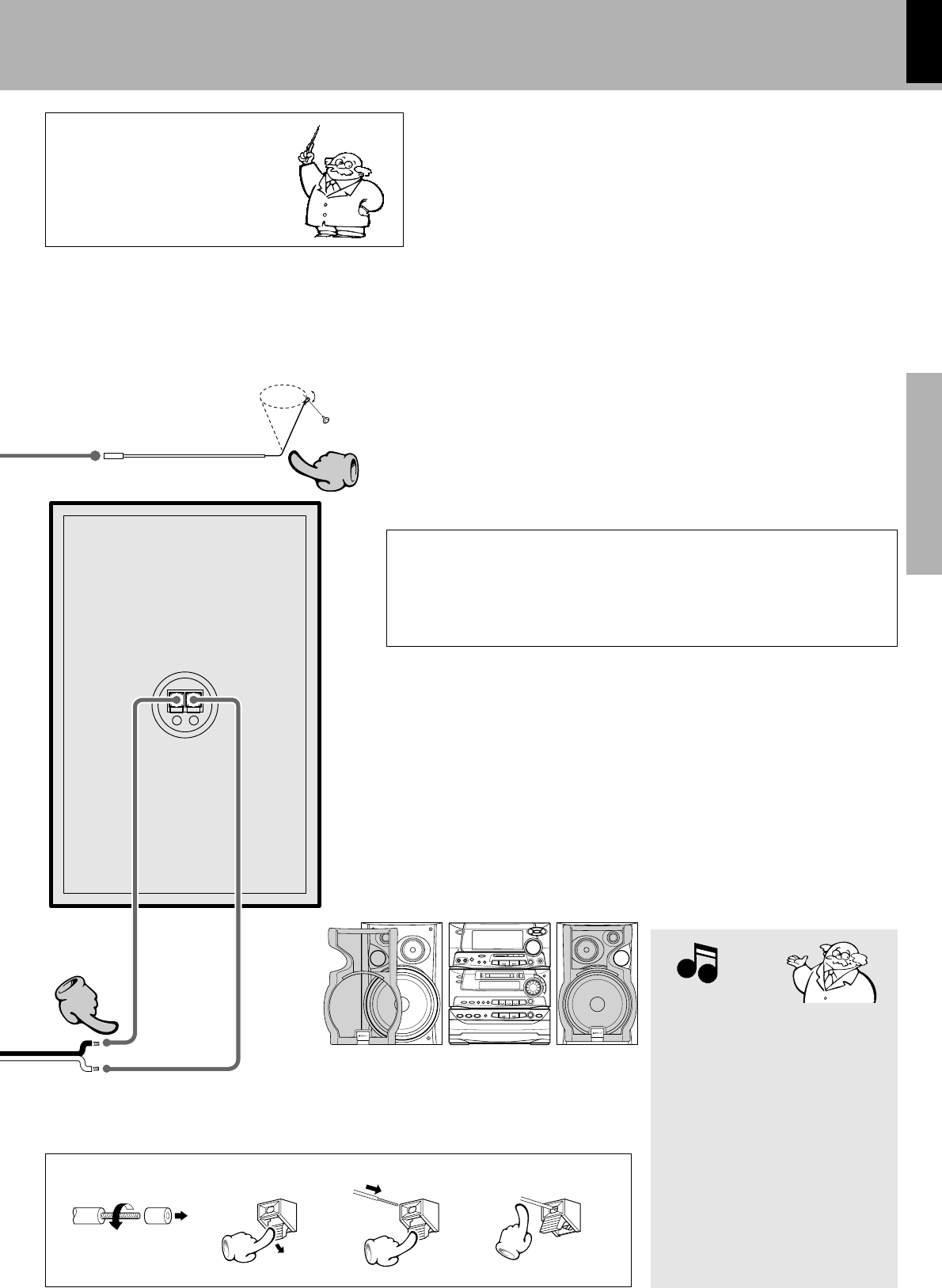

Caution regarding placement
Speaker Unit
System connection
