Getting started

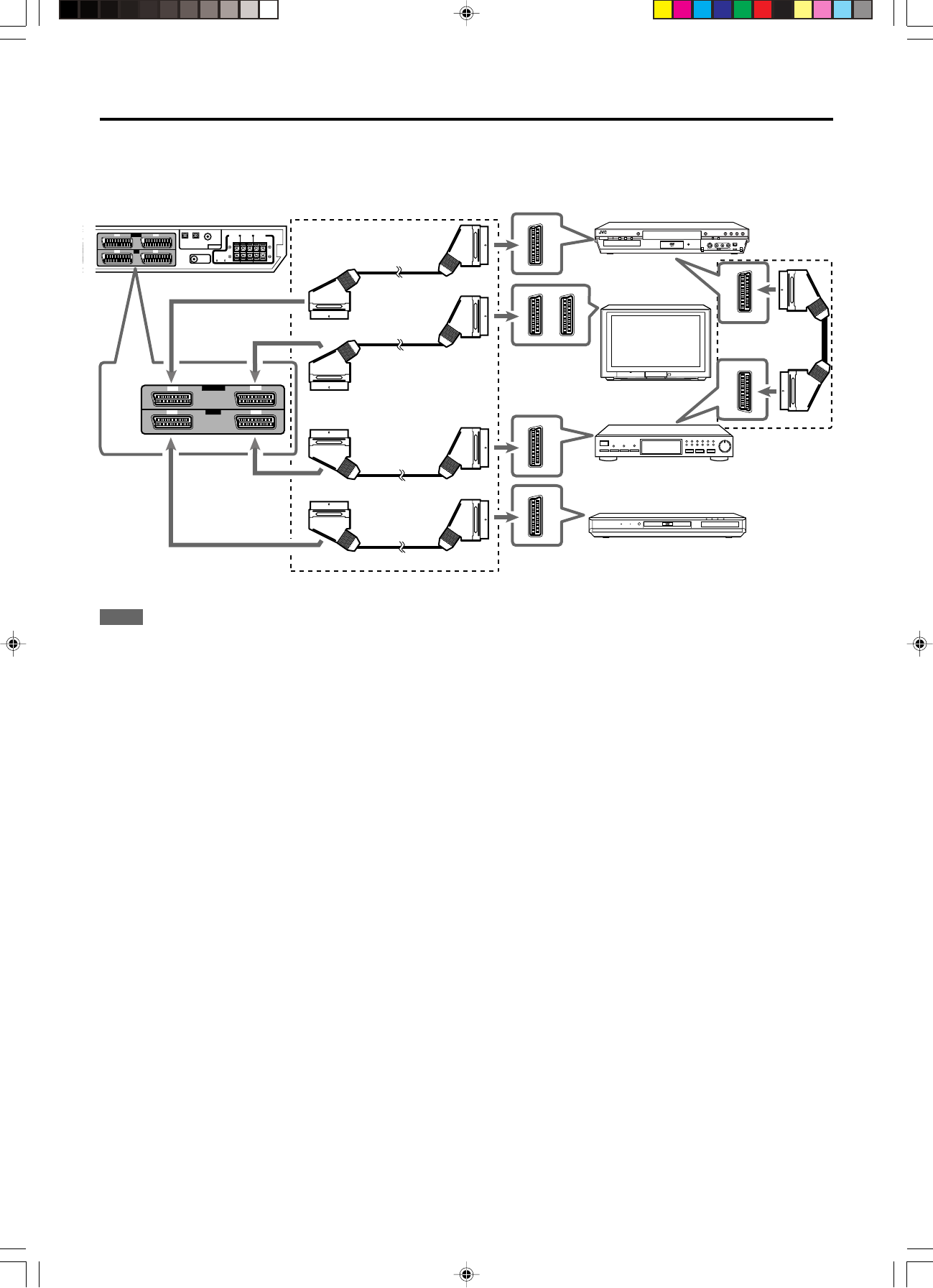

SCART connection
SCART cable (supplied: 1 cable)
See below.
NOTE
You can connect either a VDR or a VCR to the VR terminal.
* For an analogue decoder
To watch or record a scrambled program on your VR, connect the
analogue decoder to your VR and select the scrambled channel on
your VR.
If there is not an appropriate terminal for the decoder connection on
your VR, connect the decoder to your TV.
Refer also to the manuals supplied with these components.
* For recording pictures from STB
When you connect a STB and a VR directly with a SCART cable, you
can record the pictures from the STB onto VR without using the STB
menu screens. For details, refer also to the manuals supplied with the
STB.
For digital sounds
To reproduce the digital sound, use both the digital connection (see
page 7) and the SCART cable connection.
