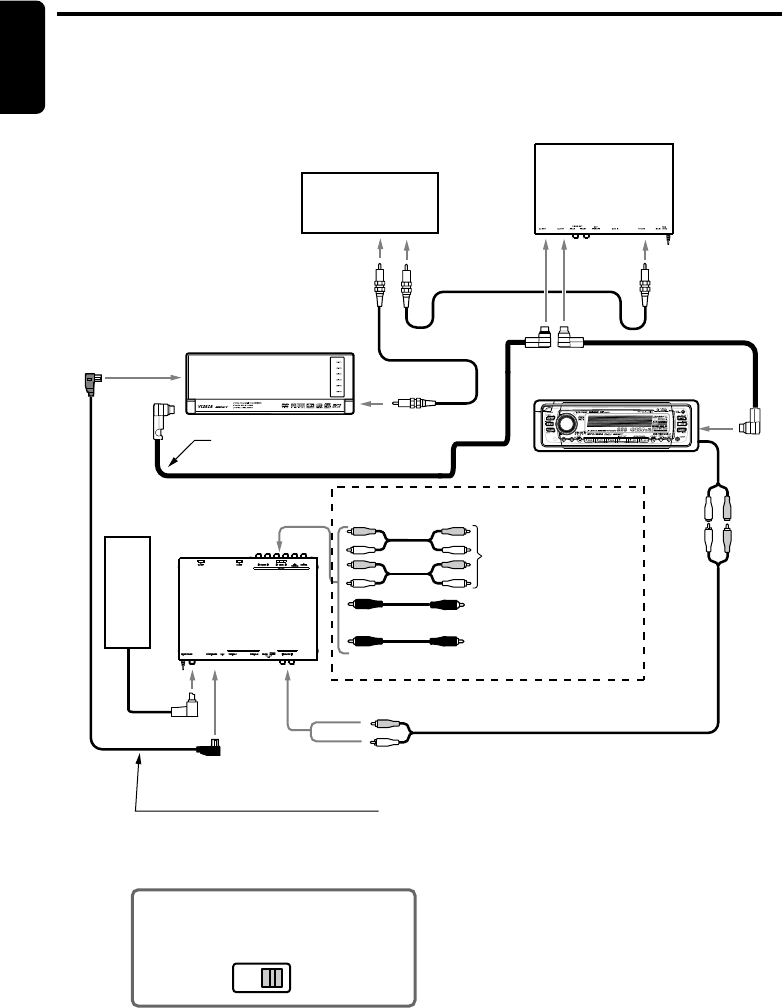

Connect with 5.1ch Surround Decoder (DVH920/DVH940)
DVH920
SET and 5.1ch Surround Decoder connect wth
RCA pin cable
Gray
SLAVE
STAND
ALONE
(DXZ7 46MP)
(VCZ625)
CeNET DVD Changer
5.1ch surround
decoder
Optical Digital cable (sold separately)
1-DIN Center Unit
Black
Refer to the OWNER’S MANUAL of DVH920.
RCA pin cable (furnished with DVH920)
wired controller
NOFADER
ANALOG INPUT
( TTX75 0 1z /TTX7502z
/T TX7504z)
BB TV Tuner
TV MONITOR
Set the 5.1ch surround decoder’s
[STAND-ALONE / SLAVE] switch tothe
[STAND-ALONE] position.
DCA-005 (5 m) (furnished with DVH920)
DCA-008 (1.5 m)
Connect properly in accordance withcolor of connectors
CeNET Cable (furnished with
component to be connected)
Connect to 4ch power
amplifier
Connect to powered
center speaker
Connect to powered
sub-woofer
(DVC920)
(DVH920)
