APPLICATIONS
4-Channel High Power System
Figure 8 -

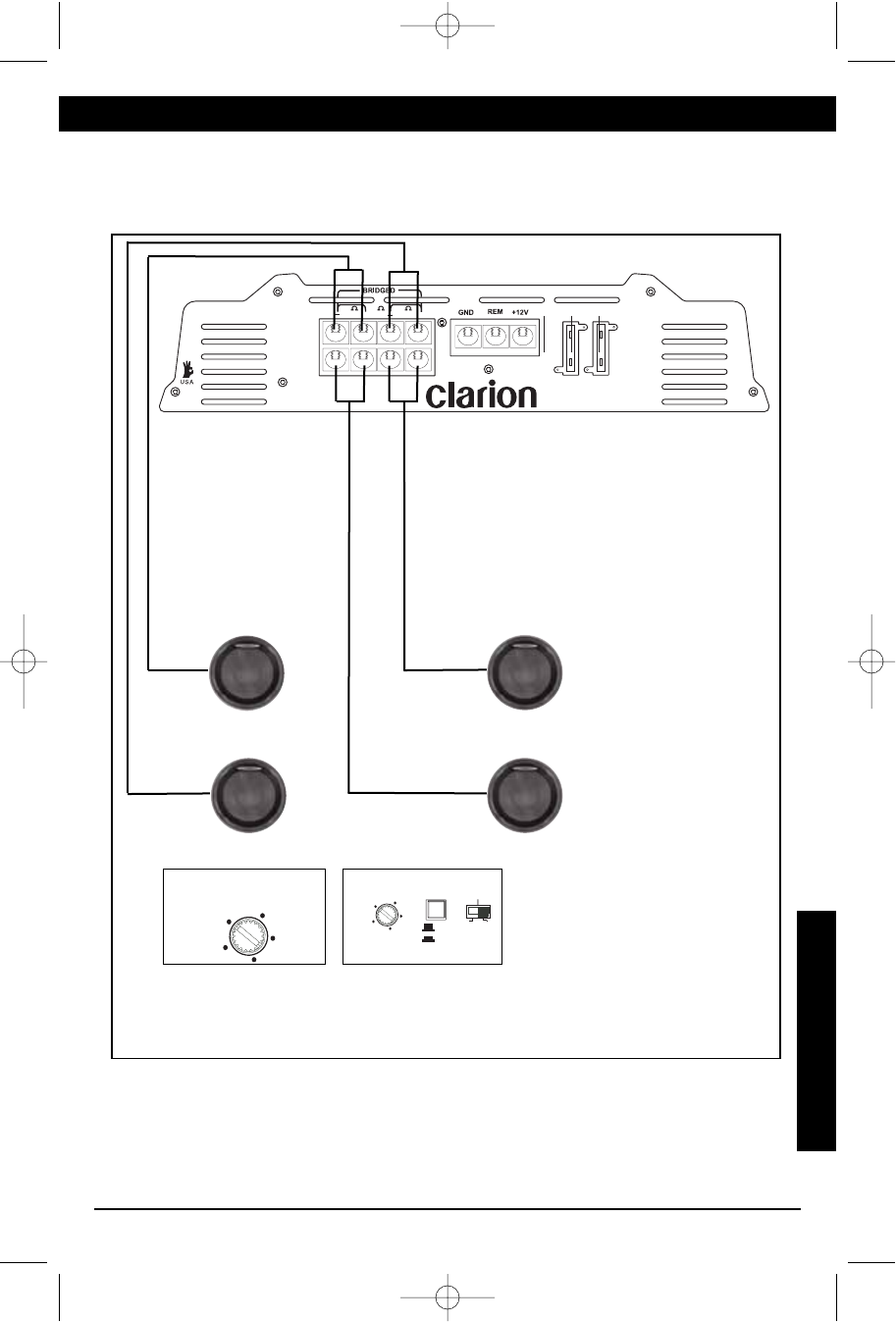

In this application, the APX640.4 is used as a 4-channel amplifier to drive
four full-range speakers in stereo.
APX640.4
25x2
AMP MAX
L
R
+
+
MIN
MIN
MIN
2
4
2
FRONT
REAR
RR - Full Range
RL - Full Range
FL - Full Range
FR - Full Range
FREQ Hz
110
240
330
550
55
HP
LP
OFF
FREQ Hz
110
240
330
550
55
REAR
FREQ
RANGE
X10
X1
