2. CONNECTING THE SYSTEM
EN - 2
CONNECTOR
ISO
FUSE
Front
RCA L
Rear
RCA L
SUBW
Front
RCA R
Rear
RCA R
ANTENNA
JACK
Subwoofer
Rear line out R
Rear line out L
Front line out R
Front line out L
RCA-TO-RCA CABLE
(not supplied)
Antenna
Socket
FUSE
1
2
3
4
5
6
7
8
4
5 7
8
A
B

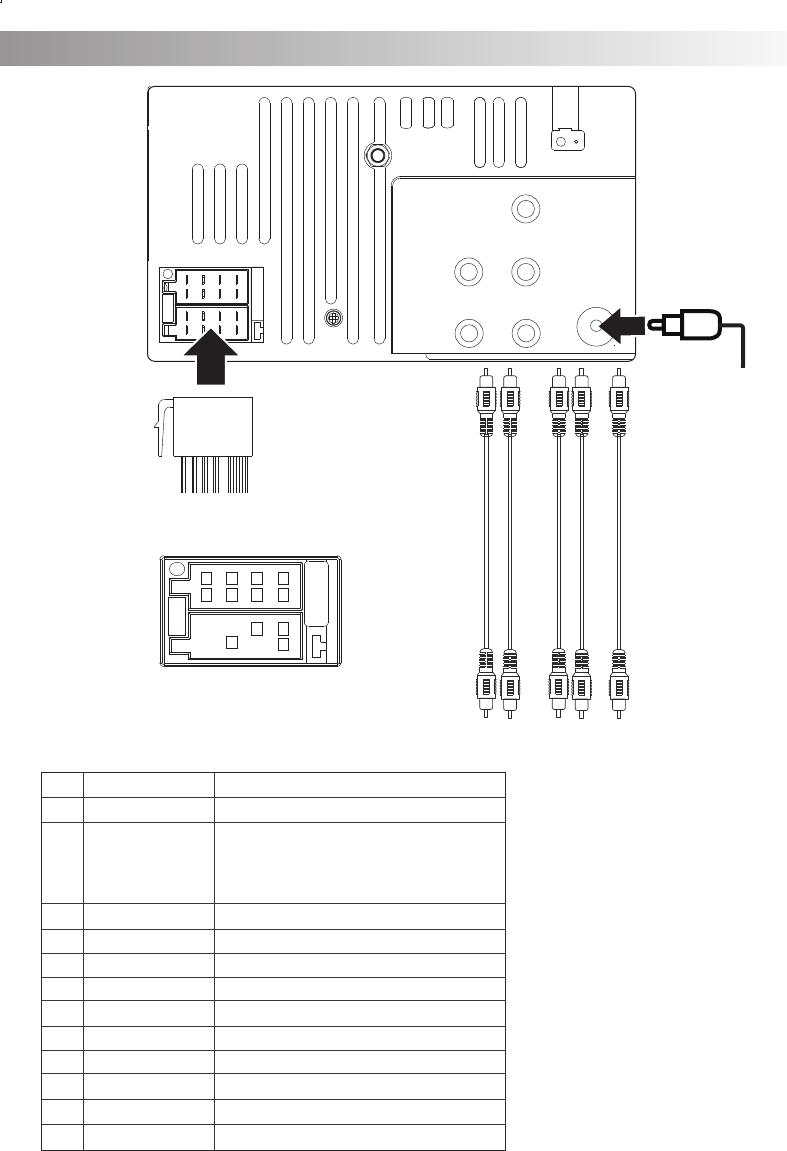

ISO CONNECTOR WIRING CHART
YELLOW
WIRE COLOR
VIOLET/BLACK
GREY/BLACK
WHITE/BLACK
VIOLET
WHITE
GREY
B1
B5
B4
B3
B2
GREEN
GREEN/BLACK
B7
B8
B6
A5
A4
PIN
BLACK
A8
REDA7
BLUE
LEFT FRONT SPEAKER (-)
LEFT REAR SPEAKER (+)
LEFT REAR SPEAKER ( )
RIGHT REAR SPEAKER (+)
RIGHT FRONT SPEAKER (+)
LEFT FRONT SPEAKER (+)
RIGHT FRONT SPEAKER (-)
RIGHT REAR SPEAKER (-)
FUNCTION/LABEL
CONNECT TO SYSTEM CONTROL
TERMINAL OF THE POWER AMP OR
AUTO ANTENNA RELAYCONTROL
TERMINAL(max 150mA 12VDC)
BATTERY(+)
IGNITION(ACC)
GROUND
Figure 2
