4 Switch Interface Administration Digital Interfaces
UCS 1000 R4.2 Administration 585-313-507 Issue 3 April 2000 164
The system displays the Digital R2 MFC Protocol - Mexico menu (Figure
93).

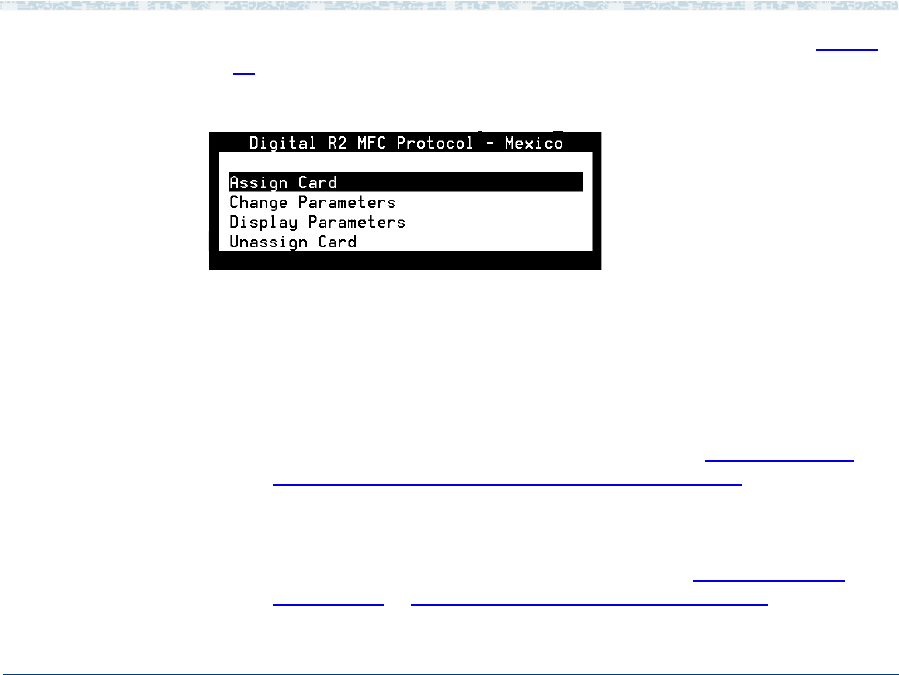

Figure 93. Digital R2 MFC Protocol - Mexico Menu
Use the procedures below to assign or unassign the Digital R2 MFC - Mexico
protocol to or from digital circuit cards, and administer the switch interface
parameters.
Assigning the Digital R2 MFC - Mexico Protocol to E1 Circuit Cards
Note: Before a new protocol can be assigned to a circuit card, any
existing protocol must first be “unassigned.” See Unassigning the
Digital R2 MFC - Mexico Protocol to E1 Circuit Cards below for
more information.
Before attempting to make any assignment changes to circuit
cards, they must be in the “manoos” state. See Equipment State
on page 103 in Chapter 3, Voice System Administration , for
additional information.
