Jack PC Hardware User Manual - Training Department
Version 0506

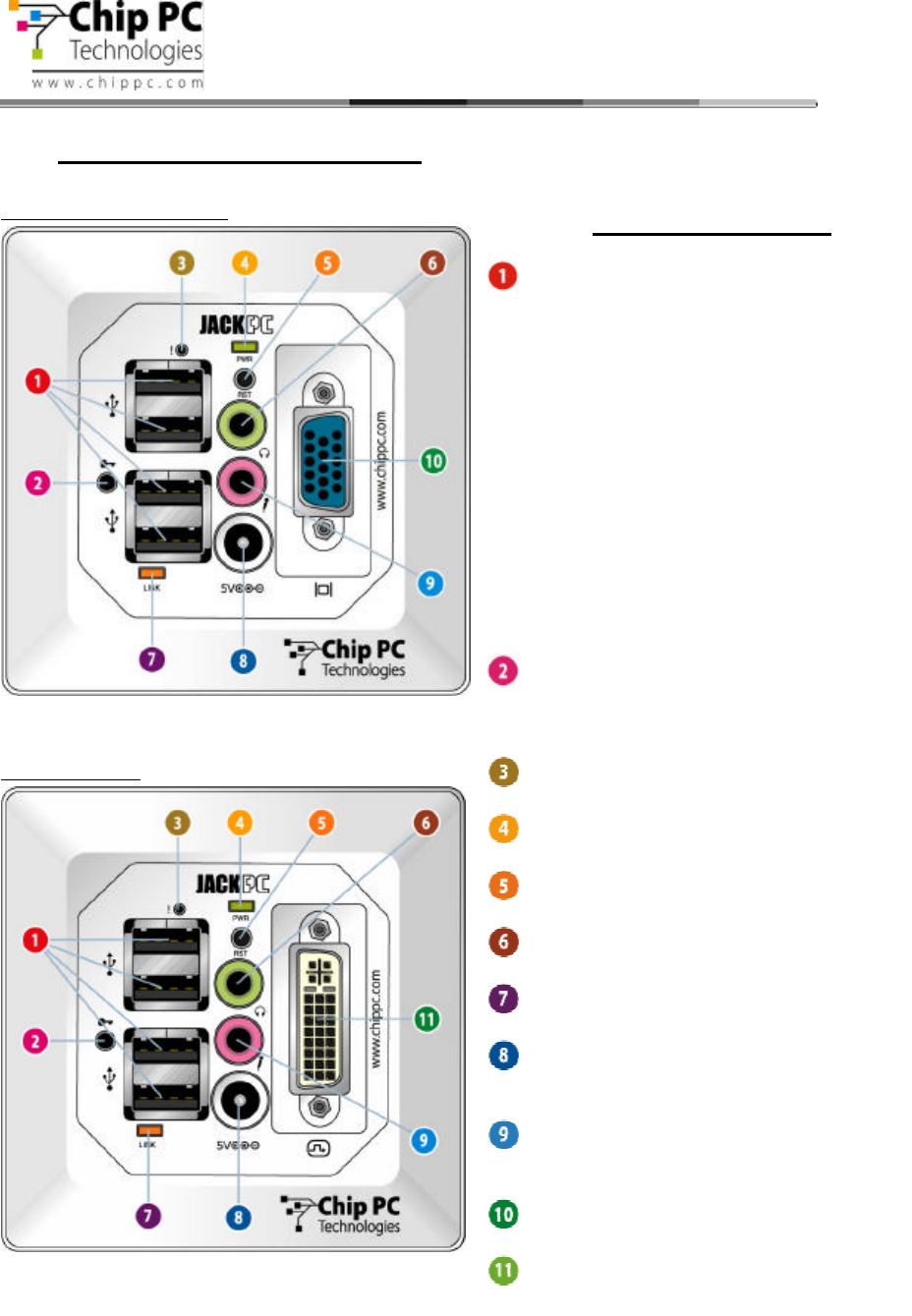

3.3 Identifying the Parts of the Jack-PC
Model EFI-6700 and 6800
Model EFI-6900
4 USB 2.0-compatible ports that can be
used for:
• Standard USB keyboard* including most
wireless models
• Standard USB mouse* including most
wireless models
• USB printers*
• External USB PC/SC Smart Card
Reader
• External mass-storage devices, such as
USB Flash Key, CD, Floppy, DVD,
Camera etc.
* In case a USB-to-PS/2 converter or USB-
to single/dual Serial ports adapter (to
support serial printers) is needed,
purchase it only from Chip PC to insure
compatibility. (See Accessories list)
Extraction Point – insert Extraction tool
(latch) and turn it clockwise to remove
installed device
“Reset-to-Factory-Default” (RFD) Push
Button.
“Power/Fail” LED
“Reset” Button
Audio-Out 3.5 mm Jack for standard
speakers, headset or multimedia systems
“LAN Link & Activity” LED
DC Power Jack for wall-mounted power
supply, where no PoE available - the
device may be powered externally
Audio-In 3.5 mm Jack for standard
computer microphone
Analog Monitor Port
DVI-I Monitor Port. Supports Dual-
