8
• Use the supplied audio cables to connect AUDIO IN
jacks to the corresponding audio output jacks on the
TV, VCR or other audio/visual components.
• Use the audio cables to connect AUDIO OUT jacks to
the corresponding audio in jacks on the TV, CD or
TAPE recorder.
• Connect the S-VIDEO OUT jack to the S-Video input
jack on the TV using a S-Video cable (not included).
• Connect the VIDEO OUT jack to the Video input jacks
on the TV using a video cable.
• Connect the AUX2 jacks to any audio/video device
using Audio/Video cables
• Connect the SCART OUT jack to the TV with corre-
sponding input (if available).

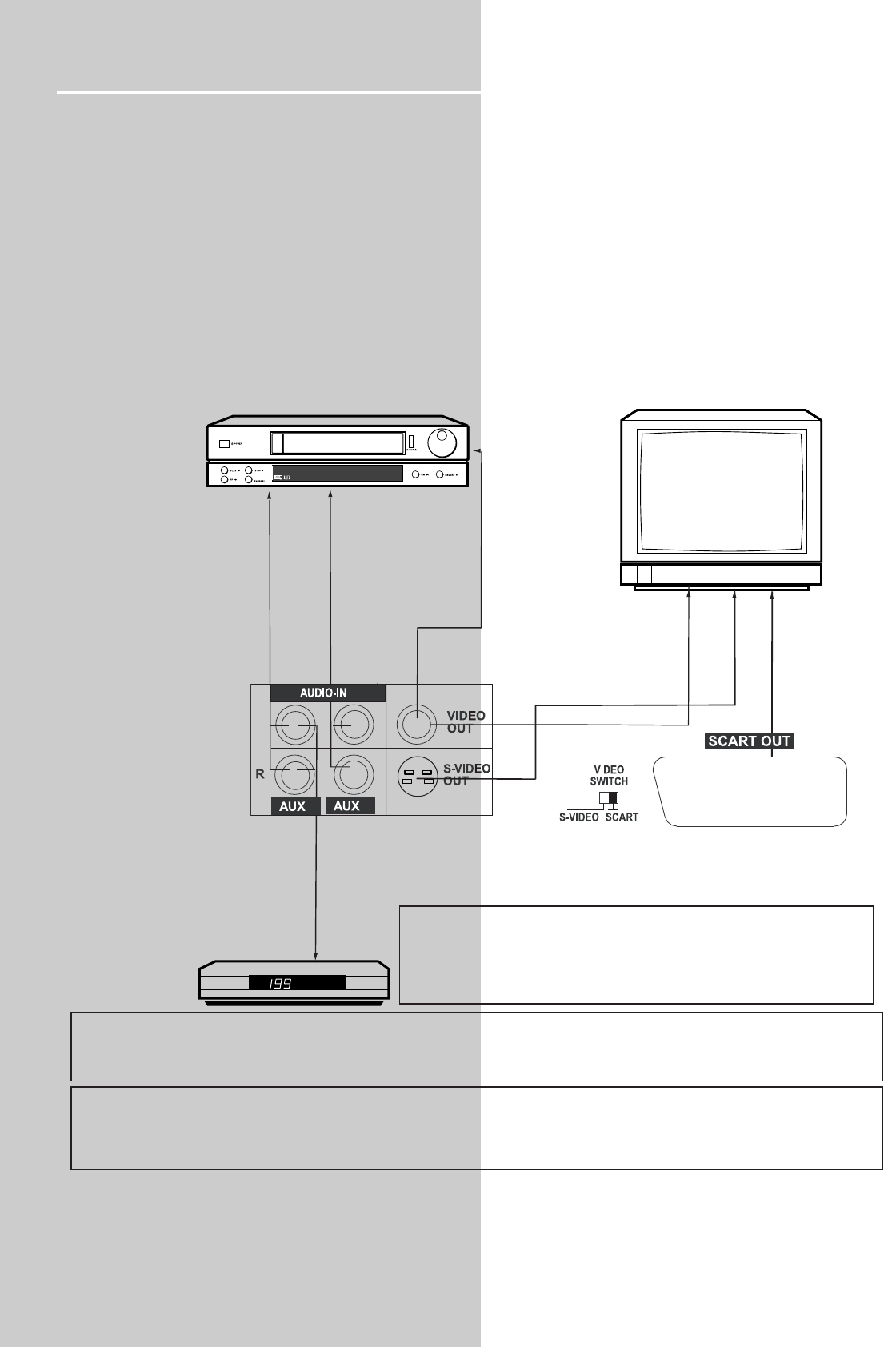

Connecting to TV and additional components
Connections
TV
TO VIDEO IN (VCR)
TO AUDIO IN (VCR)
SAT
TO AUDIO OUT (VCR)
TO AUDIO OUT (SAT)
VCR
S-VIDEO
S-video provides a better connection for the video portion of the signal
than composite video (yellow color terminal). When connecting S-video
cable, a Composite video cable (yellow RCA connector) must also be
used. S-video provides video output for DVD playback only.
VIDEO IN (TV)
S-VIDEO IN
(TV)
SCART IN (TV)
SCART video output
SCART video terminal provides the best quality for video signal. If there is no SCART socket is available on your TV set,
check whether your TV has another Video socket (Composite, S-video) that you can use to connect your player.
(If available)
L
1
Setup video output
You can select either S-video or SCART as your video output, then you must turn off and on the unit to validate selection.
When S-video output is selected, only S-video and composite output will function properly.
When SCART output is selected, only composite output will function properly.
2
