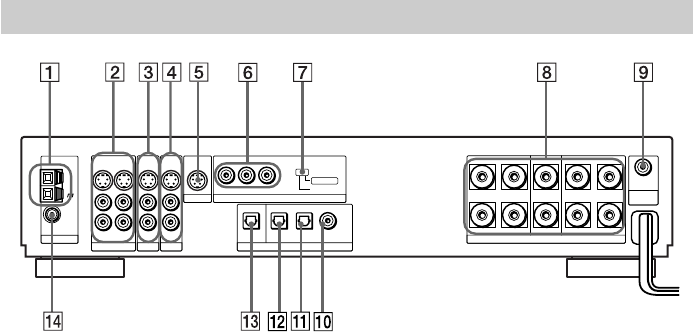

Panneau arrière
COAXIAL
S VIDEO S VIDEO
ANALOG ANALOG
OUT OUTIN
OUT IN
OUT
ANALOG
FRONTCENTER
AM
L
R
FM
75
ANTENNA
SPEAKERS
IMPEDANCE USE 6–16
SUB
WOOFER
YP
B
/C
B
P
R
/C
R
IN
IN
S VIDEO S VIDEO
OUT
OPTICAL
MD/DAT
OPT IN
TV/SAT
OPT IN
AUX
COAX IN
ANALOG
IN
IN
VIDEO
TV/SAT
DIGITALAUX
COMPONENT VIDEO OUT
MONITOR
INTERLACE
SELECTABLE
SCAN SELECT
LR
SURROUND
LR
+
1 Antenne AM (20)
2 Prises VIDEO (S VIDEO/ANALOG L/
R IN/OUT) (22)
3 Prises TV/SAT (S VIDEO/ANALOG L/
R IN) (22)
4 Prises AUX (S VIDEO/ANALOG L/R
IN)
5 Prise MONITOR (S VIDEO OUT) (22)
6 Prises COMPONENT VIDEO OUT
(22)
7 Commutateur COMPONENT VIDEO
OUT (67, 72)
8 Prises SPEAKERS (enceintes) (18)
9 Prise SUB WOOFER (ANALOG OUT)
jack (18)
0 Prise DIGITAL (AUX COAX IN)
qa Prise DIGITAL (TV/SAT OPT IN)(23)
qs Prise DIGITAL (MD/DAT OPT IN)
qd Prise DIGITAL (OPTICAL OUT)
qf Prise d’antenne FM 75 COAXIAL
(sortie FM coaxiale 75) (20)
