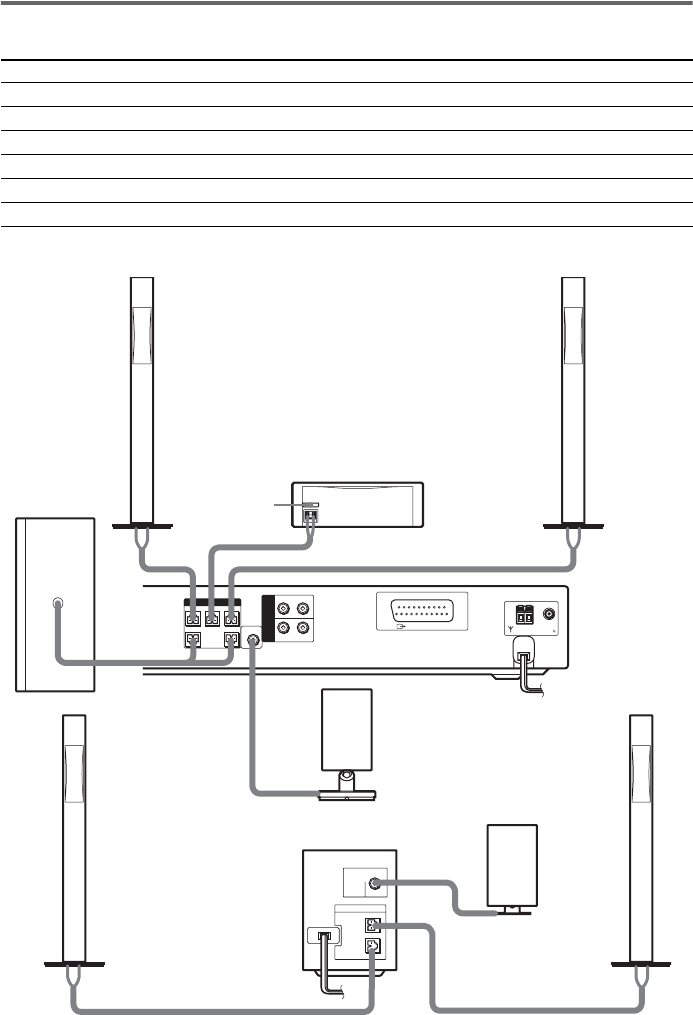

Terminals for connecting the speakers
Connect the To the
Front speakers SPEAKER FRONT L (white) and R (red) jacks of the system
Center speaker SPEAKER CENTER (green) jack of the system
Subwoofer SPEAKER WOOFER (purple) jacks of the system
Surround speakers SPEAKER SURR L (blue) and R (gray) jacks of the surround amplifier
IR transmitter DIR-T1 (pink) jack of the system
IR receiver DIR-R1 (light blue) jack of the surround amplifier
FRONT L
WOOFER
CENTER
SPEAKER
FRONT R
WOOFER
OUTPUT(TO TV)
EURO AV
AUDIO IN
L
R
AUDIO IN
L
R
VIDEO
SAT
COAXIAL
AM
FM
75
DIR-T1
DIR-R1
SPEAKER
SURROUND
L
SURROUND
R
Front speaker (R)
Center speaker
Front speaker (L)
Surround speaker (R)
Subwoofer
Surround speaker (L)
Color label
IR transmitter
IR receiver
Surround amplifier
