3
CONNECTIONS

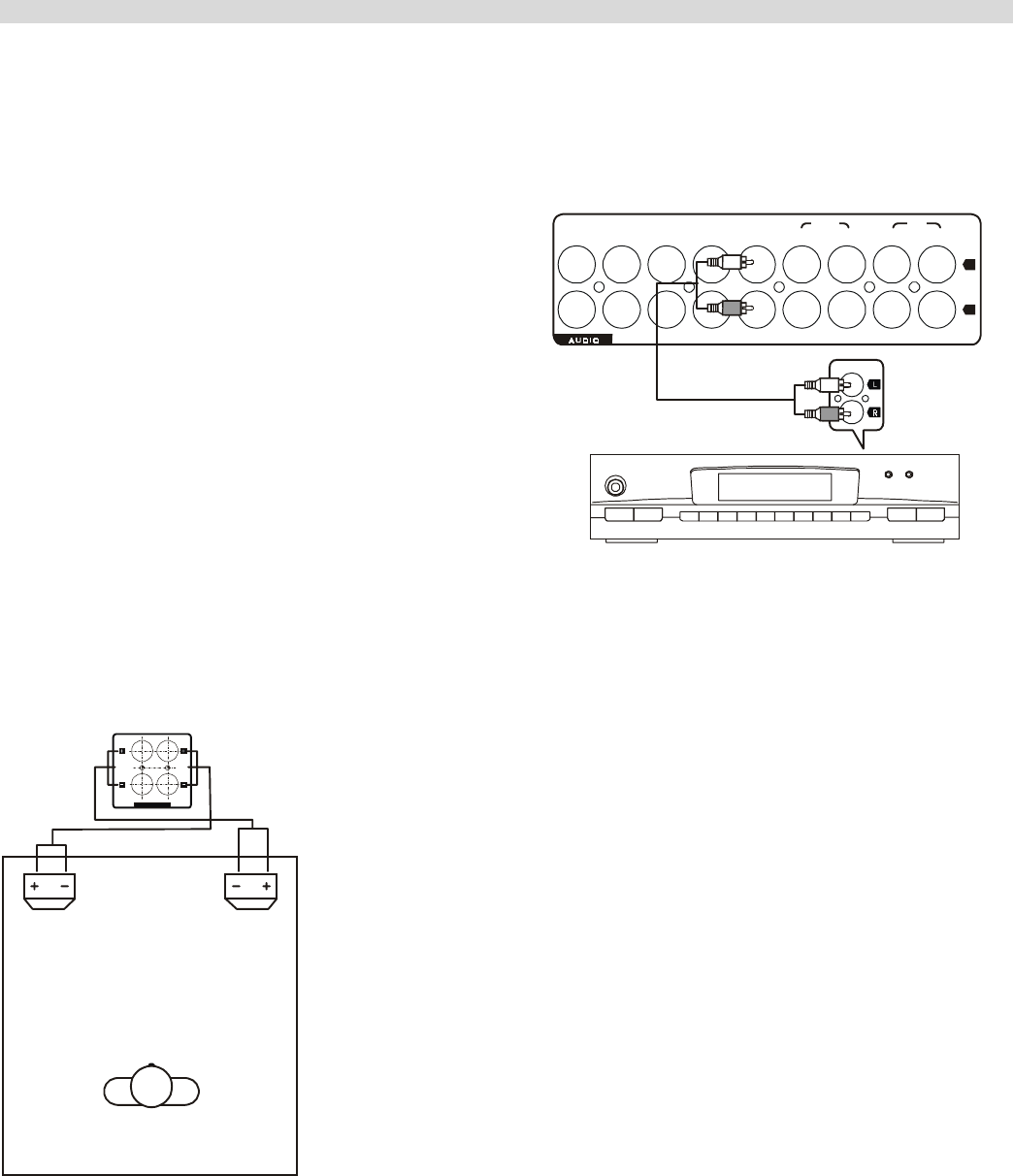

Speaker connection
Connect the speaker systems to the SPEAKERS terminals
on the rear panel of the unit with the speaker cords.
When viewed from the front (the listening position), the
speaker mounted on the left should be connected to the L
terminals, and the speaker mounted on the right should be
connected to the R terminals. Be sure to connect the
polarities of the speaker systems and the SPEAKER
terminals correctly (+ to +, - to -). If the polarity of one of
the speaker systems is connected improperly, sound in the
central area between the speakers will appear to be missing,
and the position of the instruments will not be clear,
resulting in a loss of stereo directionality; so take care
when connecting.
* When connecting, do not allow the conductor of the
speaker cords to be exposed from the terminals and come
into connect with other terminals.
Front Left
Front Right
_
L
RIGHT LEFT
_
SPEAKERS6~8
Ω
Tuner
Connect the TUNER terminals to the OUTPUT terminals
on the tuner using the pin-plug cord.
OUTPUT
PHONO CD AUX VIDEO TUNER RECPLAY
TA PE
PLAY REC
EQ
L
R
