2
CONNECTIONS
Connection precautions
When connecting, either disconnect the power plug
from the power outlet or turn off the unit’s power
using the POWER switch.
Check the left and right channels and connect properly
(Left to L and Right to R).
Insert the plugs securely. Improper connection can lead
to the generation of noise.

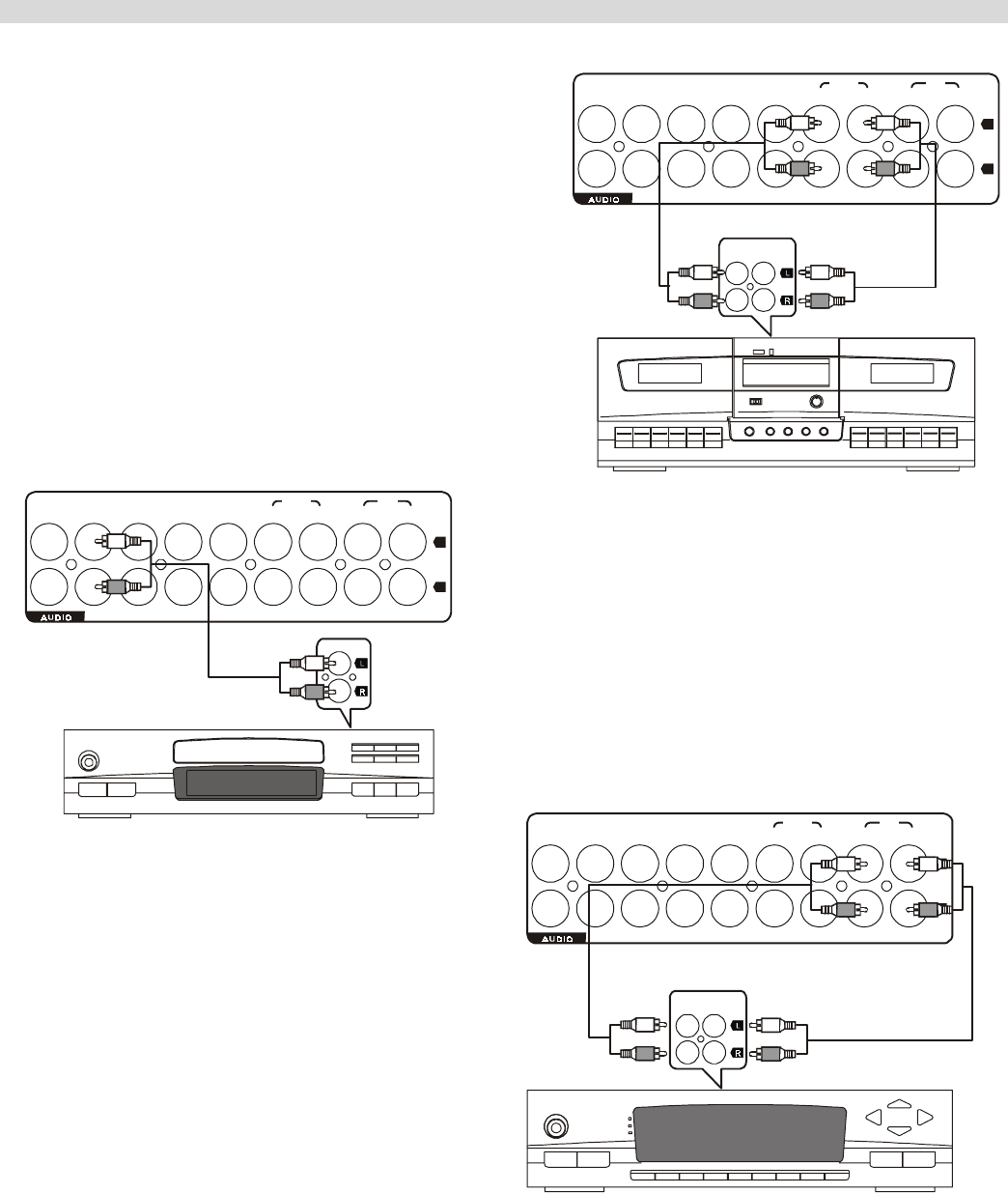

Compact disc player
Connect the CD terminals to the OUTPUT terminals on the
compact disc player using the pin-plug cord.
PHONO CD AUX VIDEO TUNER RECPLAY
TA PE
PLAY REC
EQ
L
R
OUTPUT
CD/AUX terminals
These terminals have an electrical performance which is
equivalent to that of the CD terminals and the TUNER
terminals which means that they can be used as the audio
output terminals for a video disc player or TV tuner.
Connect these terminals to the OUTPUT terminals on the
component using the pin-plug cord.
TAPE Deck
Recording connections: Connect the TAPE REC
terminals to the input (LINE IN) terminals on the tape deck
using the pin-plug cord.
Playback connections: Connect the TAPE PLAY
terminals to the output (LINE OUT) terminals on the
cassette deck using the pin-plug cord.
LINE
(IN) REC
PHONO CD AUX VIDEO TUNER RECPLAY
TA PE
PLAY REC
EQ
L
R
PLAY(OUT)
PROCESSOR terminals
These terminals are used to connect a graphic equalizer or
sound processor. They also come in handy for connecting
an AV (audio/video) selector unit.
Use pin-plug cords to connect the REC terminals to the
INPUT terminals on the selected component and also to
connect the PLAY terminals to its OUTPUT terminals.
LINE
PHONO CD AUX VIDEO TUNER RECPLAY
TA PE
PLAY REC
EQ
L
R
(IN) REC PLAY(OUT)
