G-3

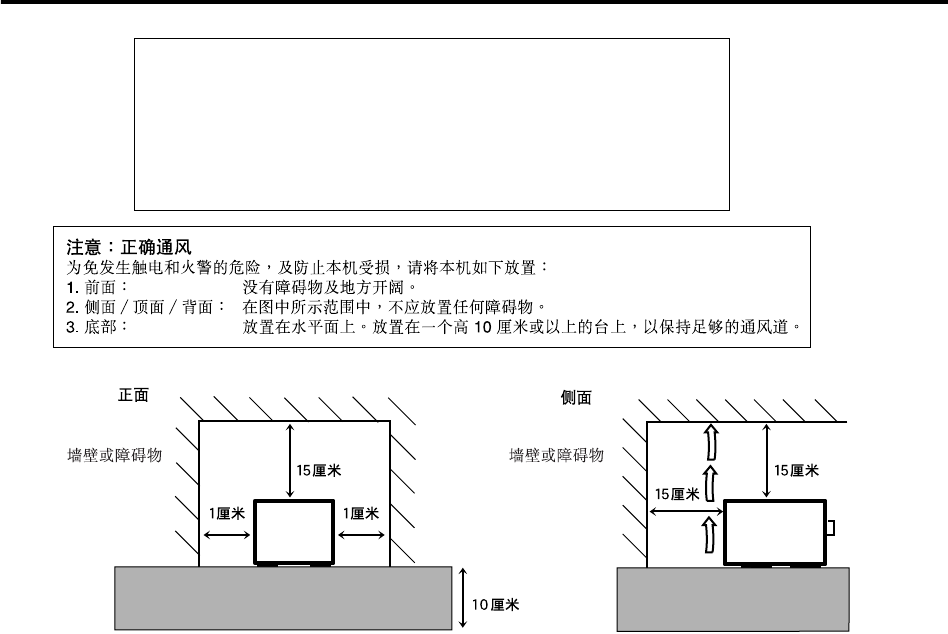

Caution: Proper Ventilation
To avoid risk of electric shock and fire, and to prevent damage, locate the
apparatus as follows:
1. Front:No obstructions and open spacing.
2. Sides/Top/Back:No obstructions should be placed in the areas shown by the
dimensions below.
3. Bottom:Place on the level surface. Maintain an adequate air path for
ventilation by placing on a stand with a height of 10 cm or more.
CA-EXD5 CA-EXD5
15 cm
10 cm
1 cm
1 cm
15 cm
15 cm
Front view Side view
Wall or obstructions Wall or obstructions
