Speakers/Subwoofer

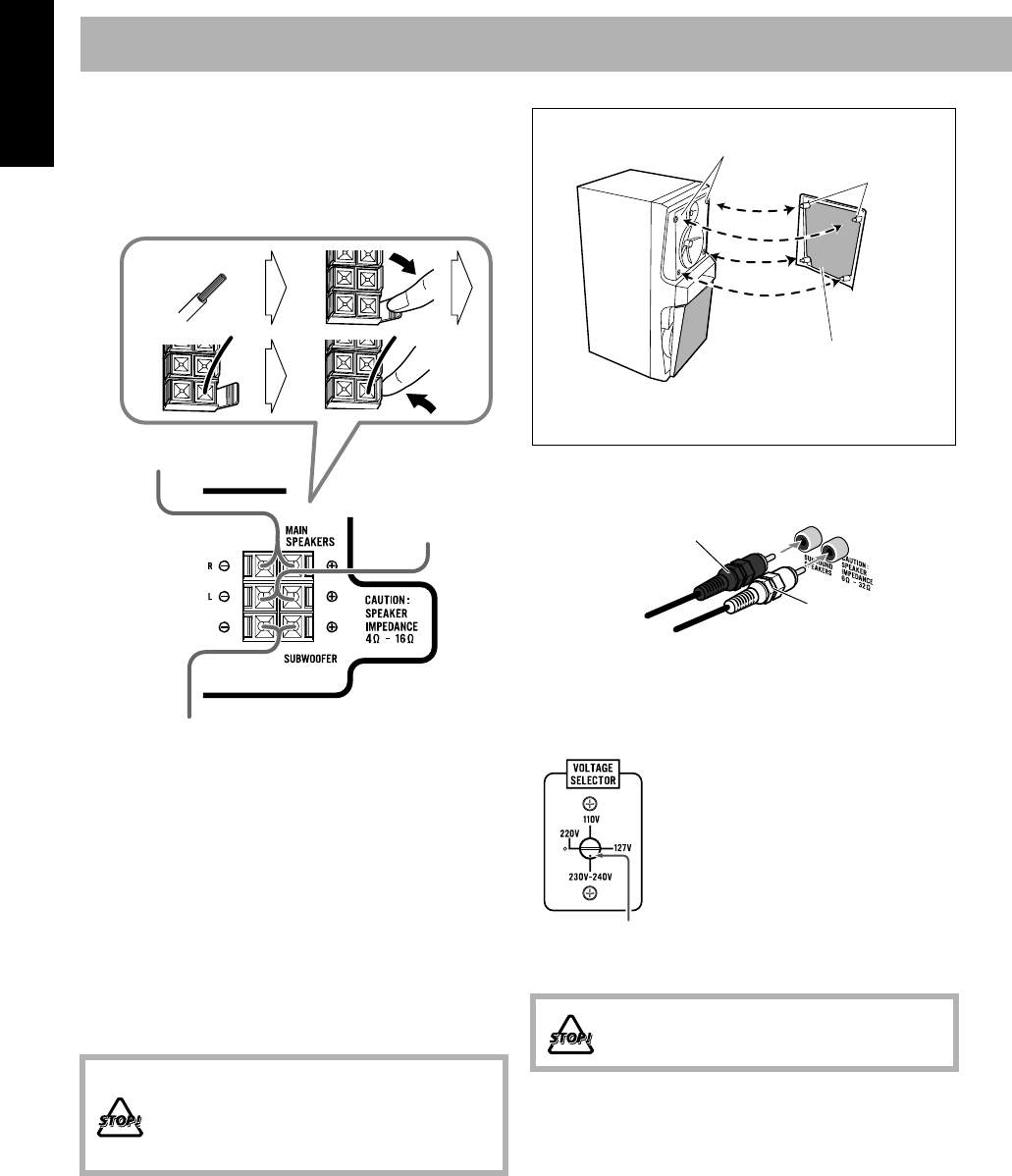

To connect the speaker cords
• When connecting the speaker cords, match their polarity
with that of the speaker terminals: red/blue to (+) and black
to (–).
• Use only speakers with the same speaker impedance as
indicated by the speaker terminals on the rear of the System.
• The front speakers are magnetically shielded to avoid color
distortions on TVs. However, if not installed properly, it
may cause color distortions. So, pay attention to the
following when installing the speakers.
– When placing the speakers near a TV set, turn off the
TV’s main power switch or unplug it before installing the
speakers.
Then wait at least 30 minutes before turning on the TV’s
main power switch again.
Some TVs may still be affected even though you have
followed the above instruction. If this happens, move the
speakers away from the TV.
¤
Surround speakers
#
To adjust the voltage selector
• DO NOT connect more than one speaker to
each terminal.
• DO NOT push or pull the speakers as this
will damage the foot spacers at the bottom
of the speakers.
12
34
From right front main
speaker
From left front
main speaker
From subwoofer
To remove the speaker grilles of the main speakers
• The speaker bottom grille is not detachable.
Do not try to remove it as this may damage it.
Use a screwdriver to rotate the
voltage selector so that the voltage
mark is pointing at the same voltage
as where you are plugging in the unit.
(See also the back cover page.)
DO NOT plug in before setting the voltage
selector and all connection procedures are
completed.
Holes
Speaker grille
Projection
From the right surround
speaker (not supplied)
From the left surround
speaker (not supplied)
Voltage mark
