MODEL 396P and 396PVP SECTION 3.0
WIRING - MODEL 396P
Wiring. The Model 396P has an optional built-in pre-
amplifier and is offered with a shielded cable. The
cable should be handled carefully and kept dry and
free of corrosive chemicals at all times. Extreme care
should be used to prevent it from being twisted, dam-
aged or scraped by rough, sharp edges or surfaces.
Please refer to Figures 3-1 through 3-6 for wiring
Model 396P-01.

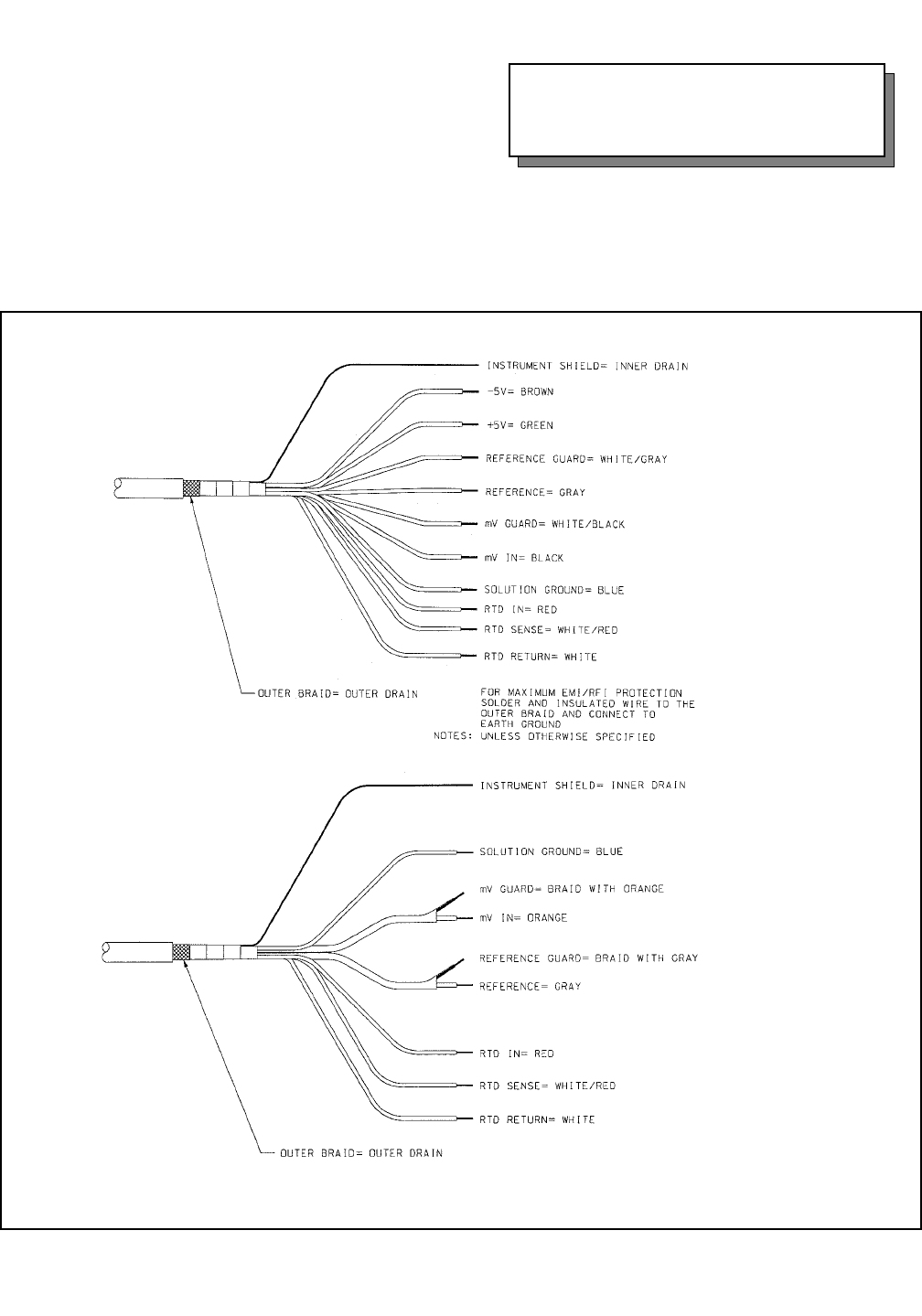

FIGURE 3-1. Wire Functions for Model 396P with and without Preamplifier
DANGER
DO NOT CONNECT SENSOR CABLE TO
POWER LINES. SERIOUS INJURY MAY
RESULT.
Model 396P
Option 01 (with
preamplifier) cable
Model 396P
Option 02 (without
preamplifier) cable
NOTE
Remove electrical tape or shrink sleeve from gray
reference wire before connecting wire to terminal.
