4. User Controls
3.6 Safety Cover Installation
Procedure:

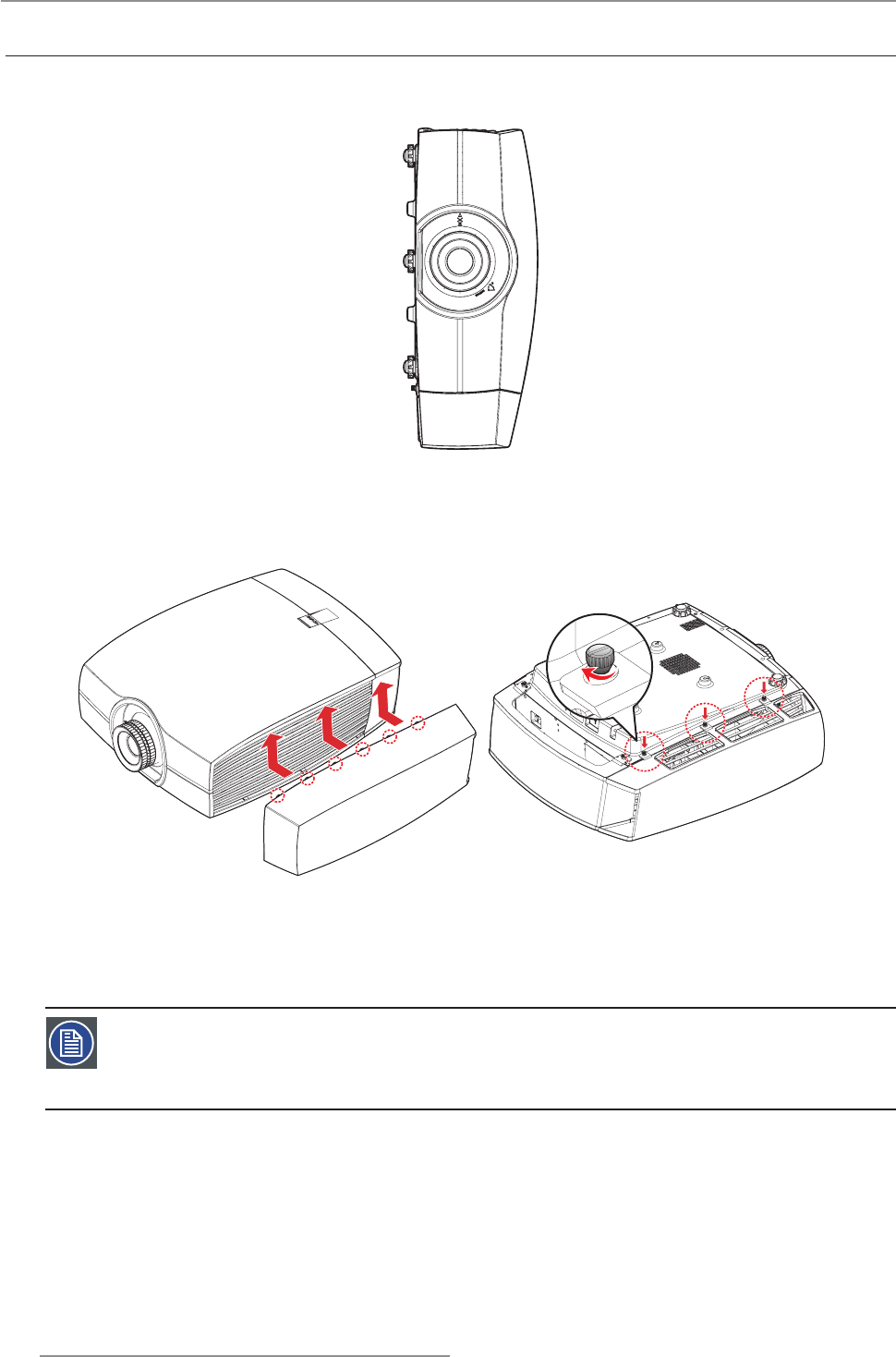

Align and hook the safety cover to the side of the projector, as shown in the illustration below.1.
Push the safety cover upwards until it locks into place.2.
Gently ip the projector over so that its bottom panel is facing up.3.
Fix the screws to secure the safety cover to the projector.4.
By installing a safety cover (optional part), the projector can be mounted vertically to display images in portrait
orientation.
Notes:
When the projector is in protrait orientation. The OSD will not be able to rotate accordingly and the lens y
shift will be same as table/ceiling installation direction.
To remove the safety cover, reverse the previous step. y
