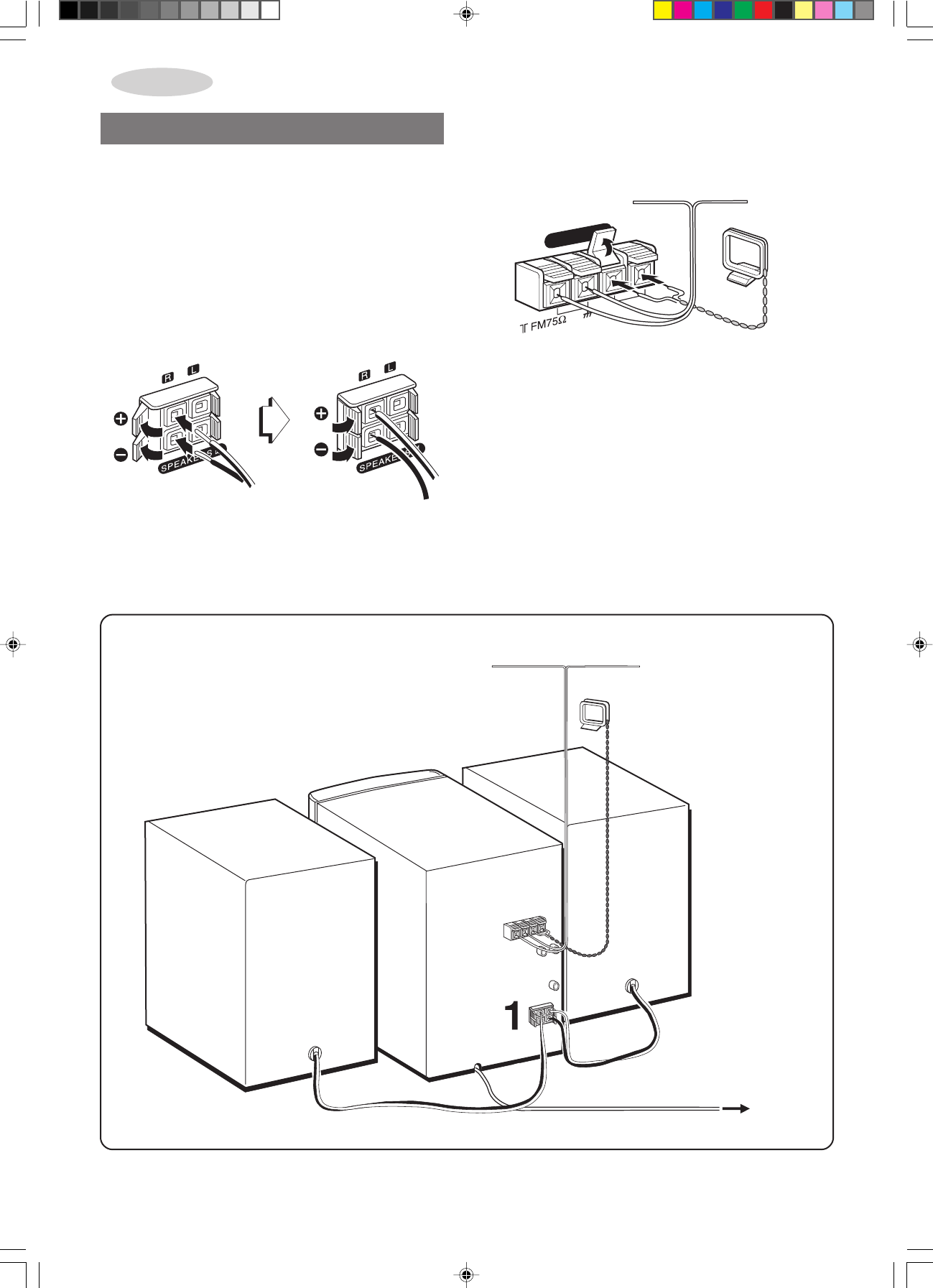

CONNECTIONS
PREPARATIONS
Before connecting the AC cord
The rated voltage of your unit shown on the rear panel is 120 V
AC. Check that the rated voltage matches your local voltage.
IMPORTANT
• Connect the speakers, antennas, and all optional equipment
first. Then connect the AC cord.
• Both speakers can be connected as L (Left) or R (Right).
1
Connect the speaker cord to the main unit.
The speaker cord with the white stripe should be connected
to 0 terminal and the black cord to the 9 terminal.
2
Connect the supplied antennas.
Connect the FM antenna to FM 75 Ω terminals and the AM
antenna to AM LOOP terminals.
ANTENNA
AM LOOP
3
Connect the AC cord to an AC outlet.
• The Demo will begin when the AC cord is plugged into an
AC outlet. See page 5 “DEMO” for details.
2 FM antenna
2 AM antenna
Right speaker
Left speaker
XR-M150
Speaker cord
AC cord
3
AM antenna
FM antenna
