246815-YTG-D-0108
2 Unitary Products Group
Annual Fuel Utilization Efficiency (AFUE) numbers are determined in accordance with DOE Test procedures.
Wire size and over current protection must comply with the National Electrical Code (NFPA-70-latest edition) and all local codes.
The furnace shall be installed so that the electrical components are protected from water.
C
19-1/4
1-1/4
1-1/4
5/8
5/8
23-5/8
D
2-1/4
23-1/4
20
B
BOTTOMIMAGE
SUPPLYEND
TOPIMAGE
RETURNEND
LEFTSIDE
RIGHTSIDE
22-3/4
7/8
7/8
13-7/8
HORIZONTALCONDENSATE
DRAINOPENING2”
JUNCTIONBOX
HOLE7/8”
GASPIPEENTRY1-1/2”
CONDENSATEDRAIN
HOLE7/8”
SIDEPIPINGHOLE3-3/8”
T-STATWIRING7/8”K.O.
HORIZONTALCONDENSATE
DRAINOPENING1-3/4”
22-1/4
25-3/8
26-1/2
27-1/8
29
22-3/4
21-5/8
18-1/2
11-3/4
7-1/2
2-1/4
T-STATWIRING7/8”K.O.
HORIZONTALCONDENSATE
DRAINOPENING1-3/4”
HORIZONTAL
CONDENSATE
DRAINOPENING1-3/4”
JUNCTIONBOX
HOLE7/8”
GASPIPE
ENTRY1-1/2”
CONDENSATEDRAIN
HOLE7/8”
29
22-3/4
21-1/4
18-1/2
9-1/8
8-1/2
30-1/8
23-11/16
E
FRONT
A
40

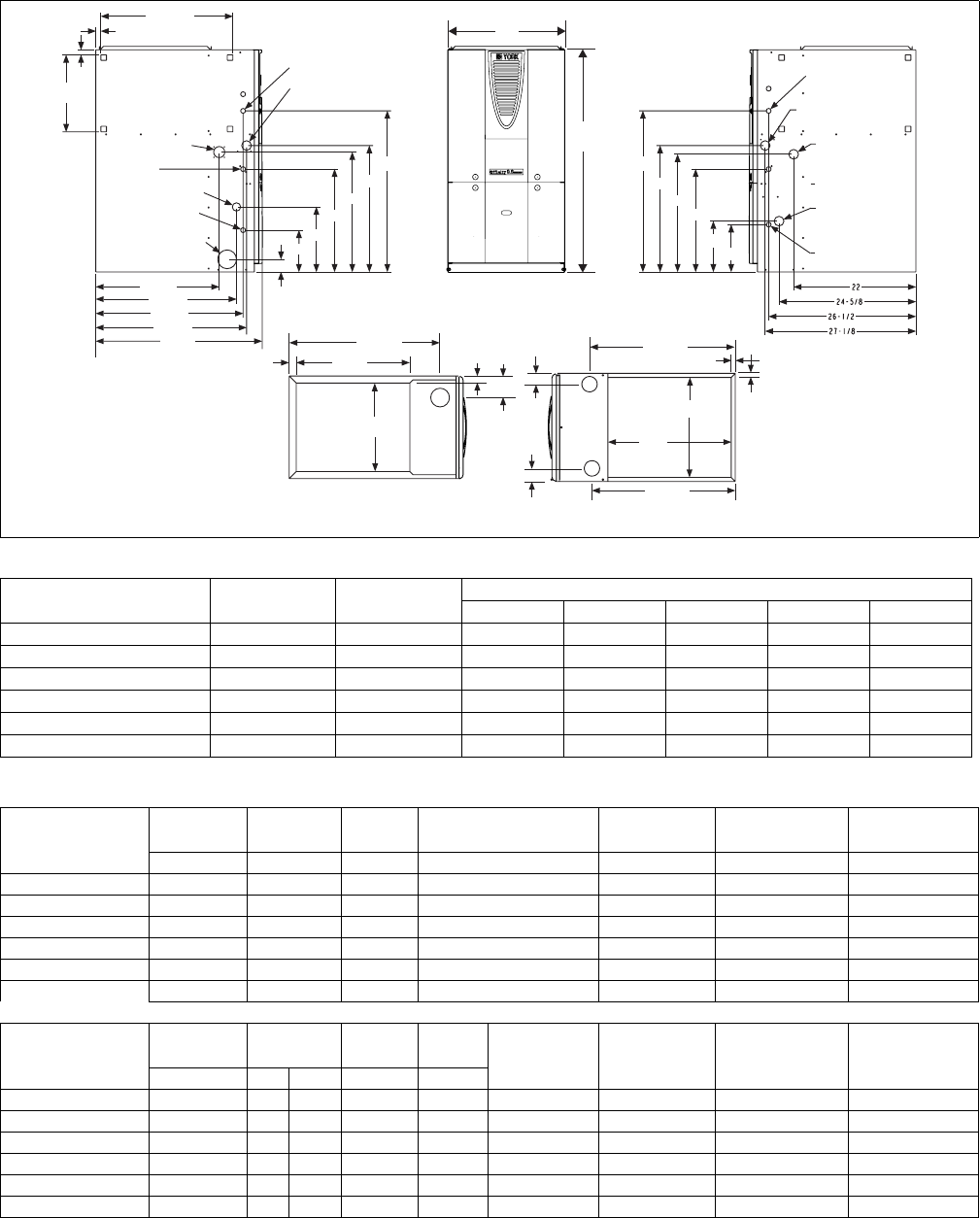

DIMENSIONS
Models CFM
Cabinet
Size
Cabinet Dimension
A (in.) B (in.) C (in.) D (in.) E (IN.)
PC9B12N060DH11 1200 B 17-1/2 16-1/4 15 1-3/4 2-3/8
PC9B12N080DH11 1200 B 17-1/2 16-1/4 15 1-3/4 2-3/8
PC9C16N080DH11 1600 C 21 19-3/4 18-1/2 2-1/8 2-3/4
PC9C16N100DH11 1600 C 21 19-3/4 18-1/2 2-1/8 2-3/4
PC9C20N100DH11 2000 C 21 19-3/4 18-1/2 2-1/8 2-3/4
PC9D20N120DH11 2000 D 24-1/2 23-1/4 22 2-1/2 3
ELECTRICAL AND PERFORMANCE DATA
Models
Input
Max/Min
Output
Max/Min
Nominal
Airflow
Cabinet Width AFUE
Air Temp. Rise
Maximum Input
Air Temp. Rise
Minimum Input
MBH MBH CFM In. % °F °F
PC9B12N060DH11 60 / 21 57 / 20 1200 17-1/2 95.0 40 - 70 20 - 50
PC9B12N080DH11 80 / 28 76 / 26 1200 17-1/2 95.0 40 - 70 20 - 50
PC9C16N080DH11 80 / 28 76 / 26 1600 21 95.0 40 - 70 20 - 50
PC9C16N100DH11 100 / 35 95 / 33 1600 21 95.0 40 - 70 20 - 50
PC9C20N100DH11 100 / 35 95 / 33 2000 21 95.0 40 - 70 20 - 50
PC9D20N120DH11 120 / 42 115 / 39 2000 24-1/2 95.0 40 - 70 20 - 50
Models
Max. Outlet
Air Temp.
Blower
Blower
Size
Total
Unit
Max.
Over-current
Protect
Min. Wire Size
(awg) @ 75 ft.
One Way
Approximate
Operating
Weight
Power Supply
(Voltage-PH-Hz
°F HP Amps In. Amps
PC9B12N060DH11 170 1/2 7.7 11 x 8 9 20 14 136 115-1-60
PC9B12N080DH11 170 1/2 7.7 11 x 8 9 20 14 143 115-1-60
PC9C16N080DH11 170 3/4 9.6 11 x 10 12 20 14 159 115-1-60
PC9C16N100DH11 170 3/4 9.6 11 x 10 12 20 14 163 115-1-60
PC9C20N100DH11 170 1 12.8 11 x 11 14 20 12 165 115-1-60
PC9D20N120DH11 170 1 12.8 11 x 11 14 20 12 182 115-1-60
