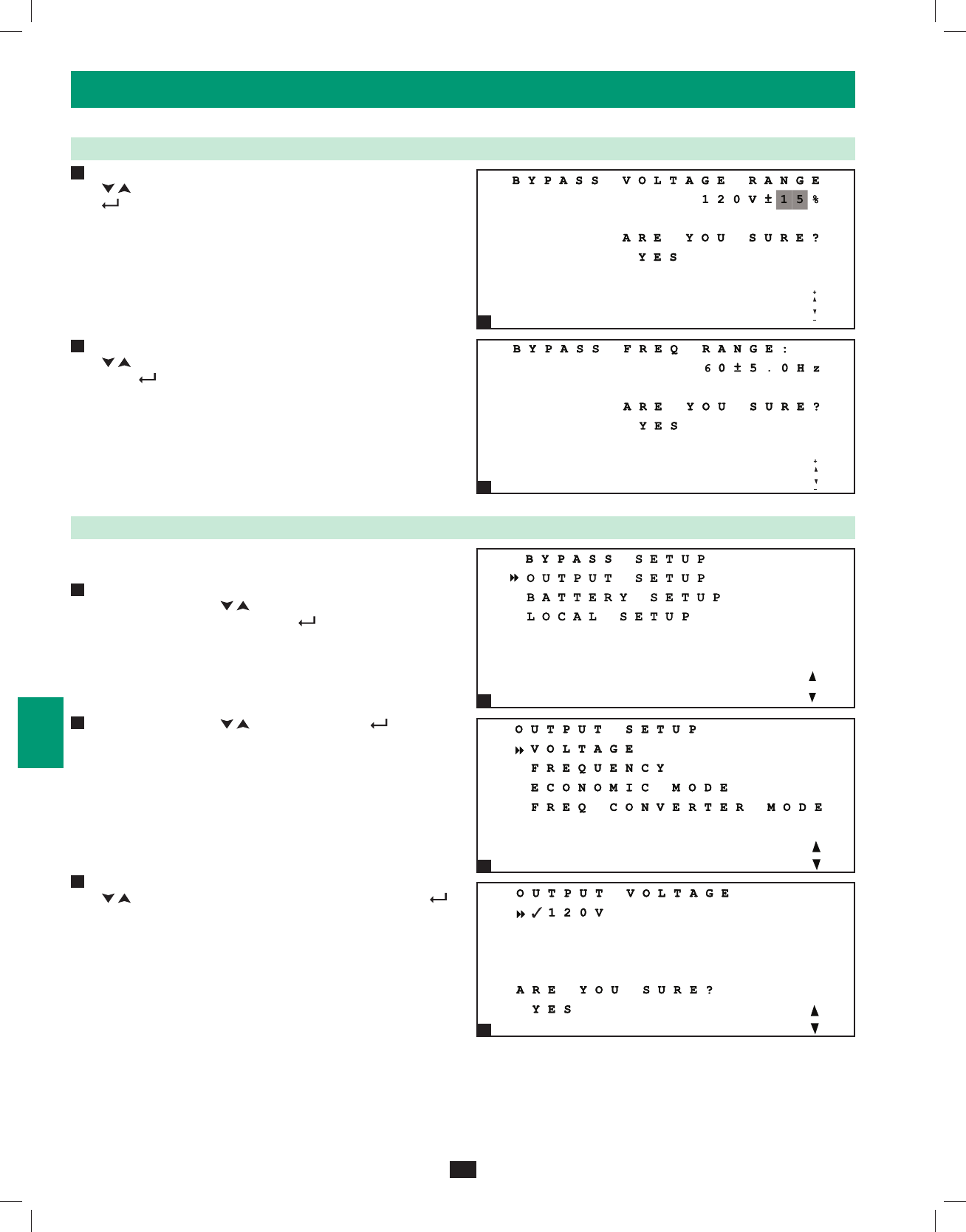

9 – Display and Confi guration (continued)
9-8 Bypass Setup Menu (continued)
From the “VOLTAGE RANGE” screen, use the scroll buttons •
( , ) to select a bypass voltage range and press the enter button
( ) to confirm the setting.
From the “FREQUENCY RANGE” screen, use the scroll buttons •
( , ) to select a bypass frequency range and press the enter
button ( ) to confirm the setting.
Note: Press the “ESC” button to return to the previous menu.
9-9 Output Setup Menu
Note: The UPS system must be in bypass mode to change the output
parameters.
Enter the UPS system setup menu as described in • Section 9-7.
Use the scroll buttons ( , ) to move the cursor to “OUTPUT
SETUP”, then press the enter button ( ).
Use the scroll buttons (• , ) and the enter button ( ) to select
one of the menu choices.
From the “VOLTAGE” screen, use the scroll buttons •
( , ) to select the desired setting and press the enter button ( )
to confirm the setting.
3
1
4
2
3
3
1
4
2
3
