Introduction
Index to Parts and Controls
See pages with arrows for details.
Front panel
1 ON/STANDBY button pages 18, 19
Turns the power on/restores the unit in the
standby mode.
2 ON/STANDBY indicator
page 18, 19
Displays the operational state of the recorder.
3 Remote sensor
page 12 in “INSTALLATION
GUIDE”
4 INPUT 2 jacks
page 78
Use this when recording from other input source
such as a VTR or a camcorder.
5 Operation Status Indicator (HDD)
Indicates the operation status of the HDD.
: Recording
: Playing
: Copying within the disc
6 Three mode button (HDD, TIMESLIP, DVD)
page 28, 30, 71
Selects recording/playback media.
*
The above illustration displays the front panel with the cover open. See the following page on how to open or close the cover.
7 Disc tray page 18
Place a disc to play or record.
8 Operation Status Indicator (DVD)
Indicates the operation status of the DVD.
: Recording
: Playing
: Copying within the disc
9 Open/Close (
) button page 18, 19
Opens and closes the disc tray.
! REC (
) button page 79
Starts recording.
" Pause (
) button page 28, 41
Stops playback or recording momentarily.
# Front panel display
page 16

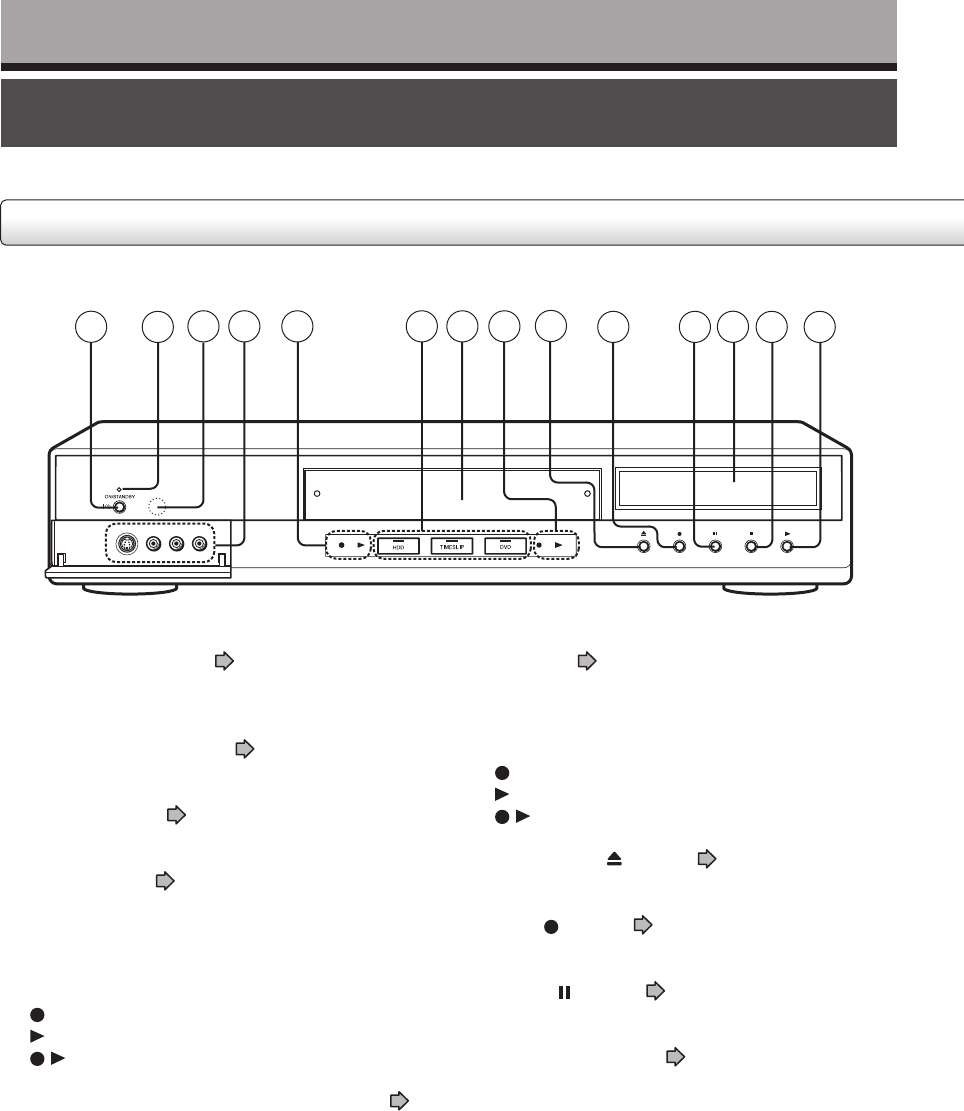

Front panel
1
2
3 4
7 85 6
9
1211 13 1410
