4 Replacement Procedures 4.20 System board
4. Disconnect the DC-IN harness and HDD harness from the connector CN8800 and
CN1900 on the back of the system board.
CN8800
CN1900
HDD harness
DC-IN harness

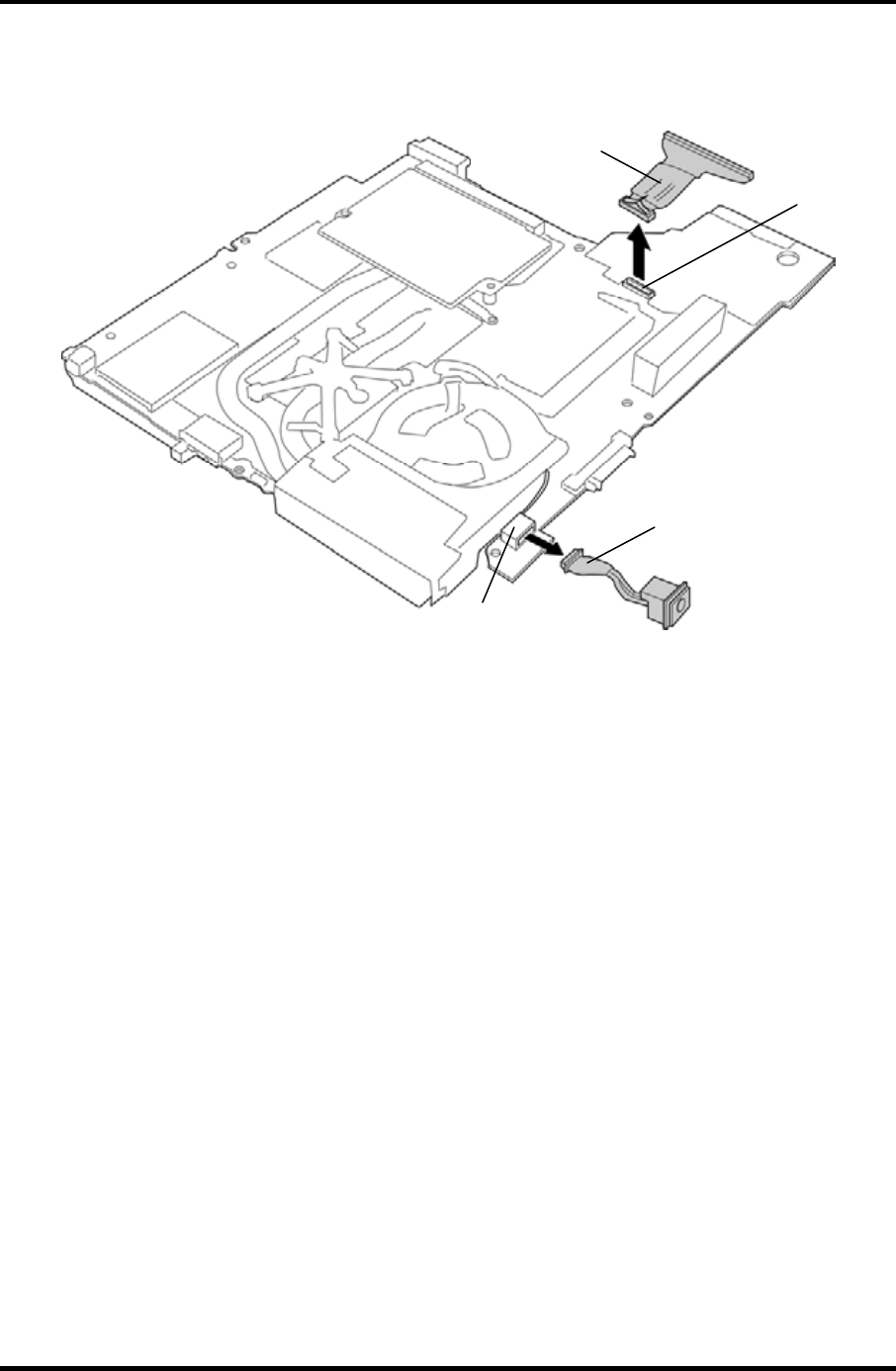

Figure 4-37 Removing the DC-IN harness/HDD harness
4-60 [CONFIDENTIAL] TECRA M10 Maintenance Manual (960-685)
